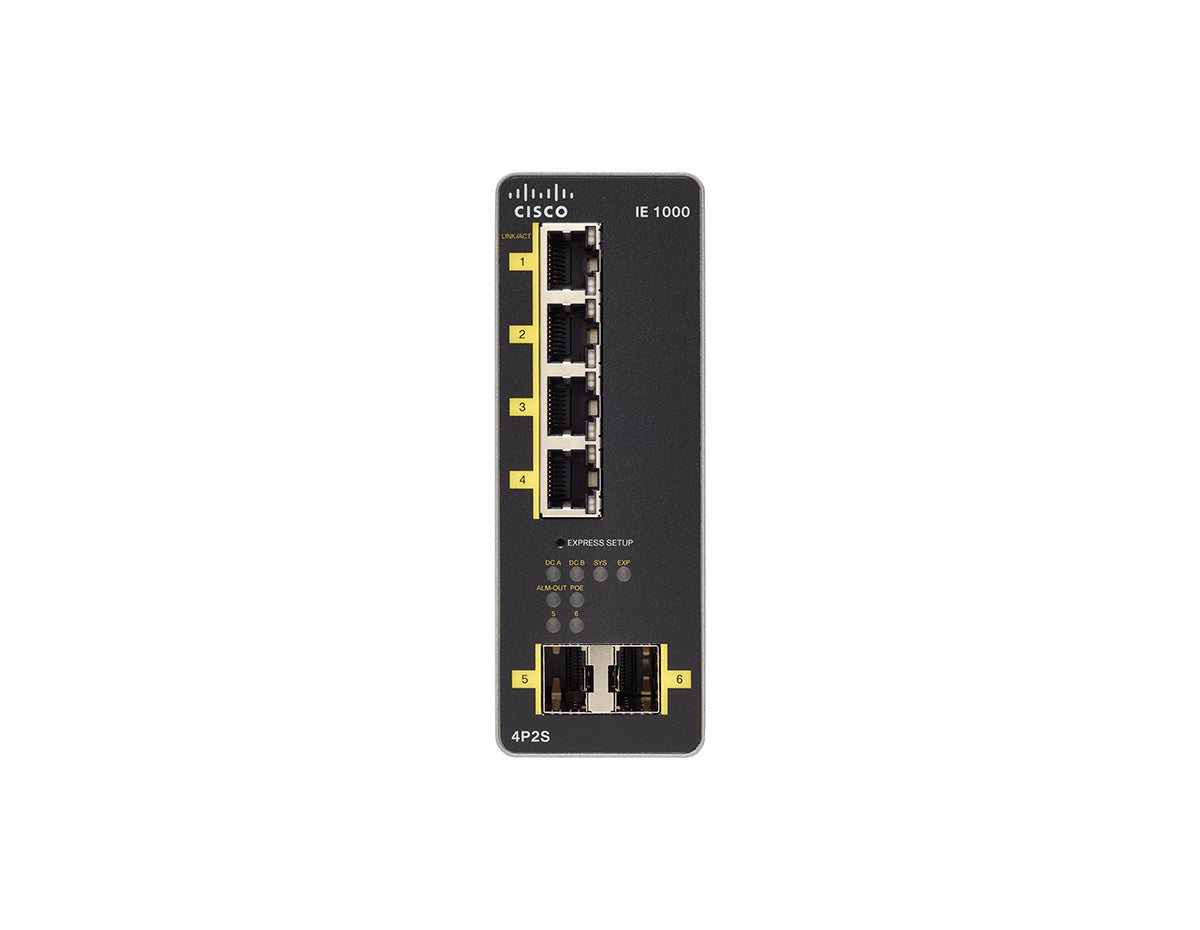

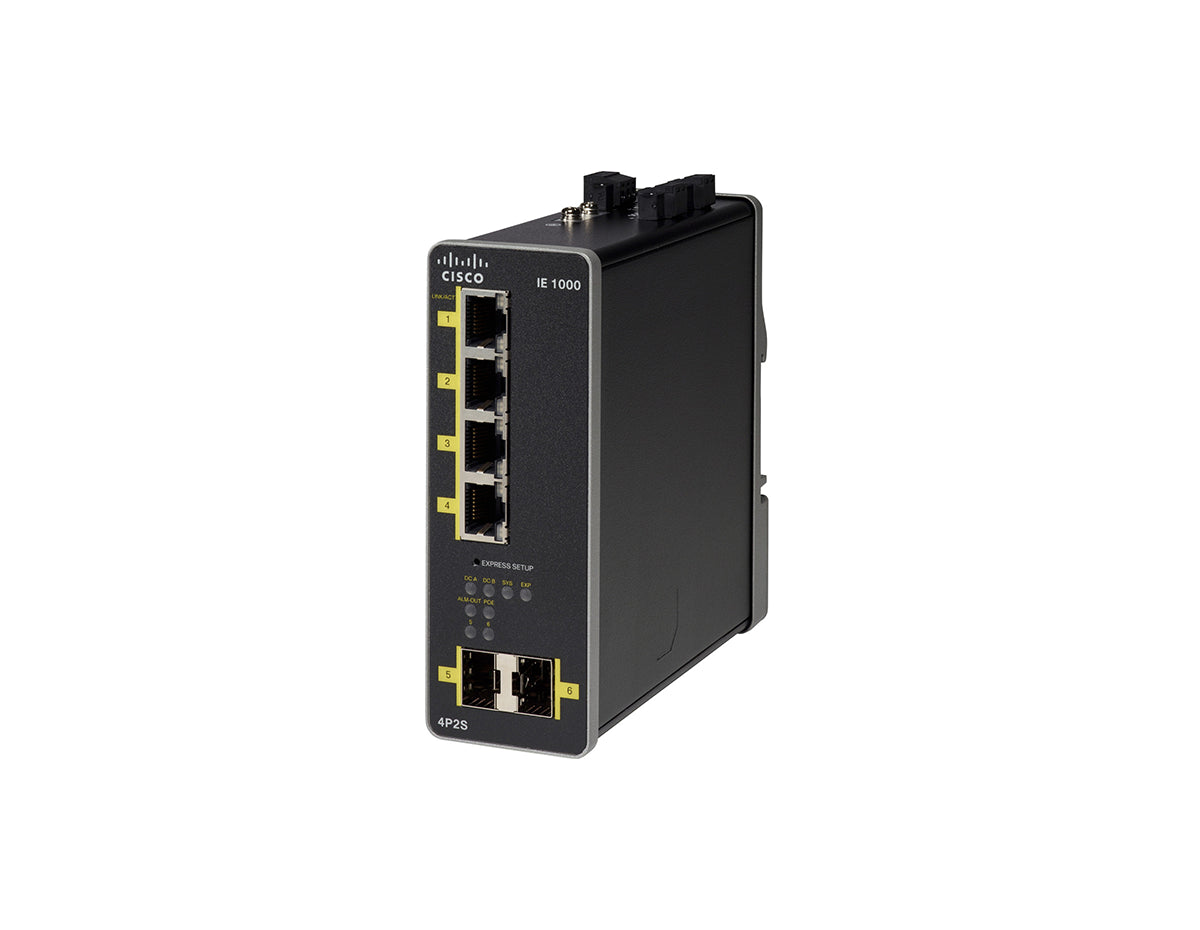

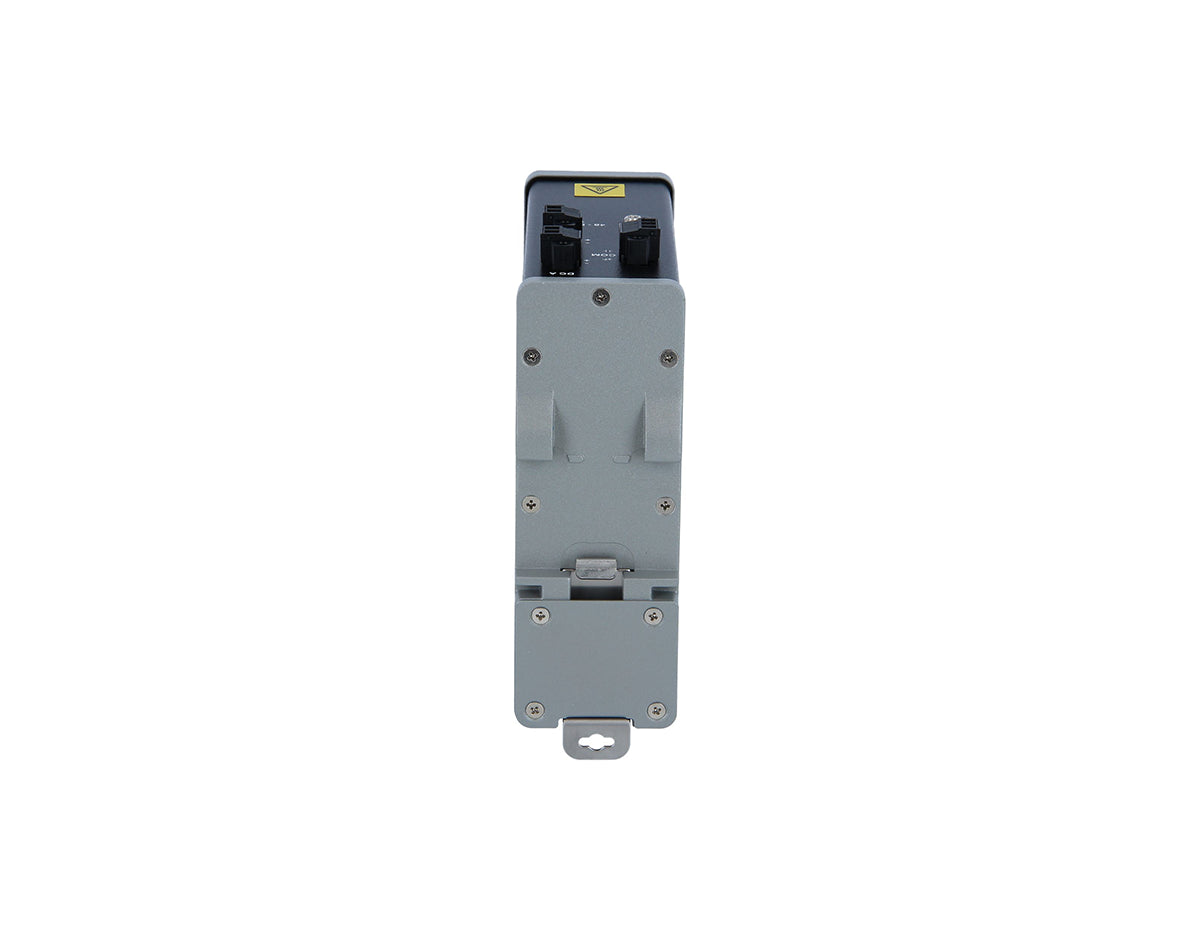

CISCO IE-1000-4P2S-LM SWITCH

Part No:	IE-1000-4P2S-LM
ASIN Number:	B01MF9IR4B
Detail:	Switch , managed, 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink), DIN rail mountable, PoE+, DC power
List Price:	~~US$1,974.39~~
Price:	$695.00
You Save:	$1,279.39 (65% OFF)
Condition:	Brand New Sealed
Availability:	IN STOCK
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Properties
Specifications
Accessories
Shipping

Description

Cisco IE-1000-4P2S-LM Industrial Ethernet Switch

The Cisco IE-1000-4P2S-LM is a compact, ruggedized industrial Ethernet switch designed to deliver reliable network connectivity in harsh environments. This switch features 4 Fast Ethernet PoE ports and 2 Gigabit SFP uplinks, making it ideal for powering and connecting industrial devices such as IP cameras, sensors, and controllers. The IE-1000-4P2S-LM is built to withstand extreme conditions, ensuring continuous network operation in challenging industrial settings, while providing the simplicity of a managed switch with Layer 2 features.

Key Features:

4 x Fast Ethernet PoE Ports: Provides data connectivity and power for industrial devices, supporting Power over Ethernet (PoE) to simplify cabling and installation.
2 x Gigabit SFP Uplinks: Offers high-speed uplink options for reliable connectivity to the network backbone, ensuring efficient data transfer.
Ruggedized Design: Engineered to operate in harsh industrial environments, withstanding extreme temperatures, shock, and vibration.
Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
Compact Form Factor: Designed for space-constrained installations, making it suitable for cabinets and small enclosures.

Technical Overview:

Recommended for: Industrial environments requiring reliable, ruggedized Ethernet connectivity with PoE support.
Ports: 4 x Fast Ethernet PoE ports, 2 x Gigabit SFP uplinks.
PoE Budget: Supports PoE with a maximum budget per port as specified in the datasheet.
Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
Management: Managed through a simple web interface, CLI, and SNMP for easy network setup and monitoring.
Form Factor: Compact, space-saving design for easy installation in industrial environments.

You can check the related tab for the Cisco IE-1000-4P2S-LM datasheet.

Accessories

Power Supplies
PWR-IE50W-AC	50W AC Power Supply
PWR-IE50W-AC-L	50W AC-L Power Supply
PWR-IE65W-PC-AC	65W PC-AC Power Supply
PWR-IE65W-PC-DC	65W PC-DC Power Supply
PWR-IE170W-PC- AC	170W PC-AC Power Supply
PWR-IE170W-PC- DC	170W PC-DC Power Supply
PWR-IE240W-PCAC-L	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L	480W PCAC-L Power Supply
STK-RACK- DINRAIL	19 in. DIN Rail mount kit

Specifications

Specifications	IE-1000-4P2S-LM
DRAM	128 MB DDR2 without ECC
Flash Memory	160 MB
Max. Switching Bandwidth	2.8 Gbps
Max. Forwarding Bandwidth	5.6 Gbps
Alarm	Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC
Power consumption	without PoE 10.6W, with PoE 134.4-205.2W
Connectors and cabling	100BASE-FX MMF (2 km)TBD with engineer input 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40 C to +70 C (vented enclosure operating) -40 C to +60 C (sealed enclosure operating) -34 C to +75 C (fan or blower-equipped enclosure operating)
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 13.8k ft
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Safety Certifications	UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) UL/CSA/IEC/EN 61010-2-201 CE Marking
EMI and EMC compliance	FCC 47 CFR Part 15 Class A EN 55022/CISPR 22 Class A EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC Marking (Korea) CE Marking RCM Marking (Australia/New Zealand) EAC Marking (Eurasian Conformity) Anatel (Brazil) China NAL IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz) IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth) IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m) IEC/EN 61000-4-29 (Voltage Dips Immunity)
Shock and Vibration	EC 60068-2-27 (Operational Shock: 30G 11ms, half sine) IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration) EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration)
Industry Standard	IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 (Emissions for Industrial Environments) EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical) EN61326-1 (Industrial Controls) Marine TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A) EN 50581 (RoHS) China RoHS EU WEEE NEMA TS-2 (EMC, environmental, mechanical) IP30
Hazardous Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class1, Div2 A-D)* EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)* IEC 60079-0, 15 (report only)* UL 60079-0, 15* CAN/CSA C22.2 No. 60079-0, -15*
Humidity	IEC 60068 -2-3 IEC 60068-2-30 (Test Db) Relative humidity: 5% to 95% non-condensing

Properties

Properties	Cisco IE-1000-4P2S-LM
Description	Switch , managed, 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink), DIN rail mountable, PoE+, DC power
Product Family	Industrial Ethernet 1000
Product Type	Ethernet Switch
Number of Ports	6
Switches
Total Ports	4
Fast Ethernet Copper Uplink	-
GE SFP Uplink	2
Fast Ethernet Copper Downlink	-
PoE/PoE+	4
PoE Budget	120W
Input Power Voltage	48-54V
Software Features	LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS)
Dimensions (HxWxD) Inches	5.0H x 1.8W x 5.3D (127mm H x 45.7mmW x 134mm D)
Weight	1.70 lb (0.77 kg)
