Cisco 7900 Unified IP Phones

[specifications]

Phone-Casing Composition	Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray color with silver bezel

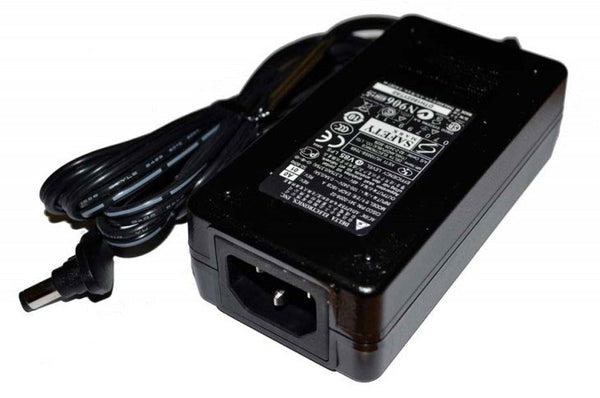

Power	Supports IEEE 802.3af PoE (Class 2). Also supports Cisco Prestandard Power over Ethernet (PoE), allowing powering from any of the Cisco Inline Power-capable blades and boxes, plus Cisco midspan. 48VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-3=) or power injector (CP-PWR-INJ=). Local power options require a corresponding AC country cord.
Phone Software Requirements	Supported in 8.3(2) and greater
Call Control Compatibility	Call Control Compatibility
Signaling Protocols	Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control
Operating Temperature	32 to 104F (0 to 40C)
Relative Humidity	10 to 95% (noncondensing)
Storage Temperature	14 to 140F (-10 to 60C)
Display	5-inch (12.5 cm), high-resolution (320 x 222), graphical monochrome 4-bit grayscale display.
Wideband Audio	Support for wideband (G.722 codec, adherence to TIA 920), including handset, headset, and speakerphone (see Q&A for details).
Codec Support	G.711a, G.711, G.729a, G.729ab, G.722, and iLBC audio compression codecs are supported.
Speakerphone	Full-duplex speakerphone with acoustic echo cancellation.
Messages Key	Provides direct access to voicemail.
Quality of Service (QoS) Options	Supports differentiated services code point (DSCP) and 802.1Q/p standards.
Security	Positive device identity through X.509v3 Certificates, digitally signed images, cryptographically secure provisioning, and secure signaling and secure media with AES-128. Cryptography is not enabled by default and may only be enabled through a cryptographically enabled CUCM. The phone also contains an 802.1X supplicant and supports the EAPOL pass-through.
Language Support	Built-in support for more than 30 languages (dependent on Cisco Unified Communications Manager version).
Configuration Options	IP address assignment can be statically configured or configured through the DHCP client.

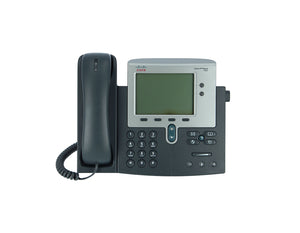

[/specifications]The Cisco Unified IP Phone 7942G is a full-featured IP phone with speakerphone and handset designed for wideband audio. It is intended to meet the needs of transaction-type workers with significant phone traffic. It has two programmable backlit line/feature buttons and four interactive soft keys that guide you through all call features and functions. The phone has a large, 4-bit grayscale graphical LCD that provides features such as date and time, calling party name, calling party number, digits dialed, and presence information. The crisp graphics capability of the display allows for the inclusion of higher value, more visibly rich Extensible Markup Language (XML) applications, and support for localization requiring double-byte Unicode encoding for fonts. A hands-free speakerphone and handset designed for hi-fidelity wideband audio are standard on the Cisco Unified IP Phone 7942G, as is a built-in headset connection and an integrated Ethernet switch.

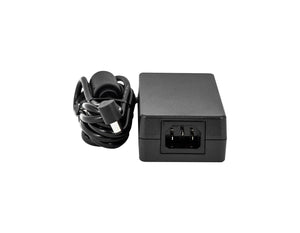

[specifications] [/specifications]Power Adapter For Unified IP Phone 8961, 9951, and 9971

[specifications]

Product Type	VoIP phone
Body Color	Silver, dark gray
Body Material	ABS plastic
Call Services	Voice Mail, Caller ID, Call forwarding, Call Transfer, Call Hold
Dialer Type	Keypad
Dialer location	Base
Conference Call Capacity	Yes
Speakerphone	Yes (digital duplex)
Menu Operation	Yes
Function Buttons	Speakerphone button, directory button, navigator key, headset button, mute button
Volume Control	Yes
Ringer Control	Yes
Firmware Upgradable	Yes
Additional Functions	Web browser
Additional Features	On-hook dialing
Main Features	Multiple VoIP protocol support integrated Ethernet switch
VoIP Protocols	SCCP, SIP
Voice Codecs	G.722, G.729a, G.729ab, G.711u, G.711a, iLBC
Quality of Service	IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment	DHCP, static
Security	128-bit AES
Power Over Ethernet (PoE) Support	Yes
Network Protocols	TFTP
Network Ports Qty	2 x Ethernet 10Base-T/100Base-TX/1000Base-T
Voice Features	Echo cancellation (ECN)
Network Features	Class 3 PoE
Type	LCD display - color
Display Location	Base
Diagonal Size	5
Display Resolution	320 x 240 pixels
Color Depth	16-bit (65000 colors)
Display Information	Date, time
Backlit	Yes
Features	Wallpaper
Connections	Headset jack
Hearing Aid Compatible	Yes
Placing / Mounting	Wall-mountable, table-top
Width	10.5 in
Depth	6 in
Height	8 in
Weight	3.5 lbs

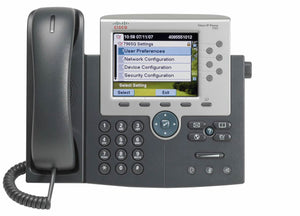

[/specifications]Enhance the telephone user experience with high-fidelity wideband audio, new backlit color displays, and improved navigation options. The Cisco Unified IP Phone 7965G extends the functionality of the existing Cisco Unified IP Phone 7961G and 7961G-GE models.

[specifications] [/specifications]7916 IP Phone Color Expansion Module Cisco 7900 Unified IP Phone.

[specifications] [/specifications]Call coverage is a critical capability for administrative assistants and others who must monitor, manage, and cover the status of calls. This capability requires the ability to instantly determine the status of numerous lines beyond the capability of Cisco Unified IP Phone select models. The Cisco Unified IP Phone Expansion Module 7915 extends the capabilities with additional buttons and an LCD display. With this expansion module, you add 12 physical keys with access to 12 additional keys through the page keys for a total of 24 buttons to the existing buttons. You can use up to two Cisco Unified IP Phone Expansion Module 7915 modules with the Cisco Unified IP Phone select models.

[specifications] [/specifications]Cisco IP Conference Station 7937 Global Cisco 7900 Unified IP Phone

[specifications]

Dimensions (H x W x D)	8.2 x 10.5 x 6 in. (20.32 x 26.67 x 15.24 cm)
Weight	3.5 lb (1.6 kg)
Phone-Casing Composition	Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray color with silver bezel
Power	Supports IEEE 802.3af PoE (Class 3). 48VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-3=) or power injector (CP-PWR-INJ=). Local power options require a corresponding AC country cord.
Phone Software Requirements	Supported in 8.3(2) and greater
Call Control Compatibility	Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b, 4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater Supported in Cisco Unified Communications Express and SRST Version 4.1
Signaling Protocols	Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control





[/specifications]The Cisco Unified IP Phone 7945G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color display, and an integrated Gigabit Ethernet port. It addresses the needs of transaction-type workers with significant phone traffic and the needs of those working with bandwidth-intensive applications on co-located PCs. This IP phone includes a large, backlit, easy-to-read color display for easy access to communication information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed, and presence information. It also accommodates Extensible Markup Language (XML) applications that take advantage of the display. The phone provides direct access to two telephone lines (or combination of lines, speed dials, and direct access to telephony features), four interactive soft keys that guide you through call features and functions, and an intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity wideband audio are standard, as is a built-in headset connection.

[specifications] [/specifications]Cisco is the worldwide leader in networking for the Internet. Cisco provides the broadest line of solutions for transporting data, voice and video within buildings, across campuses, or around the world. Cisco solutions ensure that networks both public and private operate with maximum performance, security, and flexibility.
