[specifications]
Standards | Â Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az |
EtherChannel Technology |  Gigabit EtherChannel: All 1000 Mbps ports  10 Gigabit EtherChannel: All 10Gbps ports  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports  Port Aggregation Protocol (PagP): Yes  Number of ports per tuple: 8  EtherChannel and IEEE 802.3ad technology across line cards: Yes |
Physical Dimensions |  Occupies one slot in the Cisco Catalyst 9400 Series platform  Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
Environmental Conditions |  Operating temperature:  Normal Operating Temperature and Altitudes:   27 to 109F (-5 to +45C), up to 6,000 feet (1800 m)   27 to 104F (-5 to +40C), up to 10,000 feet (3000 m)   *Minimum ambient temperature for cold startup is 0C  Short-Term Exceptional Conditions:   27 to 119F (-5 to +55C), up to 6,000 feet (1800 m)   27 to 114F (-5 to +50C), up to 10,000 feet (3000 m)   Not more than following in a one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences  Storage temperature: -40 to 158 F (-40 to 70C)  Relative humidity: 10 to 95%, noncondensing  Operating altitude: -60 to 3000m |
Safety Conditions | Fiber optic lasers: Class 1 laser products |
Safety Certifications | Â UL 60950-1 Â CAN/CSA-C222.2 No. 60950-1 Â EN 60950-1 Â IEC 60950-1 Â AS/NZS 60950.1 Â IEEE 802.3 |
Electromagnetic Emissions Certifications | Â 47 CFR Part 15 Â CISPR22 Class A Â EN 300 386 V1.6.1 Â EN 55022 Class A Â EN 55032 Class A Â CISPR 32 Class A Â EN61000-3-2 Â EN61000-3-3 Â ICES-003 Class A Â TCVN 7189 Class A Â V-3 Class A Â CISPR24 Â EN 300 386 Â EN55024 Â TCVN 7317 |
ROHS Compliance | ROHS5 |
Â
Â
[/specifications]The Cisco Catalyst 9400 is Cisco's lead modular enterprise switching access platform built for security, IoT and cloud. This switch series forms the foundational building blocks for SD-Access - Cisco's leading enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio.
[specifications]
Standards | Â Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az |
EtherChannel Technology |  Gigabit EtherChannel: All 1000 Mbps ports  10 Gigabit EtherChannel: All 10Gbps ports  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports  Port Aggregation Protocol (PagP): Yes  Number of ports per tuple: 8  EtherChannel and IEEE 802.3ad technology across line cards: Yes |
Physical Dimensions |  Occupies one slot in the Cisco Catalyst 9400 Series platform  Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
Environmental Conditions |  Operating temperature:  Normal Operating Temperature and Altitudes:   27 to 109F (-5 to +45C), up to 6,000 feet (1800 m)   27 to 104F (-5 to +40C), up to 10,000 feet (3000 m)   Minimum ambient temperature for a cold startup is 0C  Short-Term Exceptional Conditions:   27 to 119F (-5 to +55C), up to 6,000 feet (1800 m)   27 to 114F (-5 to +50C), up to 10,000 feet (3000 m)   Not more than following in a one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences  Storage temperature: -40 to 158 F (-40 to 70C)  Relative humidity: 10 to 95%, noncondensing  Operating altitude: -60 to 3000m        |
Safety Conditions | Fiber optic lasers: Class 1 laser products |
Safety Certifications | Â UL 60950-1 Â CAN/CSA-C222.2 No. 60950-1 Â EN 60950-1 Â IEC 60950-1 Â AS/NZS 60950.1 Â IEEE 802.3 |
Electromagnetic Emissions Certifications | Â 47 CFR Part 15 Â CISPR22 Class A Â EN 300 386 V1.6.1 Â EN 55022 Class A Â EN 55032 Class A Â CISPR 32 Class A Â EN61000-3-2 Â EN61000-3-3 Â ICES-003 Class A Â TCVN 7189 Class A Â V-3 Class A Â CISPR24 Â EN 300 386 Â EN55024 Â TCVN 7317 |
ROHS Compliance | ROHS5 |
Â
Â
[/specifications]

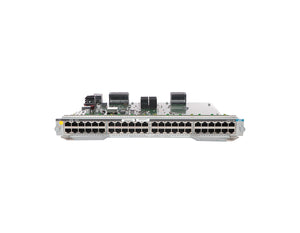

Built for security, IoT and Cloud, Cisco C9400-LC-48U Switch Line Card is Cisco’s lead modular enterprise switching product. It is ideal to form foundational building block for SD-Access - Cisco's leading enterprise architecture.
Cisco C9400-LC-48U Switch Line Card switching platform is a perfect choice for creating unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high-density IEEE 802.3BT (60W PoE). Choose this product for table stack redundancy.
Â
Â
[specifications] [/specifications]
Cisco C9400-LC-24S Switch Line Card is perfect for security, IoT, and cloud. Considered as Cisco’s lead modular enterprise switching access platform, this switch variety can form the foundational building blocks for Cisco’s leading enterprise architecture SD-Access.
Cisco C9400-LC-24S Switch Line Card provides unique investment protection with a chassis architecture that is capable of supporting up to 9Tbs of system bandwidth. It ensures unmatched power delivery for high density IEEE 802.3BT (60W PoE) and redundant table stakes. Â
