CISCO C9400-LC-48S SWITCH LINE CARD

Model: C9400-LC-48S
Detail:
  • Line Card, 48 x Gigabit SFP, Plug-in module
List Price: US$29,572.00
Price:
$21,410.81
You Save: $8,161.19 (28% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

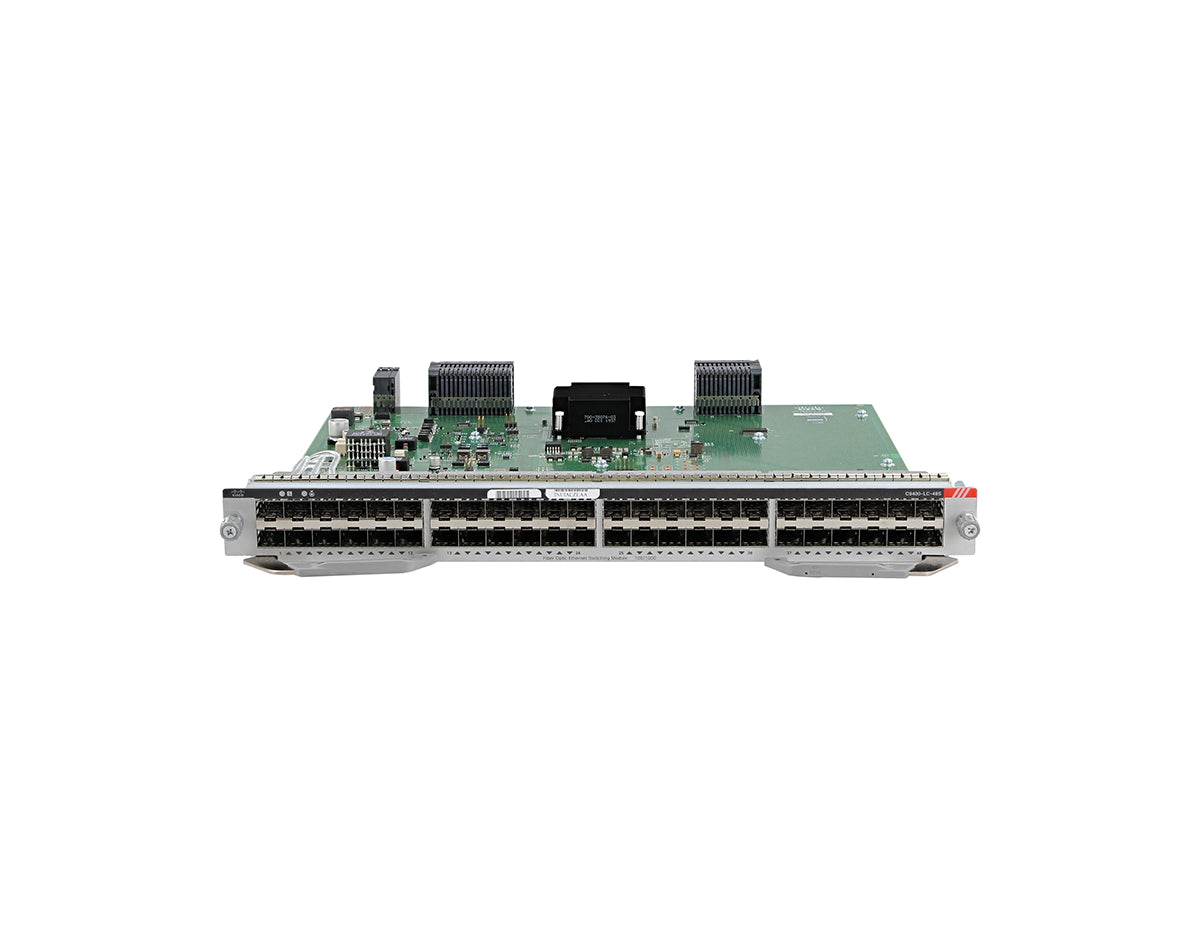

Cisco Catalyst C9400-LC-48S Line Card

The Cisco Catalyst C9400-LC-48S Line Card is a high-density module designed for the Cisco Catalyst 9400 Series modular switches, offering advanced connectivity options for enterprise networks that require reliable and high-speed data transfer. This line card features 48 Gigabit Ethernet SFP ports, making it ideal for supporting a wide range of network devices across large-scale deployments. The C9400-LC-48S is engineered to meet the growing demands of modern enterprise environments, providing the flexibility, scalability, and security needed to support expanding network infrastructures.

Key Features:

  • 48 x Gigabit Ethernet SFP Ports: Provides high-speed data connectivity, enabling efficient data transfer across various network devices.
  • High-Density Design: Supports a large number of connections in a single module, ideal for environments that require extensive network coverage.
  • Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion as your business grows.
  • Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
  • Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.

Technical Overview:

  • Recommended for: Large enterprise networks requiring scalable, high-density Gigabit Ethernet connectivity with flexible deployment options.
  • Ports: 48 x Gigabit Ethernet SFP ports.
  • Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
  • Management: Managed through Cisco DNA Center and other Cisco network management tools.
  • Security: Integrated with advanced security features, including network segmentation and access control.

You can check the related tab for the C9400-LC-48S datasheet.

Specifications

Specifications C9400-LC-48S
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an
Features ‚ ‚ ‚ ‚ ‚ Supports up to 48 nonblocking SFP ports

‚ ‚ ‚ ‚ ‚ Supported on Cisco IOS XE Software Release 16.8.1 or later

‚ ‚ ‚ ‚ ‚ IEEE 802.1AE (MACsec-256) capability in hardware

‚ ‚ ‚ ‚ ‚ Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes)

‚ ‚ ‚ ‚ ‚ Enterprise, mid-market, and commercial core and distribution deployments requiring line-rate capability

‚ ‚ ‚ ‚ ‚ Service provider: Gigabit Ethernet aggregation for DSL Access Multiplexer (DSLAM), Passive Optical Network (PON), and mobile data backhaul; FTTX for residential and business applications

‚ ‚ ‚ ‚ ‚ Enterprise: Providing Fiber To The Desktop (FTTD), for deployments where non-blocking is mandatory requirement
Bandwidth per slot by chassis
Supervisor
C9400 Supervisor Engine-1 (C9400-SUP-1) Bandwidth per slot
Chassis C9404R: 80 Gbps
Chassis C9407R: 80 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL (C9400-SUP-1XL) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) Bandwidth per slot
Chassis C9404R: 480 Gbps
Chassis C9407R: 480 Gbps
Chassis C9410R: 480 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2 (C9400X-SUP-2) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 240 Gbps
Chassis C9410R: 240 Gbps
Oversubscription: 1:1
Operating temperature ‚ Normal Operating * Temperature and Altitudes:
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)

‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)

‚ ‚ ‚ ¦‚ ‚ ‚ *Minimum ambient temperature for cold startup is 0°C

‚ Short-Term ** Exceptional Conditions:
‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 131°F (-5 to +55°C), up to 6,000 feet (1800 m)

‚ ‚ ‚ ¦‚ ‚ ‚ 23° to 122°F (-5 to +50°C), up to 10,000 feet (3000 m)

‚ ‚ ‚ ¦‚ ‚ ‚ **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature -40° to 158° F (-40° to 70°C)
Relative humidity 10 to 95%, noncondensing
Operating altitude -60 to 3000m
Rated MTBF (hours) 937,600
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3
Electromagnetic emissions certifications ‚ 47 CFR Part 15
‚ CISPR22 Class A
‚ EN 300 386 V1.6.1
‚ EN 55022 Class A
‚ EN 55032 Class A
‚ CISPR 32 Class A
‚ EN61000-3-2
‚ EN61000-3-3
‚ ICES-003 Class A
‚ TCVN 7189 Class A
‚ V-3 Class A
‚ CISPR24
‚ EN 300 386
‚ EN55024
‚ TCVN 7317
ROHS compliance ROHS5

Properties

Properties Cisco C9400-LC-48S
Description Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)
Product Family Catalyst 9400
Product Type Switch Line Card
Number of ports 48
Port speed 1 GE
Port type SFP
Cisco Catalyst 9400 Series switch min/max ports
C9404R 48/96
C9407R 48/240
C9410R 48/384
Physical dimensions Occupies one slot in Cisco Catalyst 9400 Series switches

Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Max rated power (W) 170
