HPE ARUBA 2530 8G POE+ SWITCH (J9774A)

Model: J9774A
Detail: Managed, Rack-mountable, 8 x 1G PoE+ ports, 2 x 1G SFP Uplinks, PoE+ (67W), Layer 2
Price:
$1,331.81
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

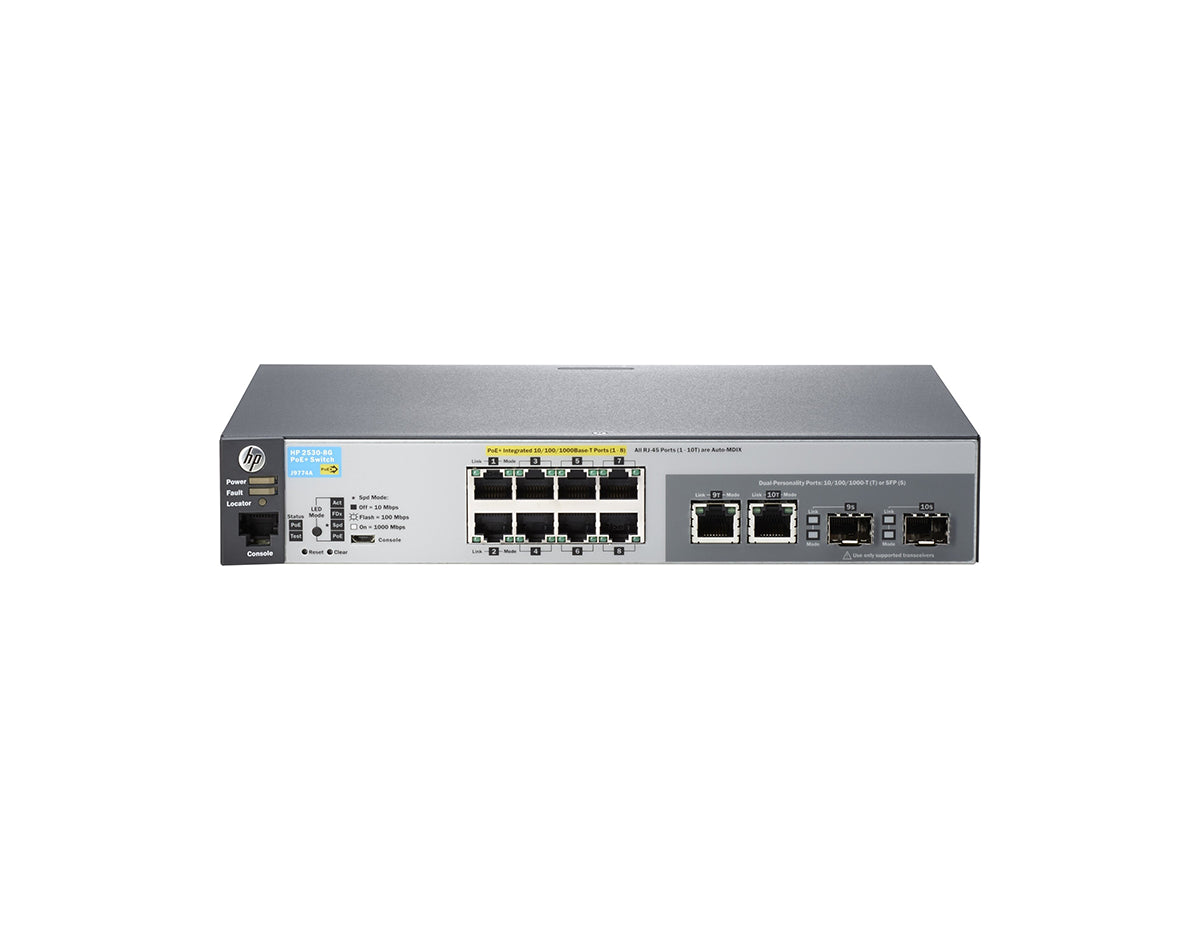

HPE Aruba 2530 8G PoE+ Switch (J9774A)

The HPE Aruba 2530 8G PoE+ Switch is a compact and fully managed Layer 2 switch designed to deliver secure and reliable connectivity for small businesses. With 8 Gigabit Ethernet ports and PoE+ support, it is perfect for powering connected devices such as IP phones, cameras, and wireless access points. Additionally, the switch features 2 dual-personality uplink ports, providing flexibility in network expansion.

Key Features:

  • 8 x Gigabit Ethernet Ports with PoE+: Provides up to 30W per port to power connected devices like IP phones and cameras.
  • 2 x Dual-Personality Uplink Ports: Flexible uplinks supporting Gigabit Ethernet and SFP transceivers.
  • Layer 2 Switching: Supports VLANs, QoS, and sFlow for optimized traffic management.
  • Compact, Fanless Design: Ensures quiet and energy-efficient operation, making it ideal for office environments.
  • Energy-Efficient Operation: Compliant with IEEE 802.3az for reduced power consumption.

Technical Overview:

  • Recommended for: Small businesses and branch offices.
  • Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x dual-personality Gigabit Ethernet/SFP uplinks.
  • Switching Capacity: 20 Gbps.
  • Forwarding Rate: 14.8 Mpps.
  • Management: Managed via Aruba Central, AirWave, CLI, Web GUI, SNMP.
  • PoE+ Power Budget: 67W.
  • Energy Efficiency: Meets IEEE 802.3az standards.

You can check the related tab for the HPE Aruba 2530 8G PoE+ Switch (J9774A) datasheet.

Accessories

Transceivers
J9054C HPE X121 1G SFP LC SX Transceiver
J8177C HPE X121 1G SFP LC LX Transceiver
J4859C HPE X121 1G SFP RJ45 T Transceiver
J4858C HPE X111 100M SFP LC FX Transceiver
Cables
AJ833A HPE 0.5 m Multimode OM3 LC/LC Optical Cable
AJ834A HPE 1 m Multimode OM3 LC/LC Optical Cable
AJ835A HPE 2 m Multimode OM3 LC/LC Optical Cable
AJ836A HPE 5 m Multimode OM3 LC/LC Optical Cable
AJ837A HPE 15 m Multimode OM3 LC/LC Optical Cable
AJ838A HPE 30 m Multimode OM3 LC/LC Optical Cable
AJ839A HPE 50 m Multimode OM3 LC/LC Optical Cable
QK732A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK733A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK734A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK735A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK736A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK737A HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

Specifications

Specifications 2530-J9774A
Memory and processor ARM9E @ 800 MHz, 128 MB flash; Packet buffer size: 1.5 MB dynamically allocated, 256 MB DDR3 DIMM
Performance
100 Mb Latency < 7.4 µs (LIFO 64-byte packets)
1000 Mb Latency < 2.6 µs (LIFO 64-byte packets)
Throughput up to 14.8 Mpps (64-byte packets)
Switching capacity 20 Gbps
MAC address table size 16000 entries
Management IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km)
Acoustic Power: 0 dB, Pressure: 0 dB
Safety UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emissions FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Immunity EN 55024, CISPR 24
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3
Technical Specifications
General Protocols IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1350 TFTP Protocol (revision 2)
RFC 1542 BOOTP Extensions
RFC 1918 Address Allocation for Private Internet
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3416 Protocol Operations for SNMP
RFC 3575 IANA Considerations for RADIUS
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
Denial of service protection Network DoS Filter
Device Management RFC 1591 DNS (client)
RFC 2576 (Coexistence between SNMP V1, V2, V3)
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)
SSHv1/SSHv2 Secure Shell
MIBs RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 2021 RMONv2 MIB
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB
RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)
IPv6 RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 2925 Remote Operations MIB (Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3484 Default Address Selection for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4252 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
QoS/CoS RFC 2474 DiffServ precedence, with 4 queues per port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
IP Multicast RFC 2236 IGMPv2
Network Management IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 1098 A Simple Network Management Protocol (SNMP)
RFC 1155 Structure of Management Information
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 3411 SNMP Management Frameworks
RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)
RFC 3413 Simple Network Management Protocol (SNMP) Applications
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 5424 Syslog Protocol
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
Security IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)

Properties

Properties HPE OfficeConnect 2530 J9774A
Description Switch, managed, 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP, desktop, rack-mountable, wall-mountable, PoE+ (67 W)
Product Family 2530 Series
Product Type Ethernet Switch
I/O ports and slots 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port
Electrical characteristics
Frequency 50/60 Hz
Voltage 100 - 127 / 200 - 240 VAC, rated
Current 1.4 A
Maximum heat dissipation 65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr)
Maximum power rating 86 W
Idle power 13.4 W
PoE power 67 W
Dimension 10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height)
Weight 2.2 lb (1 kg)
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Horizontal surface mounting; Wall mounting
