Cisco Industrial Ethernet 4000 Series Switches

Cisco Industrial Ethernet 4000 Series Switches

The Cisco IE 4000 series is a family of industrial Ethernet switches that are designed to provide a high level of reliability and performance in challenging industrial environments. These ruggedized switches are built to withstand extreme temperatures, vibration, and other harsh conditions, making them ideal for use in industrial control systems, transportation, and other critical infrastructure applications.

     Their features include:

     - Advanced security (ACLs, DoS, and SSH protocol)

     - Network Management (with SNMP and IND)

     - Copper and fiber connectivity options

Cisco Industrial Ethernet 4000 Series Switches

Show on page:

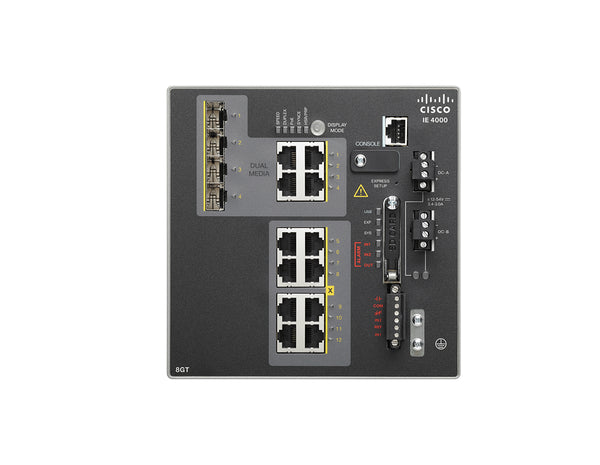

  • Cisco IE-4000-8GT4G-E Switch - Network Devices Inc.
    Save $2,717.44

    CISCO IE-4000-8GT4G-E SWITCH

    CISCO IE-4000-8GT4G-E SWITCH

    $4,995.00
    $7,712.44

    • Switch
    • Managed
    • 8 x 10/100/1000 + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power

    [specifications]

    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    RJ-45 copper ports (T) 8 GE
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 3.7A
    Power consumption 35W
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]

    High-Bandwidth Cisco IE-4000-8GT4G-E Switch

    Cisco IE-4000-8GT4G-E Switch provides high-grade bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. It can deliver highly secure access and industry-leading convergence by using the Cisco Resilient Ethernet Protocol (REP). It is built to withstand extreme environments and adhere to overall IT network design, compliance, and performance requirements.

    Cisco IE-4000-8GT4G-E Switch is ideal for industrial Ethernet applications, which include like factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining.

    Key Benefits of Cisco IE-4000-8GT4G-E Switch

    Cisco IE-4000-8GT4G-E Switch has a user-friendly web device manager that provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    RJ-45 copper ports (T) 8 GE
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight

    6.35 pounds (2.88 kg)

    quick view
    Availability: In Stock
    $7,712.44
    $4,995.00
    quick view

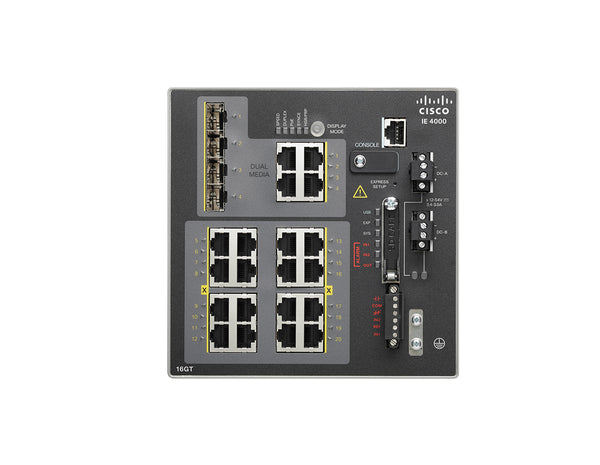

  • Cisco IE-4000-16GT4G-E Switch - Network Devices Inc.
    Save $3,578.50

    CISCO IE-4000-16GT4G-E SWITCH

    CISCO IE-4000-16GT4G-E SWITCH

    $7,295.00
    $10,873.50

    • Switch
    • Managed
    • 16 x 10/100/1000 + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power

    [specifications]

    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 4.3A
    Power consumption 40W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly





    [/specifications]



    Cisco IE-4000-16GT4G-E Switch Overview



    The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



    Total Ports 20
    GE combo uplinks (4G) 4 GE combo uplink ports
    RJ-45 copper ports (T) 16 GE
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: In Stock
    $10,873.50
    $7,295.00
    quick view
  • Cisco IE-4010-4S24P Switch - Network Devices Inc.
    Save $3,597.49

    CISCO IE-4010-4S24P SERIES SWITCH

    CISCO IE-4010-4S24P SERIES SWITCH

    $5,931.94
    $9,529.43

    • Switch
    • managed
    • 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink)
    • DIN rail mountable

    [specifications] [/specifications]

    Cisco Industrial Ethernet (IE) 4010 series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

    The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.


    quick view
    Availability: In Stock
    $9,529.43
    $5,931.94
    quick view
  • Cisco IE-4010-16S12P Switch
    Save $2,293.69

    CISCO IE-4010-16S12P SWITCH

    CISCO IE-4010-16S12P SWITCH

    $6,686.21
    $8,979.90

    • Switch
    • managed
    • 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP
    • DIN rail mountable

    [specifications] [/specifications]

    Cisco Industrial Ethernet (IE) 4010 series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

    The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.

    quick view
    Availability: In Stock
    $8,979.90
    $6,686.21
    quick view

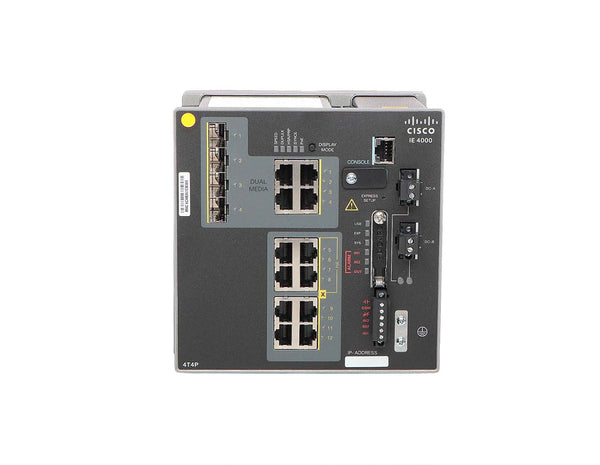

  • Cisco IE-4000-4T4P4G-E Switch - Network Devices Inc.
    Save $1,707.35

    CISCO IE-4000-4T4P4G-E SWITCH

    CISCO IE-4000-4T4P4G-E SWITCH

    $4,712.26
    $6,419.61

    • Switch
    • Managed
    • 4 x 10/100 + 4 x 10/100 (PoE+) + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • PoE+
    • DC power
    [specifications] [/specifications]The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

    quick view
    Availability: In Stock
    $6,419.61
    $4,712.26
    quick view

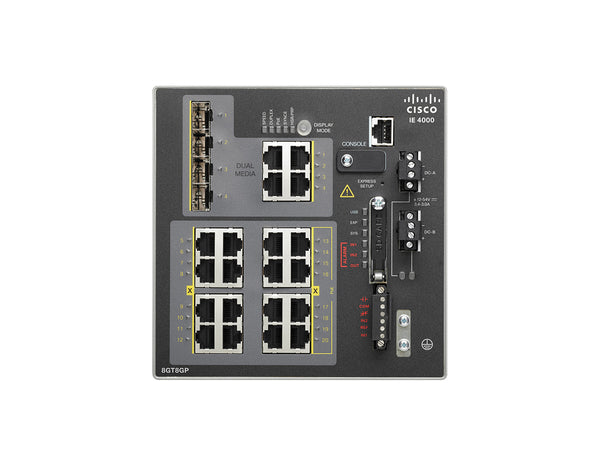

  • Cisco IE-4000-8GT8GP4G-E Switch - Network Devices Inc.
    Save $2,349.42

    CISCO IE-4000-8GT8GP4G-E SWITCH

    CISCO IE-4000-8GT8GP4G-E SWITCH

    $10,158.81
    $12,508.23

    • Switch, Managed, 8 x 10/100/1000 + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP, DIN Rail Mountable, PoE+, DC power
    [specifications] [/specifications]The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

    quick view
    Availability: In Stock
    $12,508.23
    $10,158.81
    quick view

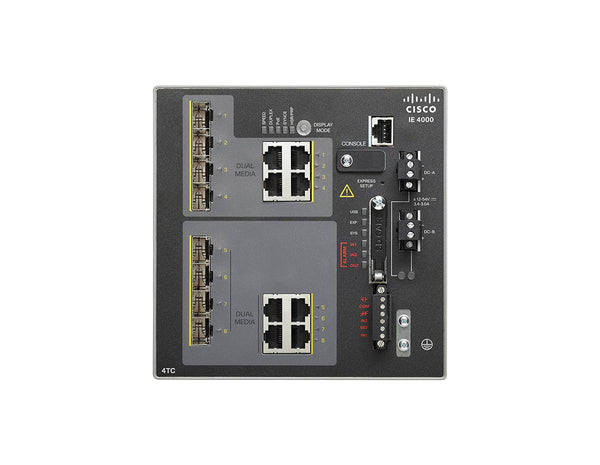

  • Cisco IE-4000-4TC4G-E Switch - Network Devices Inc.
    Save $728.30

    CISCO IE-4000-4TC4G-E SWITCH

    CISCO IE-4000-4TC4G-E SWITCH

    $3,695.00
    $4,423.30

    • Switch, Managed, 4 x combo SFP + 4 x combo Gigabit SFP, DIN Rail Mountable, DC power

    [specifications]

    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current:4.3A
    Power consumption 40W
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]



    Cisco IE-4000-4TC4G-E Switch Overview



    The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



    Total Ports 8
    GE combo uplinks (4G) 4 GE combo uplink ports

    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    Additional combo ports 4 FE
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $4,423.30
    $3,695.00
    quick view

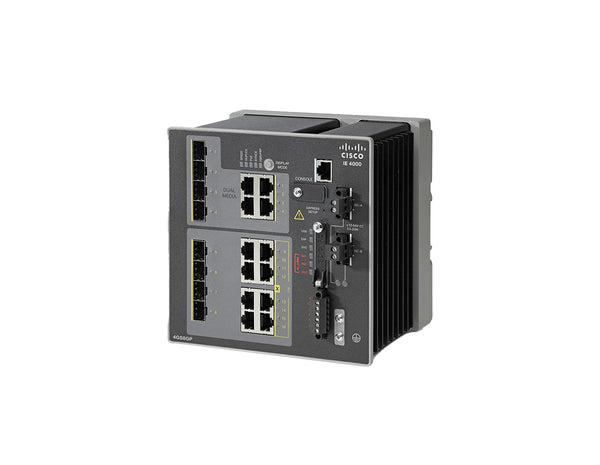

  • Cisco IE-4000-4GS8GP4G-E Switch - Network Devices Inc.
    Save $3,501.45

    CISCO IE-4000-4GS8GP4G-E SWITCH

    CISCO IE-4000-4GS8GP4G-E SWITCH

    $6,849.00
    $10,350.45

    • Switch
    • managed
    • 4 x Gigabit SFP + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP
    • DIN rail mountable
    • PoE+
    • DC power

    [specifications]

    Total Ports 16
    GE combo uplinks (4G) 4 GE combo uplink ports

    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    SFP fiber ports (S) 4 GE
    PoE/PoE+ ports (P, GP), Maximum PoE power budget 8 GE, 125W
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 4.3A
    Power consumption 40W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]



    Cisco IE-4000-4GS8GP4G-E Switch Overview


    The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

    The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

    The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



    Total Ports 16
    GE combo uplinks (4G) 4 GE combo uplink ports
    SFP fiber ports (S) 4 GE
    PoE/PoE+ ports (P, GP), Maximum PoE power budget 8 GE, 125W
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $10,350.45
    $6,849.00
    quick view

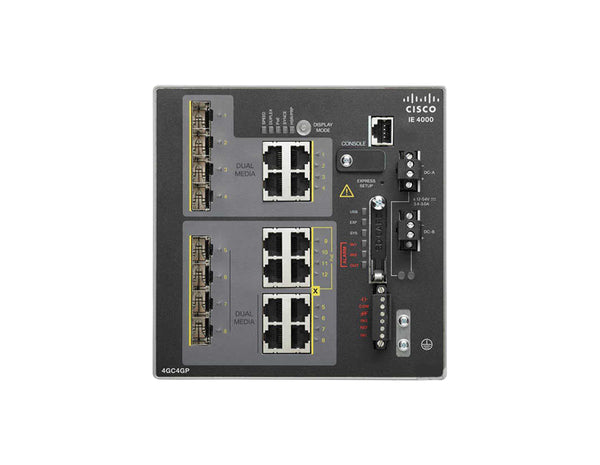

  • Cisco IE-4000-4GC4GP4G-E Switch - Network Devices Inc.
    Save $3,653.14

    CISCO IE-4000-4GC4GP4G-E SWITCH

    CISCO IE-4000-4GC4GP4G-E SWITCH

    $5,071.16
    $8,724.30

    • Switch
    • Managed
    • 8 x combo Gigabit SFP + 4 x 10/100/1000 (PoE+)
    • DIN Rail Mountable
    • PoE+
    • DC power

    [specifications]

    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports

    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    Additional combo ports 4 GE
    PoE/PoE+ ports (P, GP), Maximum PoE power budget 4 GE, 125W
    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 4.3A
    Power consumption 40W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)
    Forwarding rate Line rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly





    [/specifications]

    USE CISCO IE-4000-4GC4GP4G-E SWITCH FOR HIGH-BANDWIDTH SWITCHING

    CISCO IE-4000-4GC4GP4G-E SWITCH provides superior high-bandwidth switching solution. It comes with proven CISCO IOS software-based routing capabilities for industrial environments. It delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP).

    Key Benefits of CISCO IE-4000-4GC4GP4G-E SWITCH

    CISCO IE-4000-4GC4GP4G-E SWITCH is for use in any rugged environment. It is best-suited for factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. Get an improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware performance.

    Cisco IE-4000-4GC4GP4G-E Switch Overview



    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    Additional combo ports  4 GE
    PoE/PoE+ ports (P, GP), Maximum PoE power budget 4 GE, 125W
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $8,724.30
    $5,071.16
    quick view

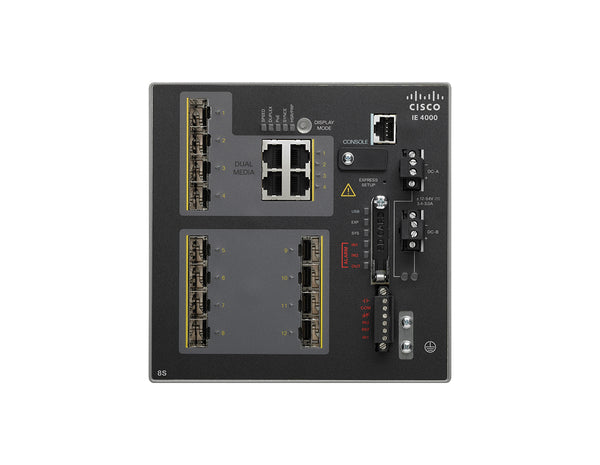

  • Cisco IE-4000-8S4G-E Switch - Network Devices Inc.
    Save $2,979.89

    CISCO IE-4000-8S4G-E SWITCH

    CISCO IE-4000-8S4G-E SWITCH

    $2,376.50
    $5,356.39

    • Switch
    • Managed
    • 8 x SFP + 4 x combo Gigabit SFP
    • DIN rail mountable
    • DC power

    [specifications]

    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 5A
    Power consumption 42W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]



    USE CISCO IE-4000-8S4G-E SWITCH FOR HIGH-BANDWIDTH SOLUTION

    CISCO IE-4000-8S4G-E SWITCH is best suited for industrial environments. It delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP). Compatible for even extreme environments, this is an ideal selection for IT network design, compliance, and performance requirements.

    Key Benefits of CISCO IE-4000-8S4G-E SWITCH

    CISCO IE-4000-8S4G-E SWITCH is a suitable choice for factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. It is easy to install in a network and has a built-in user-friendly web device manager. It comes with out of the box configuration and simplified operational manageability in order to deliver advanced security, data, video and voice services over industrial networks.



    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    SFP fiber ports (S) 8 FE
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $5,356.39
    $2,376.50
    quick view

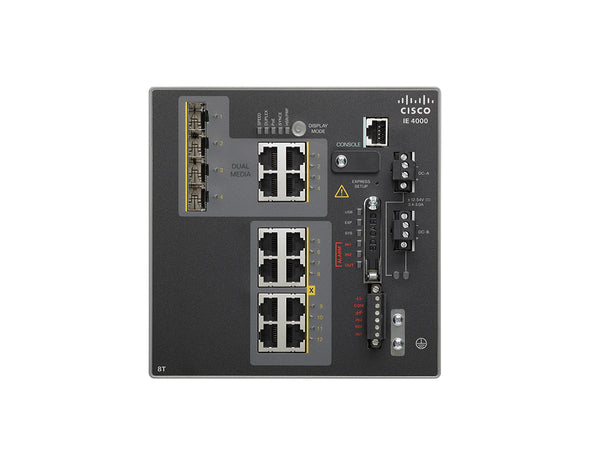

  • CISCO IE-4000-8T4G-E SWITCH

    CISCO IE-4000-8T4G-E SWITCH

    $5,990.00

    • Switch
    • Managed
    • 8 x 10/100 + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power
    [specifications] [/specifications]The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

    quick view
    Availability: Out Of Stock
    $5,990.00
    quick view

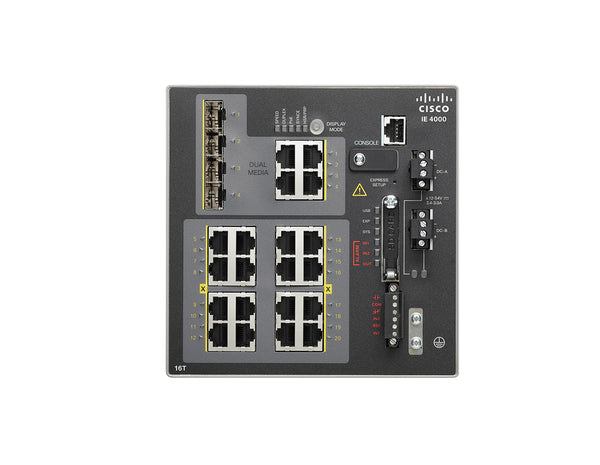

  • Cisco IE-4000-16T4G-E Switch - Network Devices Inc.
    Save $2,481.80

    CISCO IE-4000-16T4G-E SWITCH

    CISCO IE-4000-16T4G-E SWITCH

    $4,562.00
    $7,043.80

    • Switch
    • Managed
    • 16 x 10/100 + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power

    [specifications]

    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 3.7A
    Power consumption 35W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]



    Cisco IE-4000-16T4G-E Switch Overview



    The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000. The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.



    Total Ports 20
    GE combo uplinks (4G) 4 GE combo uplink ports
    RJ-45 copper ports (T) 16 FE
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $7,043.80
    $4,562.00
    quick view

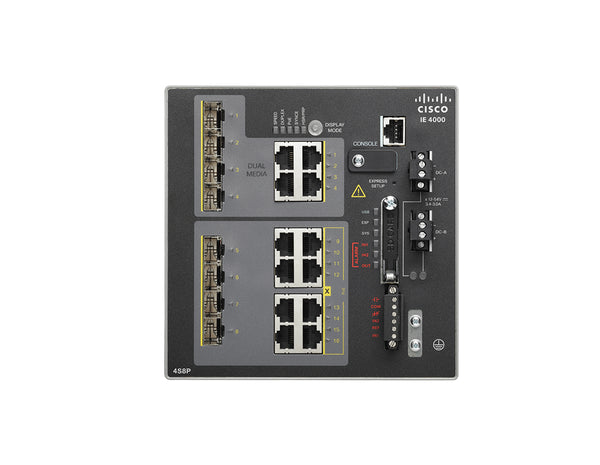

  • Cisco IE-4000-4S8P4G-E Switch - Network Devices Inc.
    Save $2,178.04

    CISCO IE-4000-4S8P4G-E SWITCH

    CISCO IE-4000-4S8P4G-E SWITCH

    $4,751.04
    $6,929.08

    • Switch
    • managed
    • 4 x SFP + 8 x 10/100 (PoE+) + 4 x combo Gigabit SFP
    • DIN rail mountable
    • PoE+
    • DC power

    [specifications]

    Total Ports 16
    GE combo uplinks (4G) 4 GE combo uplink ports
    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    SFP fiber ports (S) 4 FE
    PoE/PoE+ ports (P, GP), Maximum PoE power budget 8 (FE), 125W
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 4.3A
    Power consumption 40W
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)
    Forwarding rate Line rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly







    [/specifications]The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

    The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

    The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

    quick view
    Availability: Out Of Stock
    $6,929.08
    $4,751.04
    quick view

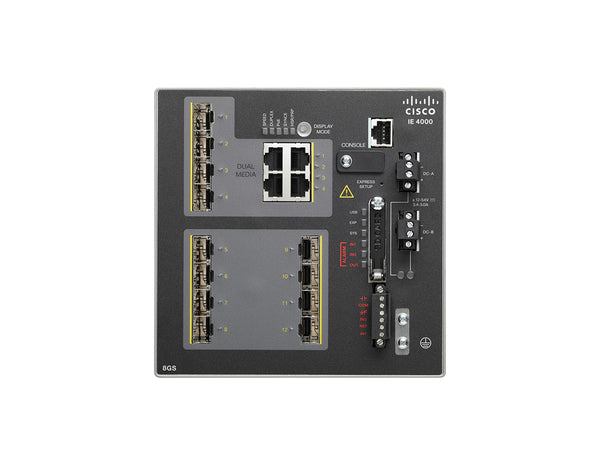

  • Cisco IE-4000-8GS4G-E Switch - Network Devices Inc.
    Save $2,912.77

    CISCO IE-4000-8GS4G-E SWITCHES

    CISCO IE-4000-8GS4G-E SWITCHES

    $4,895.00
    $7,807.77

    • Switch
    • Managed
    • 8 x Gigabit SFP + 4 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power

    [specifications]

    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
    SFP fiber ports (S) 8 GE
    Default software LAN Base feature set (Can be upgraded to IP Services at a fee.)
    Hardware   1GB DRAM

      128-MB onboard flash memory

      1-GB removable SD flash memory card

      Mini-USB connector

      RJ-45 connector
    Alarm Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
    Power Input   Redundant DC input voltage with operating range: nominal 9.6 to 60VDC

      Maximum DC input current: 5A
    Power consumption 42W
    Forwarding rate Line-rate for all ports and all packet sizes
    Number of queues 4 egress
    Unicast MAC addresses 16,000
    IGMP multicast groups 1,000
    Number of VLANs 1,000
    IPv4 MAC security ACEs 1,000 with default TCAM Template
    NAT translation Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly





    [/specifications]

    Use Cisco IE-4000-8GS4G-E Switch for Extreme Environments

    Cisco IE-4000-8GS4G-E Switch offers superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. Cisco IE-4000-8GS4G-E Switch is built to deliver highly secure access and industry-leading convergence with the use of Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

    Key Benefits of Cisco IE-4000-8GS4G-E Switch

    Cisco IE-4000-8GS4G-E Switch is perfect for industrial Ethernet applications where hardened products are required. Those application requirements could include factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. Cisco IE 4000-8GS4G-E Switch complements the current industrial Ethernet portfolio of related Cisco industrial switches. Those range from Cisco IE 2000 to IE 3000. Users can easily install this Cisco IE 4000 switch in their network.



    Total Ports 12
    GE combo uplinks (4G) 4 GE combo uplink ports
    SFP fiber ports (S) 8 GE
    Default software LAN Base feature set
    Dimensions (H x W x D) 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
    Weight 6.35 pounds (2.88 kg)

    quick view
    Availability: Out Of Stock
    $7,807.77
    $4,895.00
    quick view
Show on page:
Just added to your wishlist:
My Wishlist
You'
