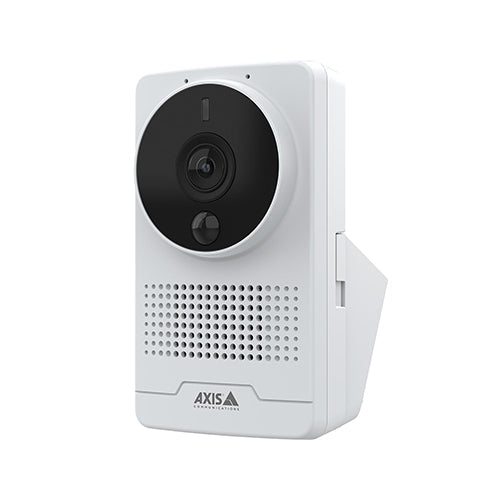

AXIS M1075-L Box Camera - Network Devices Inc

AXIS M1075-L Box Camera (02350-001)

Name: AXIS M1075-L Box Camera (02350-001)
Brand: Axis
SKU: 02350-001-NEW
Price: 376.95 USD
Availability: InStock

Part Number: 02350-001

Technical Details

Fully featured HDTV 1080p with deep learning, Day-and-night with IR illumination, Built-in privacy features, PIR Sensor for motion detection, Two-way audio communication, HDMI output

$376.95

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS M1075-L Box Camera (02350-001)

The AXIS M1075-L camera has been specifically engineered with a focus on privacy and security. It is equipped with a tally LED to signal video streaming or recording. This device provides high-definition television (HDTV) 1080p resolution, two-way audio, and exceptional image clarity. Additionally, this compact camera incorporates a deep learning processing unit (DLPU) that facilitates advanced functionalities and robust analytics through deep learning at the edge.

Quick Features:

Day-and-night with IR illumination
Built-in privacy features
Two-way audio communication
PIR Sensor for motion detection

Please see the related tabs for the 02350-001 datasheet and compatible accessories.

Feature

Properties

Properties	M1075-L
Description	AXIS M1075-L Box Camera offers two-way audio and 1080p image quality with IR illumination for small stores and residential care. It supports advanced analytics based on deep learning on the edge.
Product Family	AXIS M10 Series (M1075-L)
Product Type	Box Camera
Image sensor	1/2.9" progressive scan RGB CMOS
Lightfinder	–
Wide dynamic range	WDR
PoE Class	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Wireless	-
Connectors	Network: Shielded RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for 1 alarm input and 1 output (12 V DC output, max load 25 mA) USB
Signed firmware	–
Secure boot	Yes
Remote focus	-
Remote zoom	-
Built-in IR	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	-
Vandal rating	-
IP rating	-
Designed for repaint	-
Dimensions	105 x 60 x 93 mm (4.1 x 2.4 x 3.7 in)
Weight	153 g (0.34 lb)
Operating Temperature	0 °C to 35 °C (32 °F to 95 °F)
Event actions	Audio clips: play, stop Day-night mode: use day-night mode while the rule is active I/O: toggle I/O once, toggle I/O while the rule is active Illumination: use lights, use lights while the rule is active Images: FTP, HTTP, HTTPS, SFTP, email and network share MQTT: publish Notification: HTTP, HTTPS, TCP and email Overlay text: use overlay text, use overlay text while the rule is active Recordings: record video, record video while the rule is active SNMP trap messages: send, send while the rule is active Status LED: flash status LED, flash status LED while the rule is active Video clips: FTP, HTTP, HTTPS, SFTP, email and network share WDR mode: set WDR mode, set WDR mode while the rule is active
Applications	AXIS Object Analytics, AXIS Video Motion Detection
Supported	AXIS Live Privacy Shield
Supported	Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity	Software: Signed OS, signed video, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
	Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)
	Network Security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering

Specifications

Specifications	AXIS M1075-L
System on chip (SoC) Model	CV25
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Min illumination/ light sensitivity (Color)	0.18 lux
Min illumination/ light sensitivity (B/W)	0.04 lux (50 IRE, F2.0) / 0 lux with IR on
Max video resolution	1920x1080
Max frames per second	30
Electronic image stabilization	-
Focal length	3.16 mm
Horizontal field of view	103 °
Vertical field of view	55 °
Lens mount	M12
Replaceable lens	–
Zipstream	Yes
H.264	High, Main
H.265	Yes
Motion JPEG	Yes
Audio streaming	Two-way, full duplex Echo cancellation and voice enhancer
Audio input/output	Built-in microphones (can be disabled), built-in speaker 74 dB-SPL (at 1 m / 39 in)
Sustainability	BFR/CFR free, PVC free

Accessories

Box Content	Installation guide, Windows® decoder 1-user license, wall mount, terminal block connector
AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB	High endurance microSDXC™ cards
AXIS T91A10	Mounting Kit includes a mounting clamp and a stand
AXIS T91A33	Lighting Track Mount
AXIS T91A23	Tile Grid Ceiling Mount
AXIS T91A11	A camera stand for wall or ceiling mounts
AXIS T8120	Midspan 15 W 1-port
AXIS T8415	Wireless Installation Tool
AXIS TM1901	A wireless kit including a wireless adapter and a power injector
