[shortdesc]

Indoor and outdoor PTZ with 10x zoom in HDTV 1080p, HDTV 1080p and 10x optical zoom, Continuous 360-degree pan, Axis Zipstream, Three scene profiles, Two-way audio, and I/O

[/shortdesc]

[properties]

Properties	AXIS M5525-E 60HZ PTZ Network Camera
Description	The AXIS M5525-E PTZ Network Camera is a compact indoor/outdoor camera with HDTV 1080p resolution, 10x optical zoom, and autofocus. Offering clear video quality day and night, it features continuous 360° pan, WDR – Forensic Capture, and Axis Zipstream technology. With versatile mounting options, weather resistance, and operating temperatures from -20 °C to 50 °C, it includes a microSD card slot for local video storage, I/O ports, and two-way audio.
Product Family	AXIS M5525-E PTZ Network Camera
Product Type	Camera

[/properties] [specifications]

Specifications	AXIS M5525-E PTZ Network Camera
Camera
Image sensor	1/2.8” progressive scan CMOS
Lens	4.7–47 mm, F1.6–3.0
	Horizontal field of view: 61.8°–6.7°
	Vertical field of view: 37.2°–3.8°
	Autofocus, auto-iris
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.45 lux at 30 IRE F1.6
	B/W: 0.01 lux at 30 IRE F1.6
	Color: 0.55 lux at 50 IRE F1.6
	B/W: 0.01 lux at 50 IRE F1.6
Shutter speed	1/66500 s to 2 s
Pan/Tilt/Zoom	Pan: 360° endless, 1.8°–150°/s
	Tilt: 90°,1.8°–150°/s
	10x optical zoom, 12x digital zoom, total 120x zoom
	Nadir flip, 100 preset positions, limited guard tour, control queue,
	on-screen directional indicator
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
Video compression	Motion JPEG
Resolution	1920x1080 to 320x180
Frame rate	Up to 25/30 fps with power line frequency 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264 and Motion
	JPEG
	Axis Zipstream technology in H.264
	Controllable frame rate and bandwidth
	VBR/MBR H.264
Image settings	Saturation, brightness, sharpness, WDR – forensic capture, white
	balance, exposure mode, exposure zones, compression, text
	and image overlay, 20 individual 3D privacy masks, contrast,
	scene profiles, image freeze on PTZ, local contrast, max shutter,
	max gain, noise/motion priority, aperture lock, exposure level,
	rotation: 0°, 180°
Audio
Audio streaming	Two-way, full duplex
Audio encoding	AAC-LC 8/16/32 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz,
	Opus 8/16 kHz, LPCM 32 kHz
	Configurable bit rate
Audio input/output	External microphone input or line input, line output
Network
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, Digest authentication, User access log, Centralized Certificate Management, Brute force delay protection
Security	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols	IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Supported protocols	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection
	ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org
Event conditions	Analytics, edge storage events
	Detectors: day/night mode, live stream accessed, audio detection
	Hardware: network, temperature
	Input Signal: digital input port, manual trigger, virtual inputs
	PTZ: error, moving, preset reached, ready
	Storage: disruption, recording
	System: system ready
	Time: recurrence, use schedule
Event actions	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share, and email
	Pre- and post-alarm video or image buffering for recording or upload
	Notification: email, HTTP, HTTPS, TCP, and SNMP trap
	PTZ: PTZ preset, start/stop guard tour
	Overlay text, play audio clip, external output activation, WDR mode
Data streaming	Event data
Built-in installation aids	Pixel counter
Analytics
Applications	Included
	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
	AXIS Video Motion Detection, audio detection, advanced
	gatekeeper
	Supported
	AXIS Cross Line Detection
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66-, NEMA 4X- and IK09-rated
Casing	Repaintable plastic casing, polycarbonate (PC) dome
Sustainability	PVC free
Memory	512 MB RAM, 256 MB Flash
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	Typical 6.6 W, max 12.95 W
	20–28 V DC, typical 6.3 W, max 13 W
	(PoE midspan and power supply not included)
Connectors	RJ45 10BASE-T/100BASE-TX PoE
	DC input terminal block
	I/O: 6–pin terminal block with push-in spring connection for
	four configurable inputs/outputs
	Audio: mic/line in, line out terminal block with push-in spring
	connection
Storage	Support for microSD/SDHC/SDXC card (not included)
	Support for SD card encryption
	Support for recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-20 °C to 50 °C) (-4 °F to 122 °F)
Operating conditions	Humidity 15–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
Approvals	EMC
	EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024,
	EN 61000-6-1, EN 61000–6–2, FCC Part 15 Subpart B Class A,
	ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A,
	KC KN32 Class A, KN35
	Safety
	IEC/EN/UL 62368–1, IEC/EN/UL 60950-22, IS 13252
	Environment
	IEC 60068-2–27, IEC 60068–2–6, IEC/EN 60529 IP66,
	IEC/EN 62262 IK09
	Network
	NIST SP500–267
Dimensions	Height: 132 mm (5.2 in), ø 165 mm (6.5 in)
Weight	1.1 kg (2.4 lb)
Weight	Recessed mount (plenum rated): 1.0 kg (2.2 lb)
Included accessories	Conduit adapter 3/4”, smoked dome, adapter bayonette
	Installation Guide, Windows®
	decoder 1-user license
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis’ Application Development Partners available
	at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
Languages	Chinese, Japanese, Korean, Portuguese, Traditional Chinese

[/specifications] [accesories]

Optional accessories

• AXIS T91 Mounting Accessories
• AXIS T94P01L Recessed Mount Kit

[/accesories]

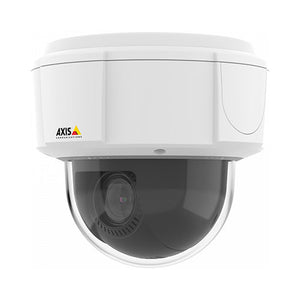

AXIS M5525-E 60HZ PTZ Network Camera

The AXIS M5525-E PTZ Network Camera is a small pan-tilt-zoom camera that offers HDTV 1080p resolution, 10x optical zoom, and autofocus, allowing for high-quality video capture of both wide-angle views and close-up details. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps.

Quick Specs:

HDTV 1080p and 10x optical zoom
Axis Zipstream
Continuous 360 pan
Automatically removable IR cut filter for day and night functionality

Please see the related tabs for the M5525-E PTZ datasheet and compatible accessories.

This product has reached its end-of-life. The recommended replacement model is M5526-E (02769-001)

AXIS M55 PTZ Camera Series

AXIS M5525-E 60HZ PTZ Network Camera (01146-001)
