| Specifications |

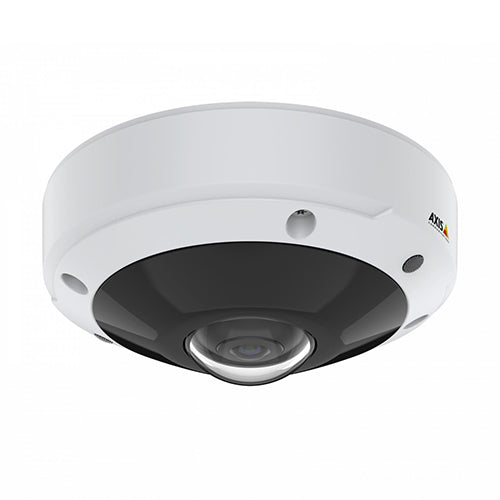

AXIS M3077-PLVE Network Camera |
| Camera |
| Image sensor |
1/1.8” progressive scan RGB CMOS |
| Lens |
1.56 mm, F2.0 |
| Horizontal field of view: 183° |
| Vertical field of view: 183° |
| Fixed iris, fixed focus, IR corrected |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.16 lux at 50 IRE, F2.0 |
| B/W: 0.03 lux at 50 IRE, F2.0 |
| 0 lux with IR illumination on |
| Shutter speed |
1/16000 s to 1 s |
| Camera angle adjustment |
Digital roll: ± 180° |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
Overview: 2016x2016 to 160x160 |
| Panorama: 2560x1440 to 192x72 |
| Double Panorama: 2560x1920 to 384x288 |
| Quad view: 2560x1920 to 384x288 |
| View area 1–4: 1920x1440 to 256x144 |
| Corner right/left: 2368x1184 to 384x288 |
| Double corner: 2016x2016 to 384x288 |
| Corridor: 2560x1920 to 256x144 |
| Frame rate |
360° overview only, up to 2016x2016 without WDR: 50/60 fps |
| @ 50/60 Hz |
| 360° overview and dewarped views up to max resolution with |
| WDR: up to 25/30 fps @ 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Multi-view streaming |
360° overview, dewarped panorama, corridor, corner left/right |
| and quad views. Up to 4 individually cropped out and dewarped |
| view areas. All different views can be streamed simultaneously. |
| When streaming 4 dewarped view areas and one 360° overview |
| in max resolution: up to 19 fps per stream. |
| Image settings |
Compression, color saturation, brightness, sharpness, contrast, |
| local contrast, white balance, day/night threshold, tone mapping, |
| exposure control (including automatic gain control), exposure |
| zones, Forensic WDR: up to 120 dB depending on scene, fine |
| tuning of low-light behavior, dynamic text and image overlay, |
| mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom |
Digital PTZ of view areas, digital PT of panorama, corner, corridor |
| and quad views, preset positions, guard tours |
| Audio |
| Audio streaming |
One-way, simplex, mono or stereo |
| Audio encoding |
LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio output/output |
Two-way audio connectivity via the optional AXIS T61 Audio and |
| I/O Interfaces with portcast technology |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault, Axis device ID |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| AXIS Guardian with One-Click Connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, |
| ONVIF® Profile T specification at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX |
| Onscreen controls |
Day/night shift |
| Wide dynamic range |
| Video streaming indicator |
| IR illumination |
| Event conditions |
Analytics, edge storage events, virtual inputs through API, |
| supervised external inputs, open casing, audio detection |
| MQTT subscribe |
| Event actions |
Record video/audio: SD card and network share |
| MQTT publish |
| Upload of images or video/audio clips: FTP, SFTP, HTTP, HTTPS, |
| network share and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| PTZ: PTZ preset, start/stop guard tour |
| Overlay text, external output activation, play audio clip, zoom |
| preset, day/night mode |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, digital roll, repositioning of quad views, digital |
| PTZ of view areas, digital PT of panorama, corner, corridor and quad views |
| Analytics |
| Applications |
Included |
| AXIS Video Motion Detection, AXIS Motion Guard, |
| AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, |
| audio detection |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate hard coated dome |
| Aluminum |
| Color: white NCS S 1002-B |
| For repainting instructions of skin cover or casing |
| contact your Axis partner |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 8.0 W, max 11.9 W |
| Connectors |
Shielded RJ45 10BASE-T/100BASE-TX PoE |
| Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA) |
| IR illumination |
OptimizedIR with with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 20 m (66 ft) or more depending on scene |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-40 °C to 50 °C) (-40 °F to 122 °F) |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) |
| Maximum temperature (intermittent): 55 °C (131 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| EN 55024, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), |
| VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, |
| KC KN35 |
| Safety |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, |
| IS 13252 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, 60068-2-78, |
| IEC/EN 60529 IP66, IEC/EN 62262 IK10, |
| IEC 60721-3-5 Class 5M3 (vibration and shock), |
| NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 66 mm (2.5 in) |
| ø 149 mm (5.8 in) |
| Weight |
700 g (1.5 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, drill |
| hole template, cable gaskets, connector guard, I/O connector, |
| RESISTORX® TR20 bit, mounting bracket, cable hole lid, view |
| protector |
| Video management software |
AXIS Device Manager, AXIS Companion, AXIS Camera Station, |
| video management software from Axis Application Development |
| Partners available at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
