| Specifications |

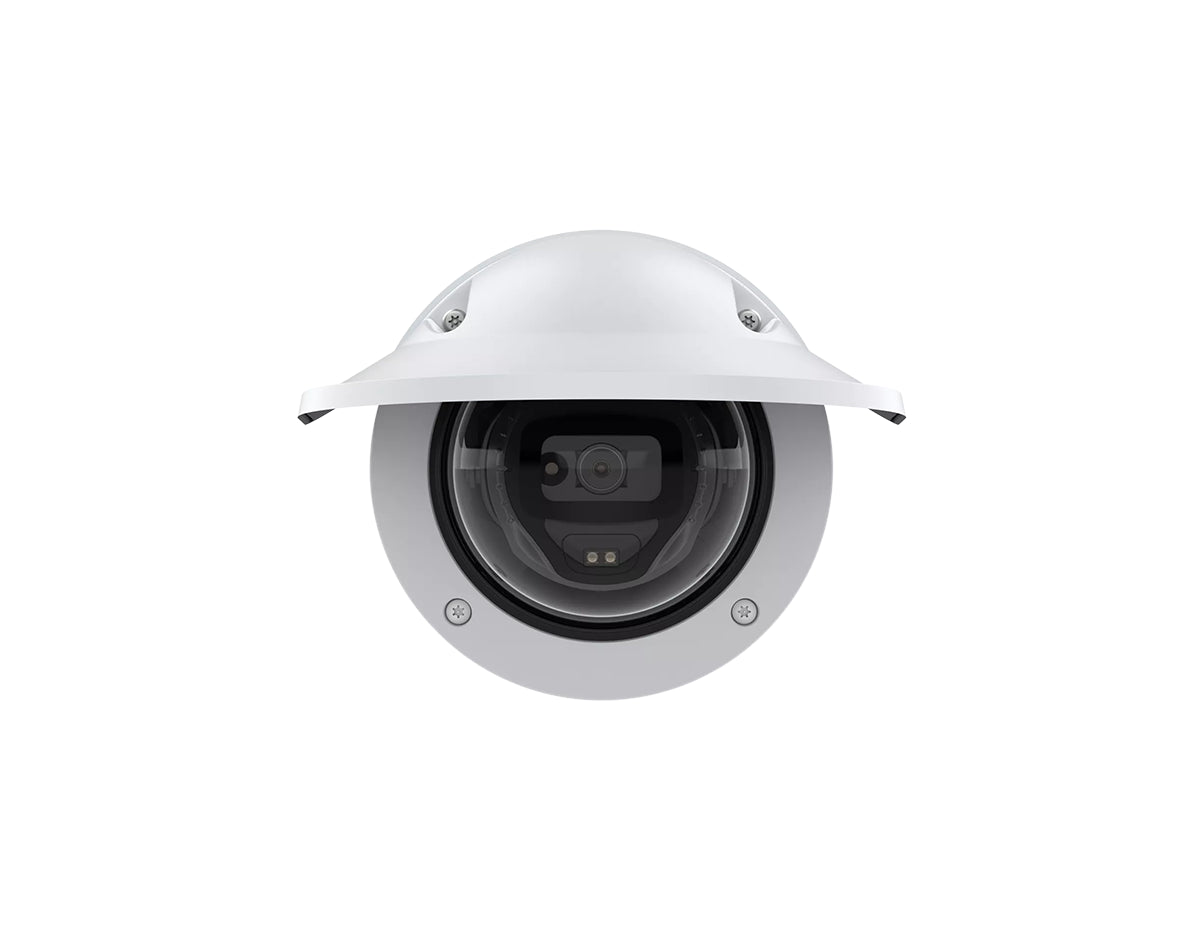

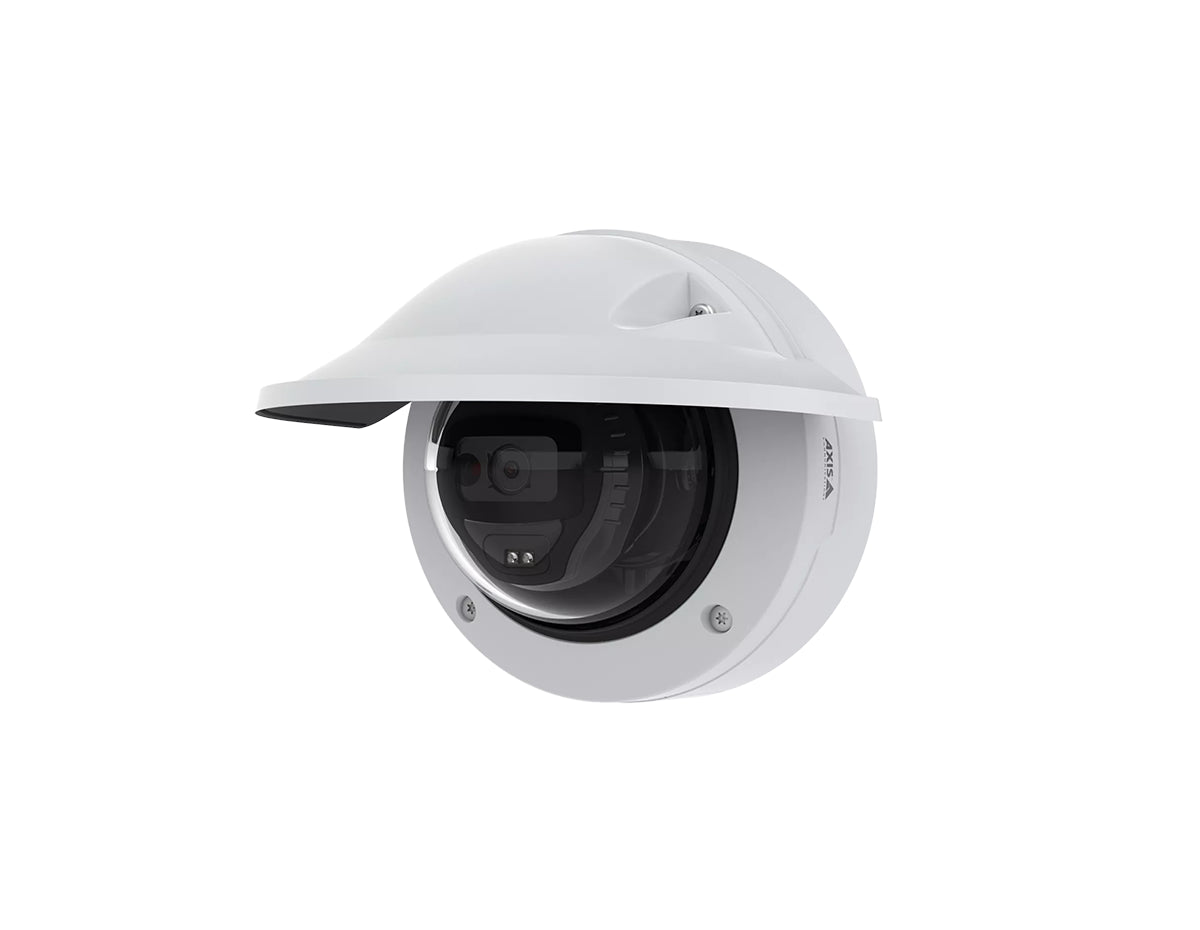

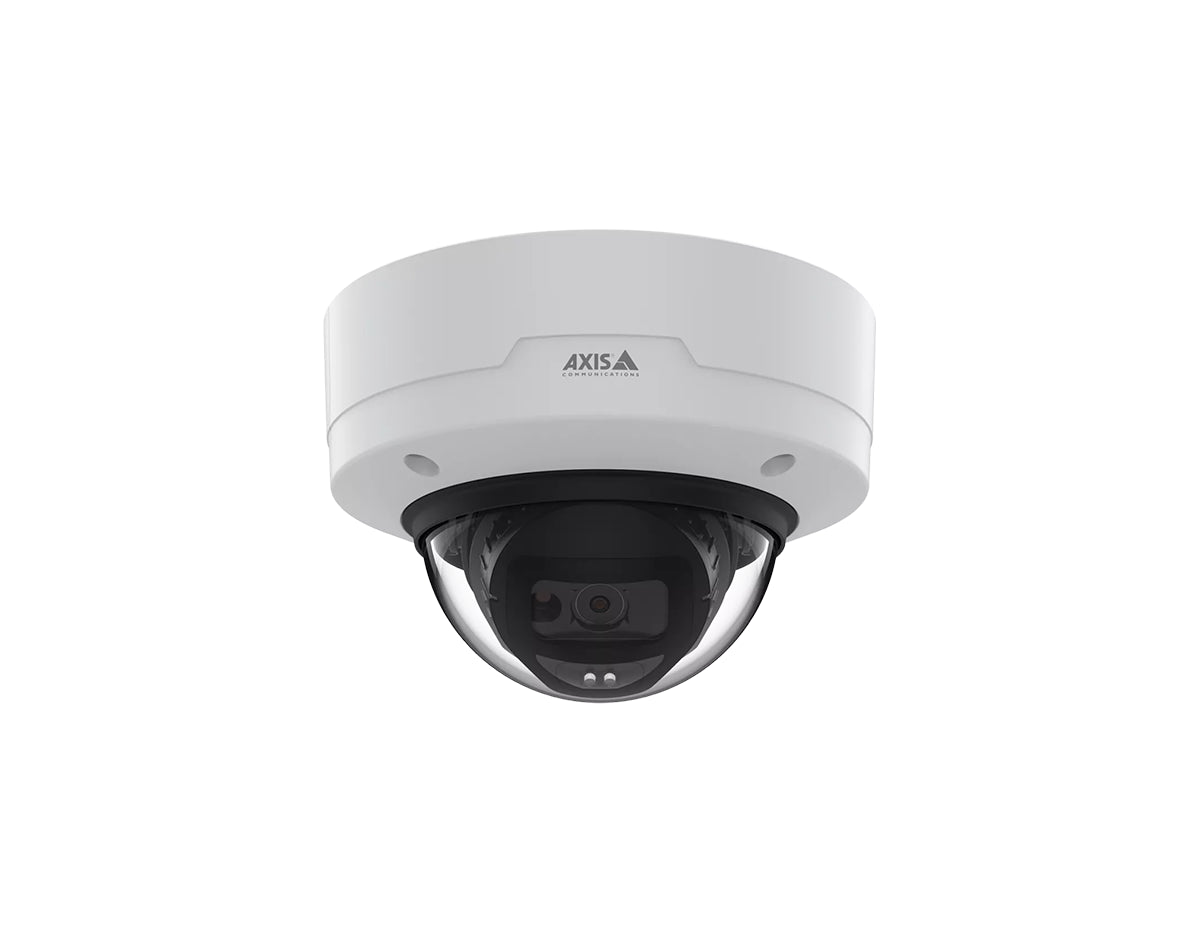

AXIS M3215-LVE Network Camera |
| Camera |
| Image sensor |
1/2.9” progressive scan RGB CMOS |
| Lens |
3.1 mm, F2.0 |
| Horizontal field of view: 101° |
| Vertical field of view: 55° |
| Minimum focus distance: 1.0 m (3.3 ft) |
| Fixed iris, IR corrected |
| Day and night |
Automatic IR-cut filter |
| Hybrid IR filter |
| Minimum illumination |
With WDR and Lightfinder: |
| Color: 0.14 lux at 50 IRE, F2.0 |
| B/W: 0 lux at 50 IRE, F2.0 |
| 0 lux with IR illumination on |
| Shutter speed |
1/37000 s to 2 s |
| Camera angle adjustment |
Pan ±190° |
| Tilt -10 to +80° |
| Rotation ±190 |
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
1024 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
16:9: 1920x1080 to 160x90 |
| Frame rate |
Up to 30/25 fps (60/50 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Multi-view streaming |
Up to 8 individually cropped-out view areas |
| Image settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to |
| 120 dB depending on scene, white balance, day/night threshold, |
| local contrast, tone mapping, exposure mode, exposure zones, |
| defogging, barrel distortion correction, compression, rotation: 0°, |
| 90°, 180°, 270° including Corridor Format, mirroring, dynamic |
| text and image overlay, polygon privacy mask |
| Pan/Tilt/Zoom |
Digital PTZ |
| Audio |
| Audio streaming |
Two-way audio via edge-to-edge technology |
| Audio encoding |
AAC 8/16/32/44.1/48 kHz, G.711 8 kHz, G.726 8 kHz, Opus |
| 8/16/48 kHz, LPCM 48 kHz |
| Configurable bit rate |
| Audio input/output |
External microphone input or line input, ring power, digital audio |
| input, automatic gain control |
| Network speaker pairing |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS |
| Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), |
| UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, |
| RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, |
| ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC |
| 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX. |
| Onscreen controls |
Day/night shift |
| Defogging |
| Wide dynamic range |
| Video streaming indicator |
| IR illumination |
| Enable-disable all privacy masks |
| Play media clip |
| Event conditions |
Analytics, external input, supervised external input, virtual inputs |
| through API |
| Digital audio: digital signal contains Axis metadata, digital signal |
| has invalid sample rate, digital signal missing, digital signal okay |
| I/O: digital input, manual trigger, virtual input |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, ring power overcurrent protection, |
| live stream active, casing open |
| Call: state, state change |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| Audio: audio detection, audio clip playing, audio clip currently playing |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| Scheduled and recurring: schedule |
| MQTT: stateless |
| Event actions |
Overlay text, day/night mode, flash status LED, use lights, set |
| defog mode, set WDR mode |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Audio clips: play, stop |
| Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Calls: answer call, end SIP call, make SIP call |
| SNMP traps: send, send while the rule is active |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, straighten image, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, crossline counting, |
| occupancy in area, time in area |
| Up to 10 scenarios |
| Metadata visualized with trajectories, color-coded bounding |
| boxes and tables |
| Polygon includes/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active |
| tampering alarm, audio detection |
| AXIS Live Privacy Shield |
| AXIS Scene Metadata |
| AXIS Image Health Analytics |
| Supported |
| Support for AXIS Camera Application Platform enabling |
installation of third-party applications, see axis.com/acap |
| Approvals |
| EMC |
EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A |
| Canada: ICES-3(A)/NMB-3(A) |
| Japan: VCCI Class A |
| Korea: KC KN35KC, KN32 Class A |
| USA: FCC Part 15 Subpart B Class A |
| Safety |
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471 risk group |
| exempt, IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network |
NIST SP500-267 |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis |
| device ID, secure keystore, signed video, secure boot, encrypted |
| filesystem (AES-XTS-Plain64 256bit) |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 |
| Certificate PKI, IP address filtering |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome |
| Plastic casing, sunshield (PC/ASA) |
| Color: white NCS S 1002-B |
| For repainting instructions, go to the product’s support |
| page. For information go to |
| axis.com |
| This product can be repainted. |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, and 4” octagon) and for wall or ceiling mount |
| ½” (M20) or ¾” (M25) conduit side entry, with conduit adapter |
| Sustainability |
PVC free, 4.1% recycled plastics |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.8 W, max 10.4 W |
| Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised |
| digital input and 1 digital output (12 V DC output, max. Load 25 mA) |
| Audio: 3.5 mm mic/line in |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 30 m (98 ft) or more depending on the scene |
| Storage |
Support for microSD/microSDHC/microSDXC card and encryption |
| Recording to network-attached storage (NAS) |
| Operating conditions |
(-40 °C to 50 °C) (-40 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Dimensions |
Without weathershield: |
| Height: 102 mm (4.0 in) |
| ø 149 mm (5.9 in) |
| Weight |
With weathershield: |
| 783 g (1.73 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, drill hole |
| template, RESISTORX® TR20 bit, terminal block connector, cable |
| gaskets, connector guard, weathershield |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Sustainability |
| Substance control |
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard |
| JS709 |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and |
| EN 63000:2018 |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID, |
| see echa.europa.eu |
| Materials |
Renewable carbon-based plastic content: 12% (bio-based) |
| Screened for conflict minerals in accordance with OECD |
| guidelines |
