[properties]

Properties	UniFi Dream Router (UDR)
Description	Ubiquiti UDR Router: Harness WiFi 6's four-stream tech, 128 GB storage, 5 GHz, 2.4 GHz bands, multiple ports, and Micro SD slot.
Product Family	Ubiquiti UniFi
Networking Interface	(4) LAN: GbE RJ45 ports (1) WAN: GbE RJ45 port
PoE interface	(2) PoE
Power Method	Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz
Power Supply	AC/DC, internal, 50W
Maximum Power Consumption	19.37W (Excluding PoE output)
PoE budget	32W
Max. PoE wattage per port by PSE	15.4W
Voltage range PoE mode	44—57V DC
Dimensions	Ø 110 x 184.1 mm (Ø 4.33 x 7.3")
Power Save	Supported
Beamforming	Supported

[/properties][specifications]

Specifications	UDR
Processor	Dual-core Cortex A53 at 1.35 GHz
System Memory	2 GB
On‑Board Flash Storage	16 GB
Internal Storage	128 GB
TX Power	2.4 GHz: 26 dBm 5 GHz: 26 dBm
Antenna	(1) Internal, Quad‑Polarity Antenna
Antenna Gain	2.4 GHz: 3.4 dBi 5 GHz: 4.3 dBi
2.4 GHz MIMO 5 GHz MU-MIMO	4 x 4 4 x 4
2.4 GHz Radio Rate 5 GHz Radio Rate	600 Mbps 2.4 Gbps
Wi‑Fi Standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
VLAN	802.1Q
Concurrent clients	300+
BSSID	8 per Radio
Operating Temperature	‑10 to 45° C (14 to 113° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

[/specifications]

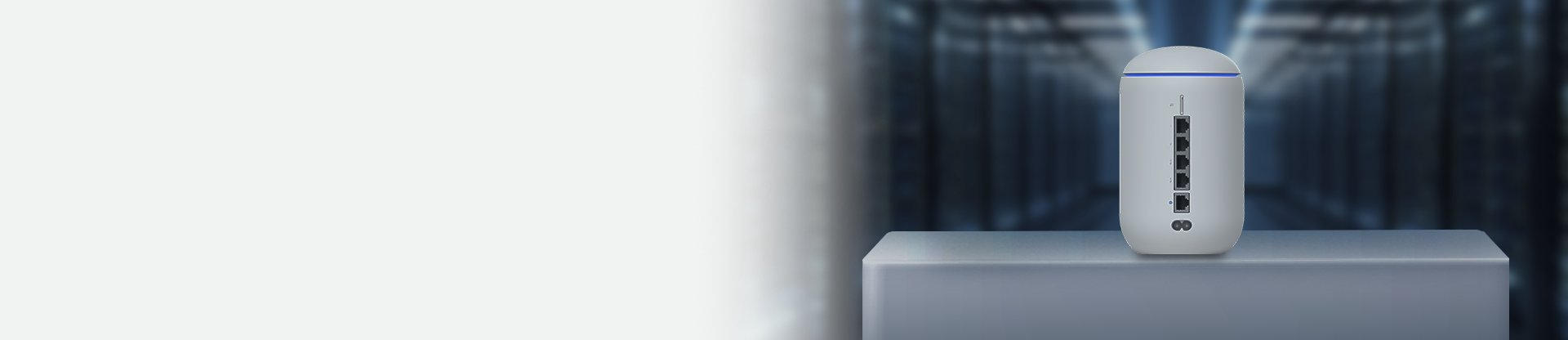

Ubiquiti UDR-US Router

The next-generation Wi-Fi 6 router, the UDR-US, offers unparalleled performance at an unbeatable price. The UDR-US ensures high-quality connectivity for all devices with its advanced 4x4 MU-MIMO and OFDMA technology. Its aggregate wireless throughput rate over its 2.4 and 5 GHz bands is up to 3 Gbps. Additionally, this product has five GbE RJ45 ports, two of which provide PoE to compatible devices. The LCM color screen on the router makes monitoring all the connections on the UDR-US easy.

Quick Specs:

Four-stream WiFi 6 Technology
128 GB of internal storage
4x LAN ports, including 2x 802.3af PoE outputs
1x WAN GbE RJ45 port

Please see the related tabs for the UDR-US datasheet and compatible accessories.
