HPE ARUBA INSTANT ON 1930 24G CLASS4 POE 4SFP/SFP+ 370W SWITCH (JL684A)
| Model: | JL684A |
| Detail: |
Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2,
< |
| List Price: | |
| Price: | $470.00 |
| You Save: | $201.00 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

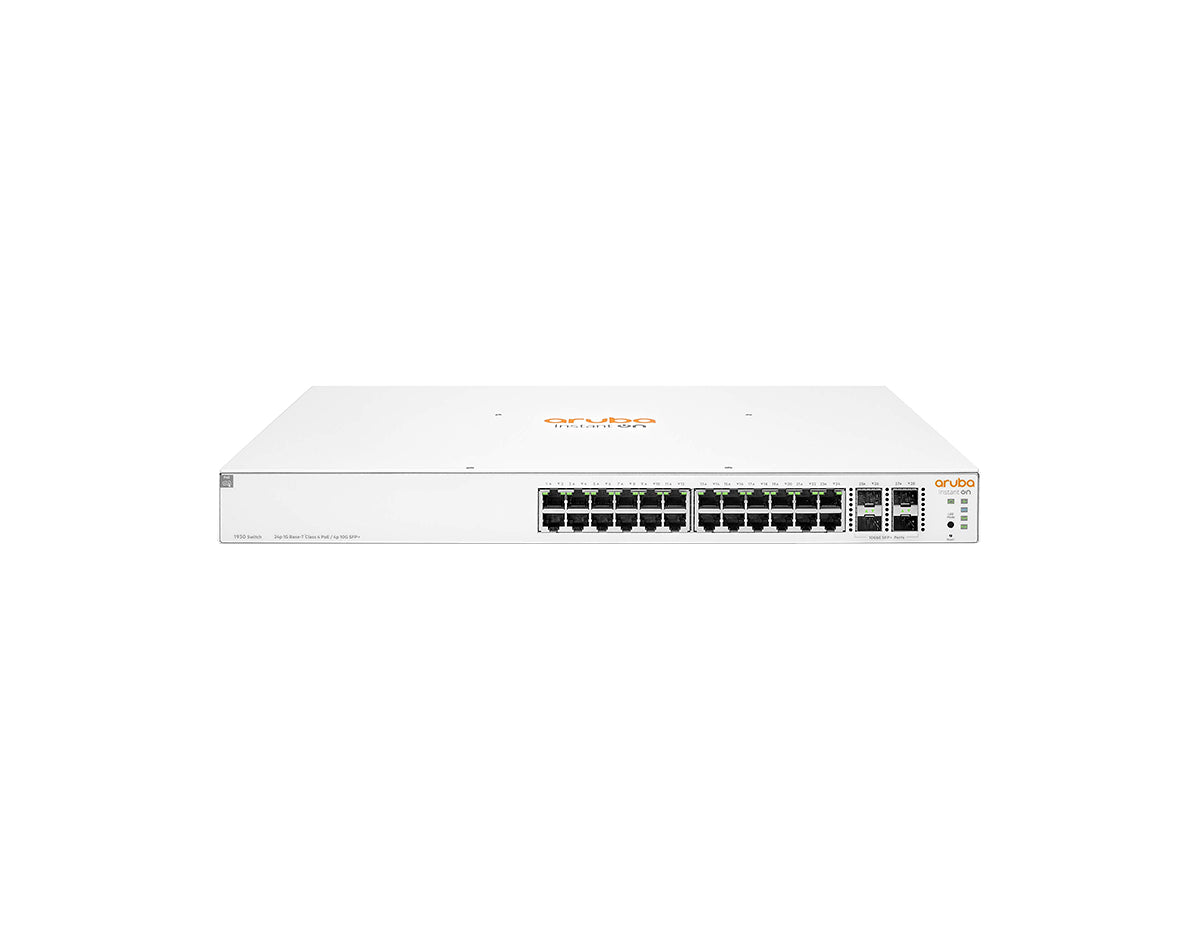

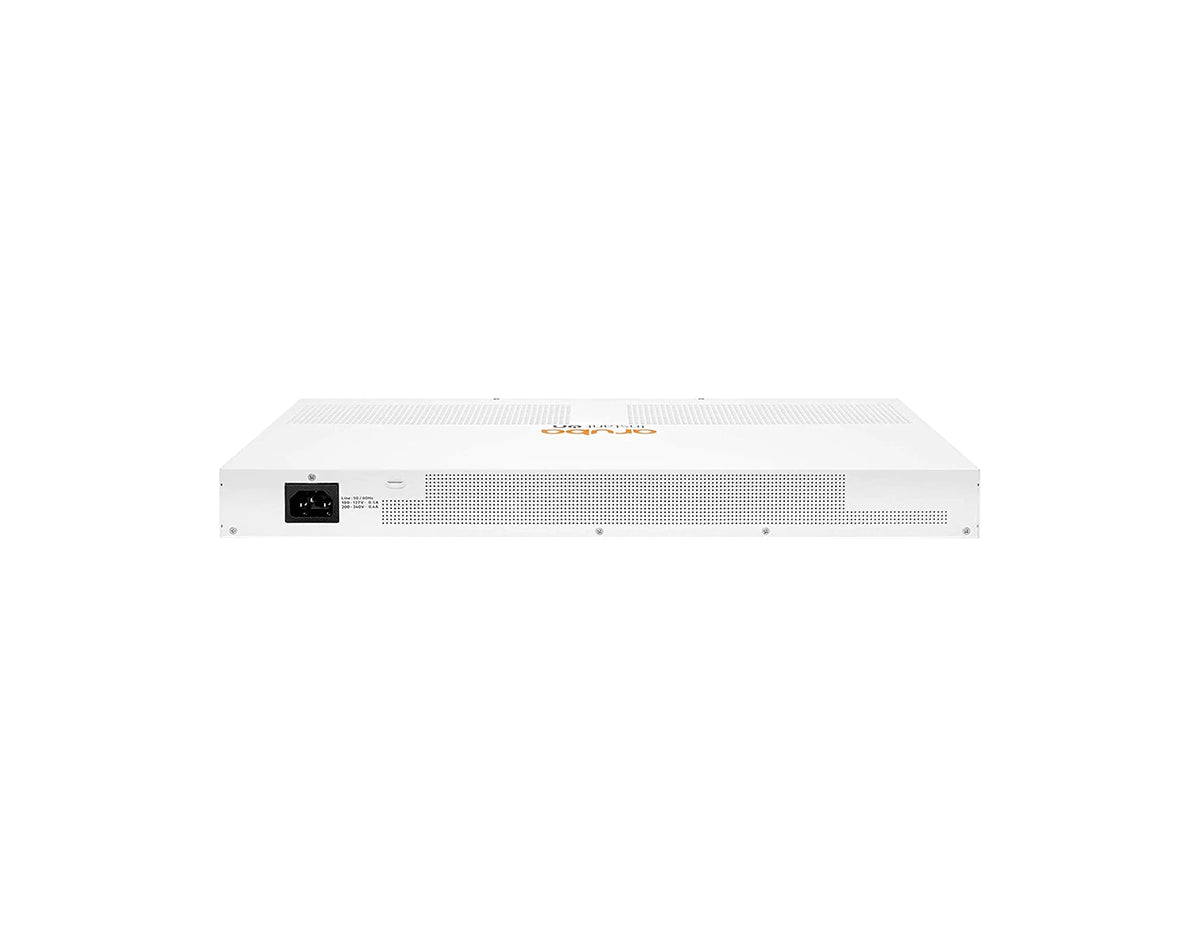

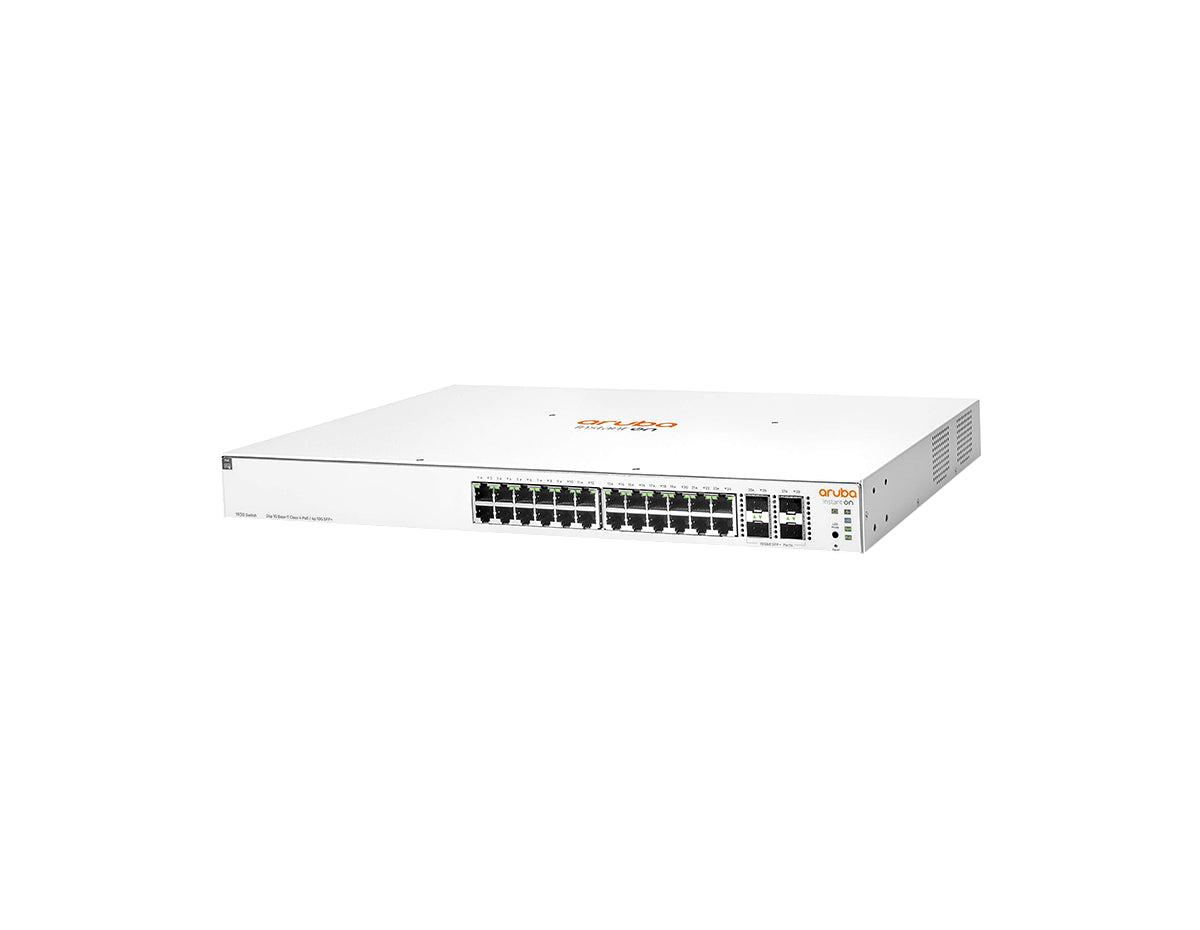

HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A)
The HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A) is a high-performance smart-managed switch designed to meet the networking needs of growing businesses. With 24 Gigabit Ethernet ports and Power over Ethernet (PoE) capabilities, this switch simplifies the deployment of devices such as wireless access points, IP cameras, and VoIP phones. It also features 4 SFP/SFP+ uplink ports that support speeds up to 10Gbps, ensuring fast and reliable network performance.
Key Features:
- 24 x 1GbE Class 4 PoE Ports: Provides up to 30W per port, powering connected devices such as access points and IP cameras, reducing the need for additional power cables.
- 4 x SFP/SFP+ Uplink Ports: Supports uplinks at speeds of up to 10Gbps, enabling high-speed connectivity to the network core.
- PoE Power Budget: Offers a 370W PoE power budget, making it suitable for power-hungry devices across your network.
- Smart-Managed Layer 2+ Features: Includes VLANs, link aggregation, static routing, and ACLs, providing businesses with the tools to effectively manage and segment their network traffic.
- Energy-Efficient Operation: Meets IEEE 802.3az standards, reducing power consumption during periods of low network activity.
Technical Overview:
- Recommended for: Small and medium-sized businesses, retail stores, and branch offices.
- Ports: 24 x 1GbE Class 4 PoE ports, 4 x 1G/10G SFP/SFP+ uplink ports.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.23 Mpps.
- PoE Power Budget: 370W for powering connected PoE devices.
- Layer 2+ Features: Supports VLANs, link aggregation, static routing, and ACLs for advanced network control.
- Management: Managed via the Aruba Instant On mobile app and cloud-based web GUI.
- Security: Supports IEEE 802.1X, MAC-based authentication, and Access Control Lists (ACLs) for enhanced network security.
You can check the related tab for the JL684A datasheet.
Accessories
| Transceivers | |
| R9D16A | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| R9D17A | Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver |
| R9D18A | Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver |
| J9151E | Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| R9D19A | Aruba Instant On 10G SFP+ to SFP+ 1m DAC |
| R9D20A | Aruba Instant On 10G SFP+ to SFP+ 3m DAC |
Specifications
| Specifications | JL684A |
| Memory and processor | ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer |
| Performance | |
| 100 Mbps Latency | < 4.7 uSec |
| 1000 Mbps Latency | <2.4 uSec |
| 10 Gbps Latency | < 1.3 uSec |
| Throughput | 95.23 Mpps |
| Switching Capacity | 128 Gbps |
| Routing Table size | 32 static entries |
| Mac Address Table Size | 16,000 entries |
| MTBF (years) | 71 |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | LWAd = 3.7 Bel LpAm (Bystander) = 23 Db |
| Safety | UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
| Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016/CISPR-32, Class A |
| Immunity | CISPR 24 / CISPR 35 EN 55024:2010 / EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
Properties
| Properties | HPE Aruba JL684A |
| Description | Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On œanywhere, anytimeconfiguration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power. |
| Product Family | Instant On 1930 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| 4 SFP+ 1/10GbE ports | |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 127 / 200 - 240 VAC |
| Current | 4.9 A/2.4 A |
| Maximum power rating | 440.4W |
| Idle power | 20.3W |
| PoE power | 370 W Class 4 PoE |
| Power supply | Internal power supply |
| Dimensions | 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height) |
| Weight | 8.23 lb (3.73 kg) |
| Mounting | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rackmounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
