AXIS FA3105-L Eyeball Sensor Unit - Network Devices Inc

AXIS FA3105-L Eyeball Sensor Unit (01026-001)

Name: AXIS FA3105-L Eyeball Sensor Unit (01026-001)
Brand: Axis
SKU: 01026-001-NEW
Price: 177.45 USD
Availability: InStock

Part Number: 01026-001

Technical Details

Discreet indoor 1080p surveillance with IR, Flexible flat-faced dome for indoor surveillance, Eyeball design for optimized installation flexibility, Built-in IR for video in complete darkness, Forensic WDR, Corridor format for vertically oriented coverage areas

$177.45

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS FA3105-L Eyeball Sensor Unit (01026-001)

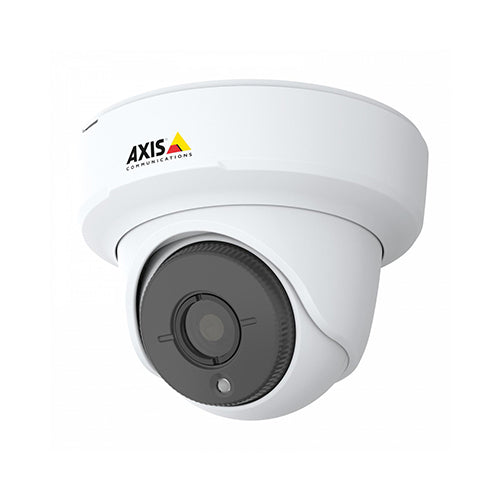

The AXIS FA3105-L Eyeball Sensor Unit is a compact day/night sensor unit equipped with integrated IR illumination, designed for seamless integration with the AXIS FA54 Main Unit. This discreet and easily installable unit offers high-quality image usability around the clock, making it an ideal choice for surveillance in environments such as banks, gas stations, and retail stores.

Quick Specs:

Eyeball design for optimized installation flexibility
Built-in IR for video in complete darkness
Forensic WDR
Corridor format for vertically oriented coverage areas

Please see the related tabs for the 01026-001 datasheet and compatible accessories.

Feature	AXIS FA1080-E Thermal Sensor Unit	AXIS FA1105 Sensor Unit	AXIS FA1125 Sensor Unit	AXIS FA3105-L Eyeball Sensor Unit	AXIS FA4090-E Thermal Sensor Unit	AXIS FA4115 Dome Sensor Unit
Horizontal field of view	35.4 / 63	111	91	103	35.4	99-53
Built-in IR	-	-	-	✔	-	-
Thermal sensitivity (NETD)	<100 mK	-	-	-	<100 mK	-

Properties

Properties	AXIS FA3105-L Eyeball Sensor Unit
Description	AXIS FA3105-L Eyeball Sensor Unit is a day/night sensor unit with built-in IR illumination in a very small form factor for use with AXIS FA54 Main Unit.
Product Family	Axis Cameras
Product Type	Sensor Unit
Main units	AXIS FA54 Main Unit: High-performance multi-view surveillance with Forensic WDR
Image sensor	1/3” (effective) progressive scan RGB CMOS
Lens	Fixed iris
Wide dynamic range	Forensic WDR
HTTPS encryption	–
IEEE 802.1X	–
Built-in IR	Yes
Local storage (memory card slot)	–
Outdoor Ready	–
Vandal rating	–
IP rating	–
Dimensions	57 mm (2 1/4 in) ø 72.7 mm (2 7/8 in)
Weight	88 g (0.19 lb)
Operating Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Power (max)	1.5 W
Power (average)	1.2 W

Specifications

Specifications	AXIS FA3105-L
Min illumination/ light sensitivity (Color)	0.2 lux
Max video resolution	1920x1080
Max frames per second	25/30
Day and Night functionality	Yes
Electronic image stabilization	–
Focal length	3.13 mm
Varifocal lens	No
Aperture	2.0
Horizontal field of view	103 °
Vertical field of view	55 °
Lens mount	–
Replaceable lens	–
Zipstream	-
H.264	-
H.265	-
Motion JPEG	-
Audio Support	-
Sustainability	PVC free

Accessories

Included accessories
AXIS F7308	Indoor cable 8 m for P12 cameras and FA sensors
Mounting bracket	For flexible installation
Optional accessories
AXIS F7301	Cable Black 1 m
AXIS F7315	Cable White 15 m
