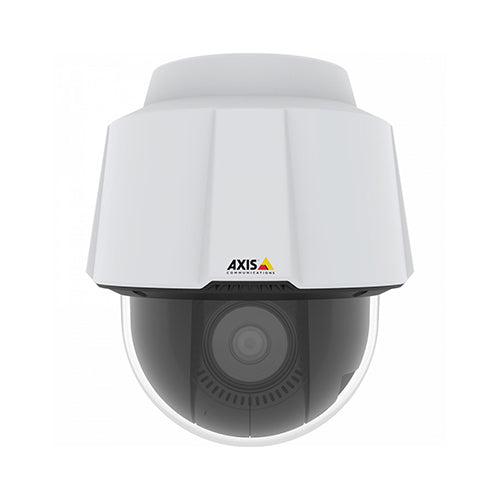

AXIS P5655-E 60HZ PTZ NETWORK CAMERA
| Model: | 01682-004 |
| Detail: |
|
| List Price: | |
| Price: | $1,735.00 |
| You Save: | $164.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
AXIS P5676-LE 60 Hz PTZ Camera (02414-001)
The AXIS P5676-LE provides high-quality 4 MP imaging capabilities and a 30x optical zoom. Its Forensic WDR and Lightfinder 2.0 technologies ensure the capture of vividly colored and sharply detailed images of moving objects, even in low light or challenging lighting conditions. Additionally, this advanced PTZ camera is equipped with integrated cybersecurity measures to protect against unauthorized access and safeguard the system. The AXIS P5676-LE also offers exceptional light sensitivity and supports advanced analytics.
Quick Specs:
- 4 MP with 30x optical zoom
- Forensic WDR, Lightfinder 2.0, IR Illumination
- Support for advanced analytics
- Zipstream with support for H.264/265
Please see the related tabs for the 02414-001 datasheet and compatible accessories.
| Feature | AXIS P5654-E Mk II | AXIS P5655-E | AXIS P5676-LE |
|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 2688x1512 |
| Horizontal field of view | 77.0-3.6 | 58.3-2.4 | 57.1-2.1 |
| Alarm inputs/outputs | 4 | 4 | 4 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ |
| Optical zoom | 21 | 32 | 30 |
| Pan range | 360 endless | 360 endless | 360 endless |
| Two-way audio | – | ✔ | ✔ |
| Vandal rating | IK10 | IK10 | IK10 |
Accessories
| Optional accessories | • AXIS TP6902-E Adapter Bracket • AXIS T91B mounts • AXIS T8154 60 W SFP Midspan • Outdoor RJ45 cable • AXIS 10-pin Push-Pull System Connector • AXIS Multicable C I/O Audio Power 1 m/5 m |
Specifications
| Specifications | AXIS P5676-LE 60 Hz PTZ Camera |
| Camera | |
| Image sensor | 1/2.9” progressive scan RGB CMOS |
| Lens | Varifocal, 4.5-135 mm, F1.6 - 4.6 |
| Horizontal field of view: 57.1°- 2.1° | |
| Vertical field of view: 34.4°- 1.2° | |
| Minimum focus distance: 1.3 m (4.3 ft) | |
| P-Iris control | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.11 lux at 50 IRE F1.6 |
| B/W: 0.03 lux at 50 IRE F1.6 | |
| 0 lux with IR illumination on | |
| Shutter speed | 1/62500 s to 1/5 s with 60 Hz |
| Pan/Tilt/Zoom | Pan: 360° endless, 0.1°- 350°/s |
| Tilt: 0-90°, 0.1°- 350°/s | |
| Zoom: 30x optical, 12x digital, Total 360x zoom | |
| 256 preset positions, nadir flip, limited guard tour, control queue, | |
| on-screen directional indicator, set new pan 0°, focus recall, | |
| spot focus | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Compute capabilities | Machine learning processing unit (MLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | (16:9) 2688x1512 to 320x180 |
| Frame rate | Up to 60/50 fps (60/50 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Controllable frame rate and bandwidth | |
| Axis Zipstream technology in H.264 and H.265 | |
| VBR/ABR/MBR H.264/H.265 | |
| Low latency mode | |
| Video streaming indicator | |
| Image settings | Compression, saturation, brightness, sharpness, contrast, local |
| contrast, white balance, exposure control, exposure zones, | |
| Forensic WDR: Up to 120 dB depending on scene, defogging, | |
| day/night shift level, tone mapping, fine-tuning of low-light | |
| behavior, rotation: 0°, 180°, text and image overlay, image | |
| freeze on PTZ, electronic image stabilization, barrel distortion | |
| correction, 20 individual polygon and mosaic privacy masks, | |
| orientation aid PTZ, target aperture | |
| Scene profiles: forensic, indoor, outdoor, traffic overview | |
| Audio | |
| Audio streaming | Two-way audio via network speaker pairing |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input, line output (Requires |
| Axis 10-pin Push-pull System Connector or Axis Multicable C I/O | |
| Audio Power 1 m/5 m, not included), automatic gain control | |
| Network | |
| Security | IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at | |
| axis.com/developer-community. ACAP includes Native SDK . | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specifications at onvif.org | |
| Event conditions | Audio: audio clip playing, audio detection |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, fan | |
| failure, IP address removed, network lost, new IP address, PTZ | |
| power failure, storage failure, system ready, within operating | |
| temperature | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT: subscribe | |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position | |
| reached, PTZ ready | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Audio clips: play, stop |
| Day-night mode | |
| Guard tour | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| IR illumination: turn on, use lights while the rule is active | |
| MQTT: publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Preset positions | |
| PTZ Autotracking: start temporary detection, toggle, toggle | |
| profile | |
| Recordings: SD card and network share | |
| SNMP trap messages: send, send while the rule is active | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| WDR mode | |
| Built-in installation aids | Pixel counter, leveling guide |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles |
| Features: line crossing, object in area, crossline countingBETA , | |
| time in areaBETA | |
| Up to 10 scenarios | |
| Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Metadata | Object data: Classes: humans, faces, vehicles, license plates |
| Confidence, position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection | |
| Audio detection, active gatekeeper | |
| Autotracker 2 | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication, password protection, AES-XTS-Plain64 256bit | |
| SD card encryption | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), Axis device ID, secure keystore, | |
| signed video, secure boot | |
| Network security | IEEE 802.1X (EAP-TLS)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate (PC) casing | |
| Color: white NCS S 1002-B, repaintable skin cover | |
| For repainting instructions of casing and impact on warranty, | |
| contact your Axis partner. | |
| Power | Camera consumption: typical 13 W (no IR), max 25.5 W |
| IEEE 802.3at Type 2 Class 4 | |
| Camera consumption: typical 13 W (no IR), max 29 W | |
| IEEE 802.3bt Type 3 Class 6 | |
| Multiconnector: | |
| 20–28 V DC, typical 13 W, max 30 W | |
| 20–24 V AC, typical 20 VA, max 43 VA | |
| (High PoE midspan or power supply not included) | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| RJ45 push-pull connector (IP66) included | |
| With Axis 10-pin push-pull system connector or Axis | |
| multicable C I/O audio power 1 m/5 m (not included): | |
| I/O connector for DC or AC input, 4 configurable alarm | |
| Inputs/outputs: mic in/line in, line out | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| With 30 W midspan: Range of reach 200 m (656 ft) or more | |
| depending on the scene. The range is temporarily reduced during | |
| PTZ movements. | |
| Storage | Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-30 °C to 50 °C) (-22 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Start-up temperature: -30 °C | |
| Humidity 10–100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) | |
| Approvals | EMC |
| CISPR 35, CISPR 32 Class A, EN 55032 Class A, EN 55035, | |
| EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, | |
| EN 61000-6-2 | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Japan: VCCI Class A | |
| Korea: KS C 9835, KS C 9832 Class A | |
| USA: FCC Part 15 Subpart B Class A | |
| Safety | |
| IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, | |
| IEC 62471 risk group 2 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, | |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), | |
| ISO 21207 (Method B) | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 242 mm (9.53 in) |
| ø 205 mm (8.1 in) | |
| Weight | 2.5 kg (5.5 lb) |
| Included accessories | RJ45 Push-pull plug (IP66), installation guide, Windows® decoder |
| 1-user license | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional | |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, | |
| Vietnamese | |
| Sustainability | |
| Substance control | PVC free RoHS in accordance with EU RoHS Directive 2011/65/EU/ and EN 63000:2018 REACH in accordance with (EC) No 1907/2006. For SCIP UUID, see echa.europa.eu |
| Materials | Renewable carbon-based plastic content: 22% (recycled) Screened for conflict minerals in accordance with OECD guidelines To read more about sustainability at Axis, go to axis.com/about-axis/sustainability |
Properties
| Properties | AXIS P5676-LE 60 Hz PTZ Camera |
| Description | The AXIS P5676-LE PTZ Camera is a high-performance 4 MP camera with 30x optical zoom, IR illumination, and advanced features like Forensic WDR and Lightfinder 2.0. It supports analytics, including AXIS Object Analytics for people and vehicle detection. Built-in cybersecurity features enhance system security, and Axis Zipstream reduces bandwidth and storage requirements. Additionally, it can be integrated into an AXIS Q6100-E for a 360° overview using the AXIS TP6902-E Adapter Bracket. |
| Product Family | AXIS P5676-LE PTZ Camera |
| Product Type | Thermal Camera |
