| Specifications |

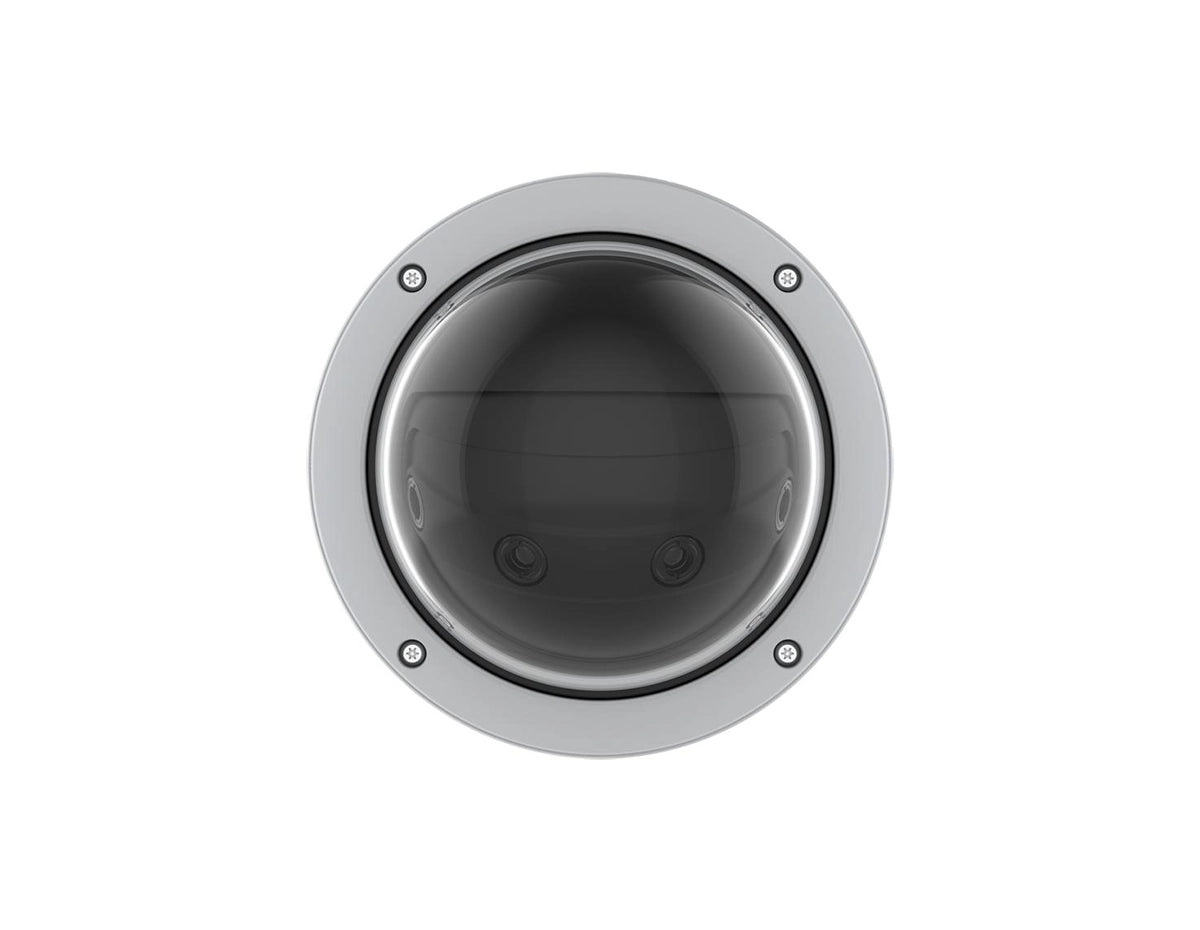

AXIS Q3819-PVE Panoramic Camera |
| Camera |
| Image sensor |
4 x 5 MP 1/2.5” progressive scan RGB CMOS |
| Lens |
Fixed 5.9 mm, F1.88 |
| Horizontal field of view: 180° |
| Vertical field of view: 38° |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.16 lux, F2.0 |
| B/W: 0.06 lux, F2.0 |
| Shutter speed |
1/40000 to 1/25 s |
| Camera angle adjustment |
Pan ± 135° |
| Tilt 15° to 92° |
| Roll ± 8° |
| System on chip (SoC) |
| Model |
ARTPEC-7 (x2) |
| Memory |
2048 MB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
8192x1728 (14.2 MP) to 608x128 |
| Frame rate |
14.2 MP @ 25/30 fps (50/60 Hz) WDR |
| Video streaming |
One configurable stream in H.264, H.265 and Motion JPEG in |
| full frame rate |
| Multiple individually configurable streams in reduced frame rate |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Image settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to |
| 120 dB depending on scene, white balance, day/night threshold, |
| exposure mode, compression, dynamic text and image overlay, |
| orientation aid, exposure control, noise reduction, fine tuning of |
| behavior at low light, polygon privacy masks |
| Audio |
| Audio streaming |
Two-way audio via edge-to-edge technology |
| Audio encoding |
External microphone input, ring-power, digital audio input, |
| automatic gain control, network speaker pairing |
| Audio input/output |
External microphone input or line input, line output, built-in |
| microphone (removable) |
| Balanced audio in and audio out is supported |
| Network |
| Security |
Password protection, IP address filtering, HTTPS |
| encryption, IEEE 802.1X (EAP-TLS) network access |
| control, digest authentication, user access log, |
| centralized certificate management, brute force delay |
| protection, signed firmware, protection of cryptographic |
| keys with FIPS 140-2 certified TPM 2.0 module, |
| Axis Edge Vault with Axis device ID |
| Supported protocols |
IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS, SSL/TLS, QoS Layer 3 |
| DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP |
| v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, |
| RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT, Syslog |
| System Integration |
| Application Programming Interface |
Open API for software integration |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and |
| ONVIF® Profile T |
| Event conditions |
Analytics, external input, supervised external input, edge storage |
| events, virtual inputs through API |
| Audio: audio detection |
| Digital audio: digital signal contains Axis metadata, digital signal |
| as invalid sample rate, digital signal missing, digital signal ok |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, fan failure, |
| IP address removed, network lost, new IP address, shock detected, |
| storage failure, system ready, within operating temperature, |
| casing open, ring power overcurrent protection |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input |
| Scheduled and recurring: scheduled event |
| Video: live stream open, average bitrate degradation, day-night |
| mode, tampering |
| Event actions |
Day/night mode, overlay text, video recording to edge storage, |
| pre- and post-alarm video buffering, send SNMP trap, play audio |
| clipm I/O events, status LED events |
| File upload: FTP, SFTP, HTTP, HTTPS network share, email |
| Notification: email, HTTP, HTTPS TCP |
| Data streaming |
Event data |
| Built-in installation aids |
Remote Pan/tilt/roll: designed to withstand at least 200 full |
| cycles, autoroll, pixel counter, leveling guide |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics |
| AXIS Video Motion Detection, active tampering alarm, audio |
| detection, advanced gatekeeper, gatekeeper |
| Supported |
| Support for AXIS Camera Application Platform |
| General |
| Casing |
IP66-/IP67- and NEMA 4X-rated, IK10-rated impact-resistant |
| casing with polycarbonate hard coated clear dome, aluminum |
| base and dehumidifying membrane |
| Color: white NCS S 1002-B |
| Casing open detection |
| For repainting instructions , contact your |
| distributor partner. |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) and for wall or ceiling mount |
| ¾” (M25) conduit side entries |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 12 W, max 22.5 W |
| Connectors |
Shielded RJ45 1000BASE-T |
| Terminal block for two configurable supervised inputs/digital |
| outputs (12 V DC output, max load 50 mA), 3.5 mm analog/digital |
| mic/line in |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption |
| Support for recording to network-attached storage (NAS) |
| Operating conditions |
(-40 °C to 50 °C (-40 °F to 122 °F) |
| Humidity 10–100% RH (condensing) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -40 °C |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EAC, EN 55032 Class A, EN 55035, EN 50121-4, |
| IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, |
| RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, |
| CISPR 24, CISPR 35 |
| Safety |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, |
| CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Network NIST SP500-267 |
| Dimensions |
Height: 170 mm (6.6 in) |
| ø 195 mm (7.6 in) |
| With weathershield: |
| Height: 221 mm (8.7 in) |
| ø 206 mm (8.1 in) |
| Weight |
2.4 kg (4.5 lb) |
| Mounting height |
Recommended: 4 m and up |
| Included accessories |
Installation guide, Windows® |
| decoder 1-user license, |
| weathershield, RESITORX® T20 screw bit, connector guard |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
