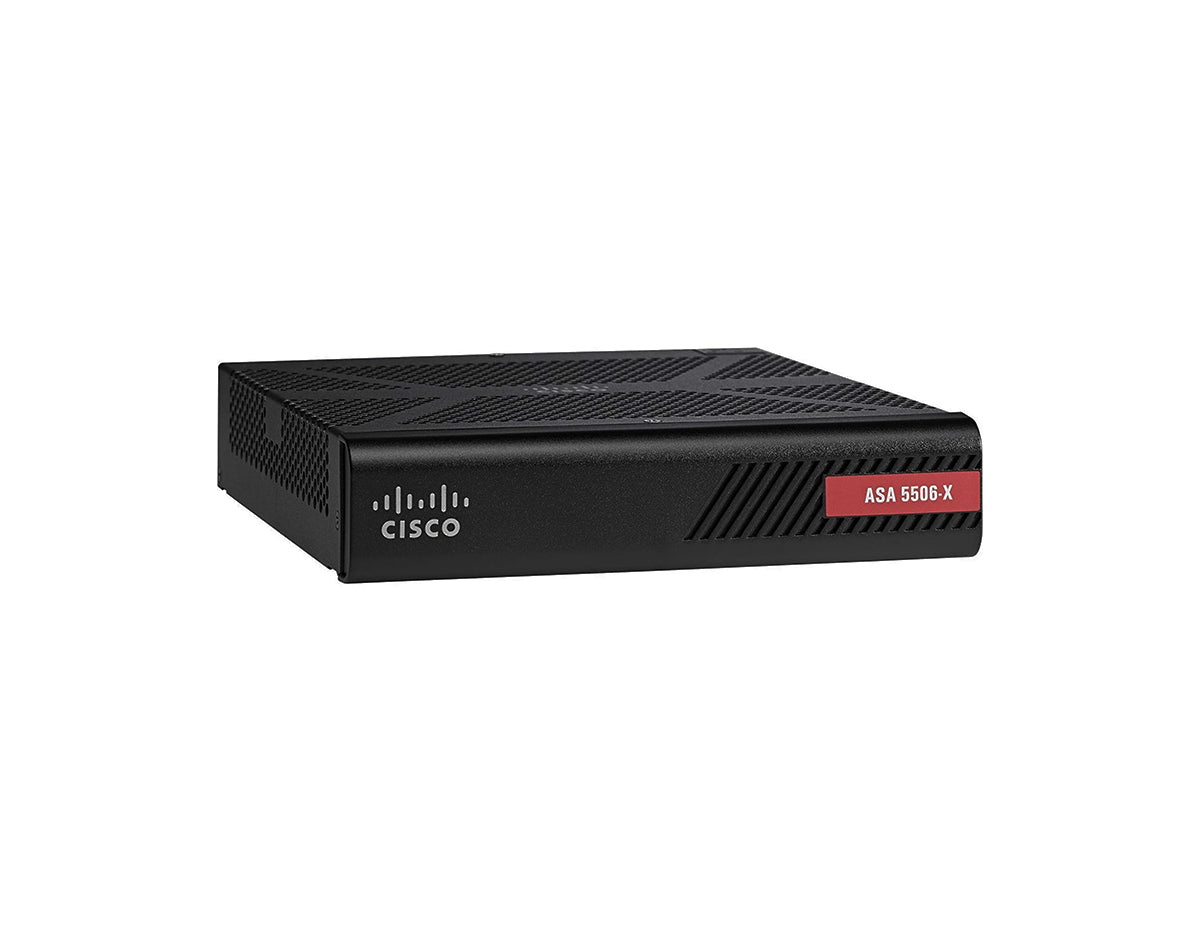

CISCO ASA5506-K9 FIREWALL W/ FIREPOWER SERVICES
| Part No: | ASA5506-K9 |
| Detail: | Security appliance, 8 ports, GigE, Desktop, |
| List Price: |
|
| Price: |
$970.28
|
| You Save: | $291.72 (23% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco ASA5506-K9 Firewall for Integrated Threat Defense
Cisco ASA5506-K9 Firewall delivers integrated threat defense for the entire attack continuum - before, during, and after an attack. It can provide the needed scale and context in a NGFW solution.
Cisco ASA with FirePOWER Services offers solid threat-focused next-generation security services to the Cisco ASA 5500-X Series Next-Generation Firewalls. Cisco ASA5506-K9 Firewall is one of those firewalls.
Key Benefits of Cisco ASA5506-K9 Firewall
Cisco ASA5506-K9 Firewall provides comprehensive protection from known and advanced threats, including protection against targeted and persistent malware attacks. This firewall is the world's most widely deployed, enterprise-class firewall.
| Manufacturer Part Number | ASA5506-K9 |
| Interfaces |
8 x 1 Gigabit Ethernet interface,1 management port |
| Stateful Inspection Throughput (multiprotocol) |
300 Mbps |
| Maximum 3DES/AES VPN throughput |
100 Mbps |
| IPsec site-to-site VPN peers |
10; 50 with Security Plus license |
| Virtual Interfaces (VLANs) |
5; 30 with Security Plus license |
| Memory |
4GB |
| Flash |
8GB |
| Power (AC or DC) |
AC only |
| Dimensions (D x H x W) | 9.23 in x 1.72 in x 7.871 in |
| Weight | 8.3 Lb (3.78 Kg) |
Image below shows the front panel of ASA5506-K9
Image below shows the back panel of ASA5506-K9
Accessories
Specifications
| Specifications | |
| Type | Cisco ASA 5506-X w/ FirePOWER Services |
| Throughput: Application Control (AVC) |
250 Mbps |
| Throughput: Application Control (AVC) and IPS | 125 Mbps |
| Maximum concurrent sessions | 20,000; 50000 |
| Maximum New Connections per second | 5,000 |
| Supported applications | More than 3,000 |
| URL categories | (80+) |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM (version 7.3 or higher required) |
| Feature | Cisco ASA 5506-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum1) | 750 Mbps |
| Stateful inspection throughput (multiprotocol2) | 300 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3 | 100 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 10; 50 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 50 |
| Virtual interfaces (VLANs) | 5; 30 |
| Security contexts5(included; maximum) | N/A |
| High availability | Requires Security Plus License; Active/ Standby |
| Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1 Gigabit Ethernet (GE) |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 50 GB mSata |
| Memory | 4 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 32 to 104°F (0 to 40 °C) |
| Relative humidity | 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
| Acoustic noise |
Fanless 0 dBA |
| Temperature | (-13 to 158ºF (-25 to 70ºC)) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 90 to 240 VAC |
| AC current | N/A |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | N/A |
| DC current | N/A |
| Steady state | 12V @2.5A |
| Maximum peak | 12V @ 5A |
| Maximum heat dissipation | 103 British thermal units (Btu)/hr |
| Form factor | Desktop, rack mountable |
| Dimensions (H x W x D) |
1.72 x 7.871 x 9.23 in. (4.369 x 19.992 x 23.444 cm) |
| Weight (with AC power supply) | 4 lb (1.82 kg) |
Properties
| Properties | ASA5506-K9 |
| Description | Cisco ASA5506-K9, designed for small or mid-size enterprise or branch offices, is one of the Cisco ASA 5500-X Next-generation series firewalls with Firepower services. |
| Product Family | Cisco ASA 5500 Series Next Generation Firewalls |
| Product Type | Firewall |
| Interfaces | 8 x 1 Gigabit Ethernet interface,1 management port |
| Stateful inspection throughput (multiprotocol) | 300 Mbps |
| Maximum 3DES/AES VPN throughput | 100 Mbps |
| IPsec site-to-site VPN peers | 10; 50 with Security Plus license |
| Virtual interfaces (VLANs) | 5; 30 with Security Plus license |
| Memory | 4GB |
| Flash | 8GB |
| Power (AC or DC) | AC only |
| Height (rack units) | Desk Top |
| Dimensions (D x H x W) | 9.23 in x 1.72 in x 7.871 in |
| Package Weight | 3.78 Kg |
| Recommended licenses for ASA5506-K9 | L-ASA5506-SEC-PL= : Cisco ASA5506 Security Plus license w/ HA, DMZ, VLAN trunk, more conns. L-ASA5506-TAMC-3Y: Cisco ASA5506 FirePOWER IPS, AVC, AMP, and URL 3YR Subs L-ASA-SSL-25: ASA 5500 SSL VPN 25 Premium User License |
| Interfaces | 8 x 1 GE |
| Stateful Inspection Throughput (multiprotocol) | 300 Mbps |
| Maximum 3DES/AES VPN Throughput | 100 Mbps |
| Memory | 4GB |
| Flash | 8GB |
| Height (rack units) | Desk Top |
