AXIS F2135-RE FISHEYE SENSOR
| Model: | 02641-001 |
| Detail: |
|
| Price: | $260.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

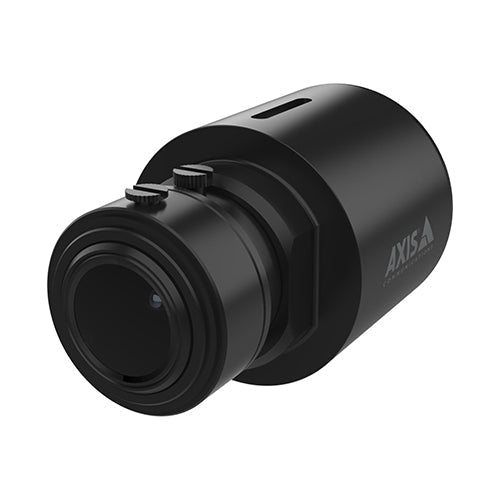

AXIS F2135-RE Fisheye Sensor (02641-001)
The AXIS document number 1-RE Fisheye Sensor is designed to provide a discreet surveillance solution when used with modular F91 central units. This fisheye sensor captures 1080p resolution video at up to 60fps and has a 1.98mm lens that delivers a 185-degree horizontal field of view. The product offers discreet installation with only the tiny sensor visible externally. It can be installed in tight spaces, behind glass, metal, or even plastic sheeting. It is also reliable under rough conditions.
Quick Specs:
- Only compatible with 2nd generation main units and cables
- Up to 60fps at 1080p and up to 180fps at 720p
- Rugged sensor unit
- IP66/IP67/IP6K96 rated
Please see the related tabs for the 02641-001 datasheet and compatible accessories.
| Feature | AXIS F2105-RE Standard Sensor | AXIS F2115-R Varifocal Sensor | AXIS F2135-RE Fisheye Sensor | AXIS F4105-LRE Dome Sensor | AXIS F4105-SLRE Dome Sensor | AXIS F7225-RE Pinhole Sensor |
|---|---|---|---|---|---|---|
| Outdoor Ready | ✔ | – | ✔ | ✔ | ✔ | ✔ |
| Horizontal field of view | 108 | 107.4 - 56.3 | 185 | 110 | 110 | 92 |
Accessories
| Optional accessories | |
| AXIS TU6002 | Right-angle SMA Adaptor |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TU6007-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TF1801-R | Lens Hood |
|
AXIS TF1201-RE |
Recessed mounting of modular sensor units |
|
AXIS TF1203-RE |
Recessed mounting of modular sensors |
|
AXIS TF1803-RE |
Lens Protector |
| AXIS TF1901-RE | Swivel Mount |
|
AXIS TF1902-RE |
Mounting Bracket |
Specifications
| Specifications | AXIS F2135-RE |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | - |
| Max video resolution | 1920x1080 |
| Max frames per second | 180 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Focal length | 1.98 mm |
| Varifocal lens | No |
| Aperture | 2.0 |
| Horizontal field of view | 185 ° |
| Vertical field of view | 97 ° |
| Lens mount | M12 |
| Replaceable lens | Yes |
| Audio Support | – |
Properties
| Properties | AXIS F2135-RE |
| Description | AXIS F2135-RE Fisheye Sensor is ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles. It offers up to 1080p at 60 fps, 185° field of view, and good low-light performance in color. |
| Product Family | Axis Cameras |
| Product Type | Sensor |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Wide dynamic range | – |
| PoE Class | – |
| Connectors | SMA-FAKRA connectors |
| Built-in IR | – |
| Local storage (memory card slot) | – |
| Outdoor Ready | Yes |
| Vandal rating | – |
| IP rating | IP66, IP67, IP69, IP6K9K |
| Power (max) | 4.0 W |
| Power (average) | 1.0 W |
| Dimensions | 46 mm (1.8 in) ø 29.8 mm (1.2 in) |
| Weight | 50 g (0.1 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability | PVC free |
