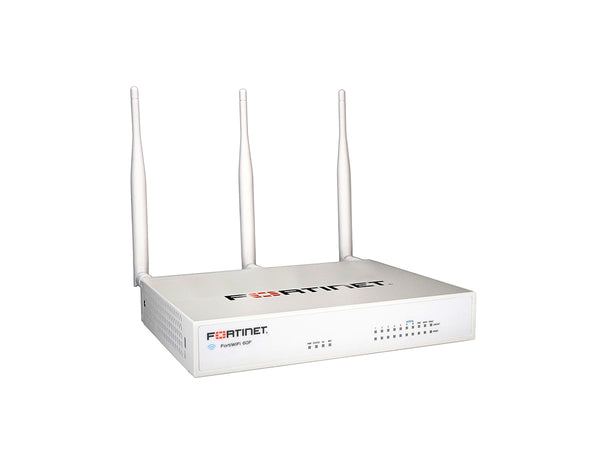

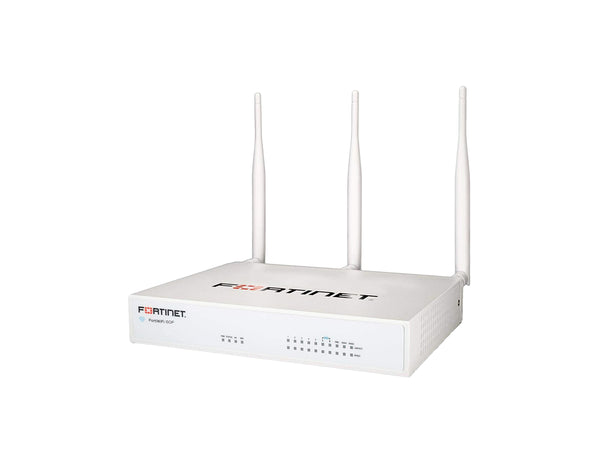

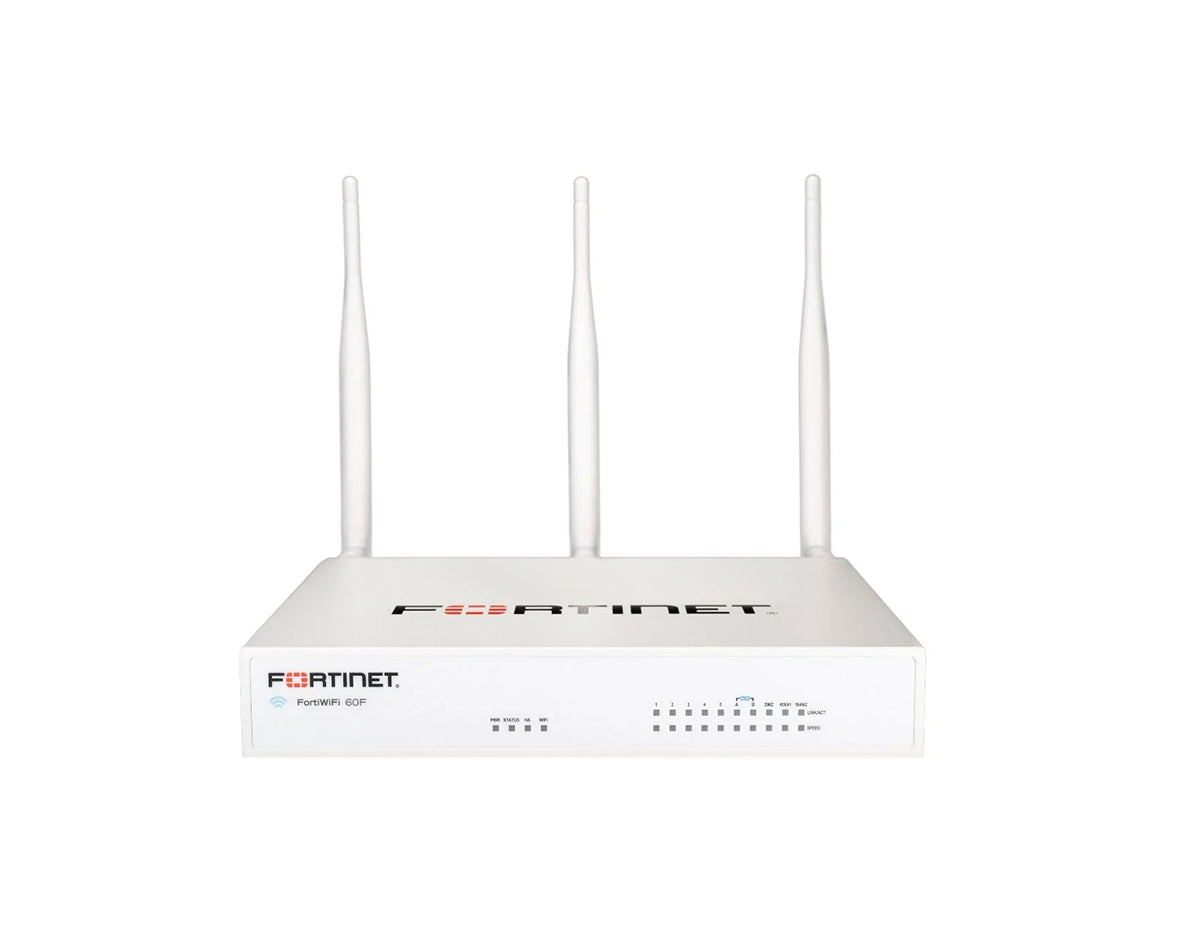

Fortinet FWF-60F-A-BDL-950-12 Firewall
WiFi 5 firewall, 10x GE ports, 1 Gbps NGFW, SD WAN, IPS 1.4 Gbps, fanless desktop
$1,496.00
$1,272.00
Instant Savings
$224.00
Secure Branch Networks with Integrated Firewall and WiFi
The Fortinet FortiWiFi 60F (FWF-60F-A-BDL-950-12) delivers enterprise-grade security, SD-WAN, and wireless connectivity in a single compact appliance. Built on Fortinet’s SPU-powered architecture and FortiOS, it provides high-performance threat protection while simplifying network operations for distributed businesses and branch offices.
Key Benefits & Features
- Integrated NGFW and SD-WAN: Combines firewall, SD-WAN, and routing capabilities to optimize traffic and secure WAN connectivity from a single platform.
- WiFi 5 Connectivity: Built-in dual-band 802.11ac Wave 2 wireless supports up to 1300 Mbps at 5 GHz for reliable office connectivity.
- High Performance Security: Delivers up to 1 Gbps NGFW throughput and 1.4 Gbps IPS performance for real-time threat detection and prevention.
- Fortinet SPU Acceleration: Purpose-built ASIC technology enhances throughput, reduces latency, and improves energy efficiency compared to CPU-based firewalls.
- Unified Security Fabric: Seamlessly integrates with Fortinet Security Fabric and FortiGuard services for AI-driven threat intelligence and centralized control.
Ideal Use Cases
- Branch offices requiring secure SD-WAN and wireless connectivity
- Small to mid-sized businesses deploying all-in-one firewall solutions
- Retail locations with integrated WiFi and network security
- Distributed enterprises needing centralized security management
- Organizations implementing hybrid work and secure remote access
Technical Specifications
- Firewall Throughput: Up to 10 Gbps
- NGFW Throughput: 1 Gbps
- IPS Throughput: 1.4 Gbps
- Threat Protection: 700 Mbps
- VPN Throughput: 6.5 Gbps IPsec
- Interfaces: 10x GE RJ45 (2 WAN, 1 DMZ, 7 internal)
- Wireless: 802.11 a/b/g/n/ac Wave 2 dual-band
- Concurrent Sessions: 700,000
- Form Factor: Desktop, fanless design
- Management OS: FortiOS with centralized control
Upgrade Your Network Security Today
Deploy advanced protection and seamless connectivity with Fortinet FortiWiFi 60F. Order now to secure your network infrastructure.
| Model | Fortinet FortiWiFi 60F |
| SKU | FWF-60F-A-BDL-950-12 |
| Product Type | Security Appliance Firewall |
| Form Factor | Desktop |
| Wi-Fi Standard | Wi-Fi 5 (802.11a/b/g/n/ac Wave 2) |
| Wireless Bands | 2.4 GHz, 5 GHz |
| Interfaces | 2 x GE RJ45 WAN, 1 x GE RJ45 DMZ, 5 x GE RJ45 Internal, 2 x GE RJ45 FortiLink, 1 x USB, 1 x Console |
| Firewall Throughput | 10 Gbps |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| VPN Throughput | IPSec: 6.5 Gbps, SSL: 900 Mbps |
| Concurrent Sessions | 700,000 |
| New Sessions Per Second | 35,000 |
| Max Wi-Fi Speed | 1300 Mbps (5 GHz), 450 Mbps (2.4 GHz) |
| Power Consumption | 17.2 W |
| Power Supply | External DC Power Adapter 100–240V AC |
| Dimensions (H x W x D) | 38.5 x 216 x 160 mm |
| Weight | 1.01 kg |
| Operating Temperature | 0 C to 40 C |
| Humidity | 10% to 90% non-condensing |
| Processor | Fortinet FortiASIC SOC4 |
| Operating System | FortiOS |
| Encryption | SSL, TLS 1.3 |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a/b/g/n/ac |
| Firewall Latency | 3.3 us |
| Firewall Throughput (Packets) | 9 Mpps |
| SSL Inspection Throughput | 630 Mbps |
| SSL Inspection CPS | 400 |
| SSL Inspection Sessions | 55,000 |
| Application Control Throughput | 1.8 Gbps |
| CAPWAP Throughput | 8 Gbps |
| Max FortiAP Support | 64 (32 tunnel mode) |
| Max FortiSwitch Support | 24 |
| Max FortiToken Support | 500 |
| Virtual Domains | 10 |
| High Availability | Active-Active, Active-Passive |
| Wireless MIMO | 3x3 |
| Max TX Power | 20 dBm |
| Antenna Gain | 3.5 dBi (5 GHz), 5 dBi (2.4 GHz) |
| Certifications | FCC, CE, UL, CB, VCCI |
| Optional – Rack Mount | SP-RACKTRAY-02 Rack Mount Tray |
| Optional – Power Adapter | SP-FG60E-PDC-5 AC Power Adapter |
| Optional – Wall Mount | SP-FG60F-MOUNT-20 Wall Mount Kit |
