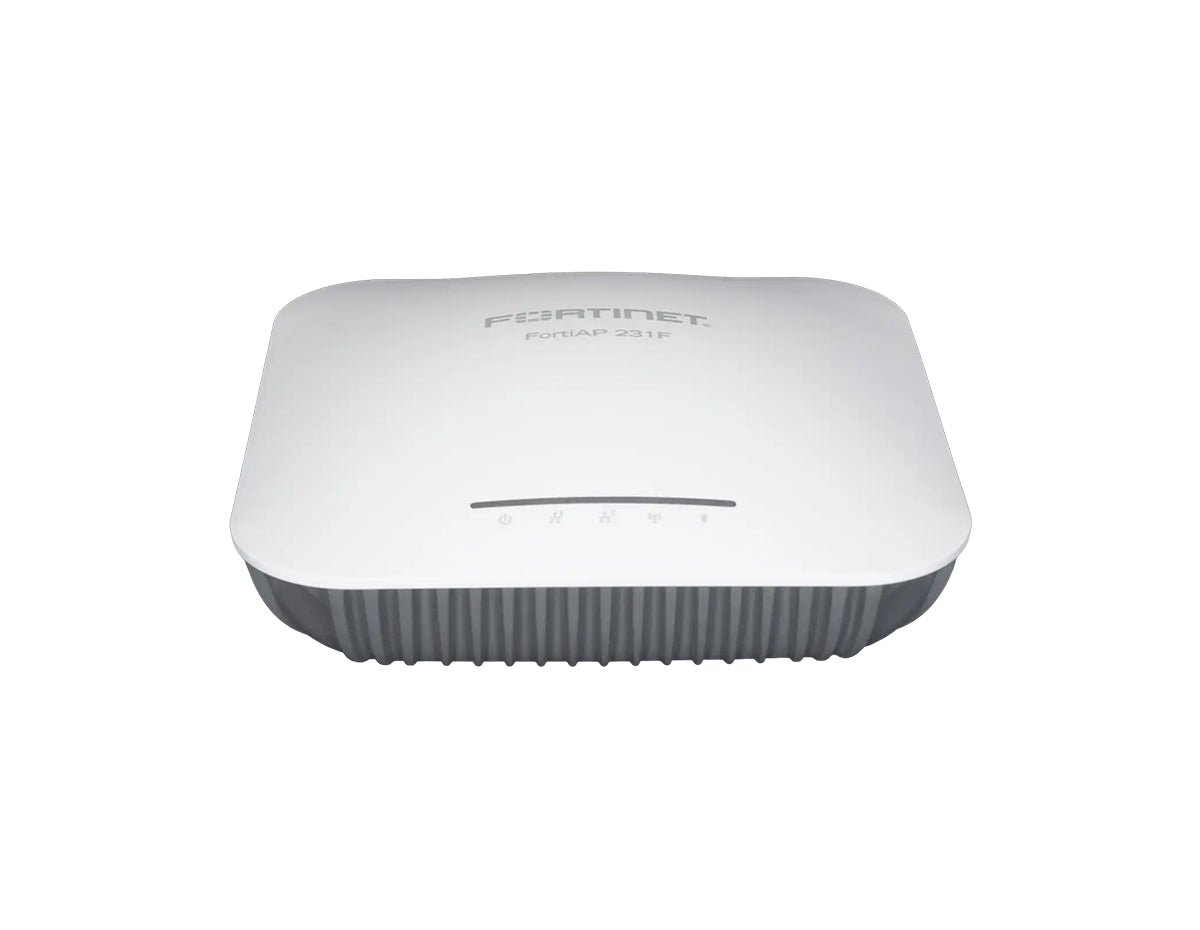

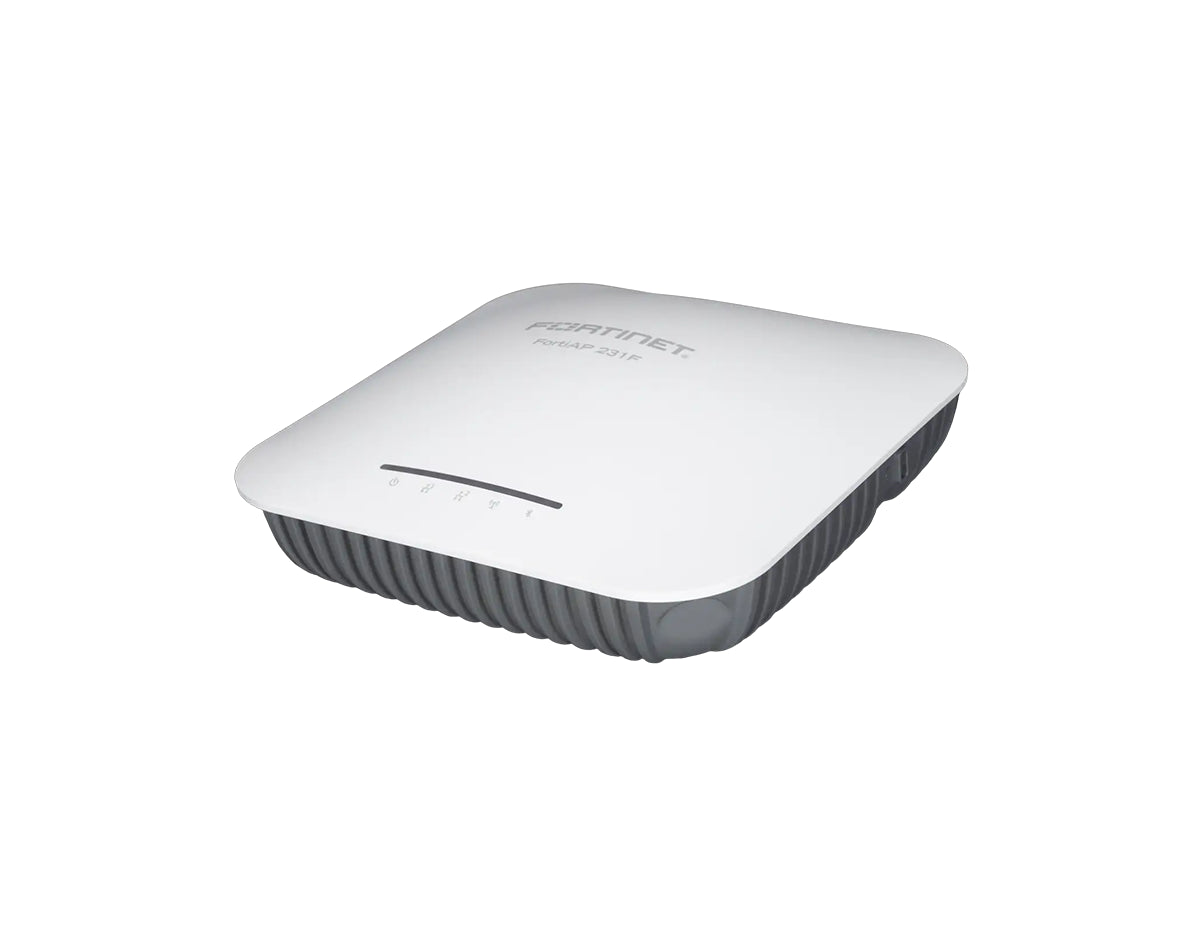

FORTINET FAP-231F-A ACCESS POINT
| Model: | FAP-231F-A |
| Detail: | Indoor Wireless AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP200-PA. Region Code A |
| List Price: | |
| Price: | $279.00 |
| You Save: | $111.00 (28% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Fortinet FAP-231F-A Access Point
The Fortinet FAP-231F Wireless Access Point offers an ideal solution for enterprises and institutions seeking to improve their network connectivity. With its advanced 802.11 b/g/n/ax technology, this wireless access point provides rapid and dependable wireless performance, guaranteeing uninterrupted connectivity across various devices. Whether engaging in high-definition video streaming, facilitating video conferences, or transferring substantial files, the FAP-231F is equipped to manage these tasks effectively.
Quick Specs:
- 2x2 MU-MIMO | up to 574 Mbps + 1201 Mbps + scanning
- Tri Radio 2.4 Ghz + 5 Ghz + scanning
- 3 Antennas
- 2x 10/100/1000 Base-T RJ45 ports, 1x Type 2.0 USB port
Please see the related tabs for the FAP-231F-A datasheet and compatible accessories.
Accessories
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall |
| Power Supply | SP-FAP400-PA-XX or GPI-130 |
Specifications
| Advanced 802.11 Features | OFDMA |
| Spatial Reuse (BSS | |
| Coloring) | |
| HE-MU-MIMO | |
| UL-MU-MIMO 802.11ax | |
| mode | |
| DL-MU-MIMO | |
| Enhanced Target Wake | |
| Time (TWT) | |
| ZeroWait DFS /Agile DFS | |
| Dimensions in. | 6.0 x 6.0 x 2.86 |
| Power Consumption (Max) | 17 W |
| Operating Temperature | 32–122°F (0–50°C) |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| Certifications | Wi-Fi Alliance Certified |
| DFS:FCC, IC, CE, Japan, Taiwan, Korea |
Properties
| Properties | FAP-231F-A |
| Description | Indoor Wireless AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order 802.3at PoE injector GPI-130 or AC adapter SP-FAP250-PA-10. |
| Product Family | Fortinet Indoor Wireless AP |
| Product Type | Access Points |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 3 Dual band Internal Wi-Fi + 1 BLE/ZigBee |
| Antenna Type and Peak Gain | PIFA antenna Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz BLE antenna 4.0dBi at 2.4GHz band |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 2 Capabilities | Frequency band: 5.0GHz Channel width: 20/40/80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service |
| Radio 3 Capabilities | Frequency bands: 2.4GHz and 5.0GHz MIMO Chains: 1x1 Frequency Scanning |
| Maximum Data Rate | Radio 1: up to 574 Mbps Radio 2: up to 1201 Mbps Radio 3: Frequency scanning only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |

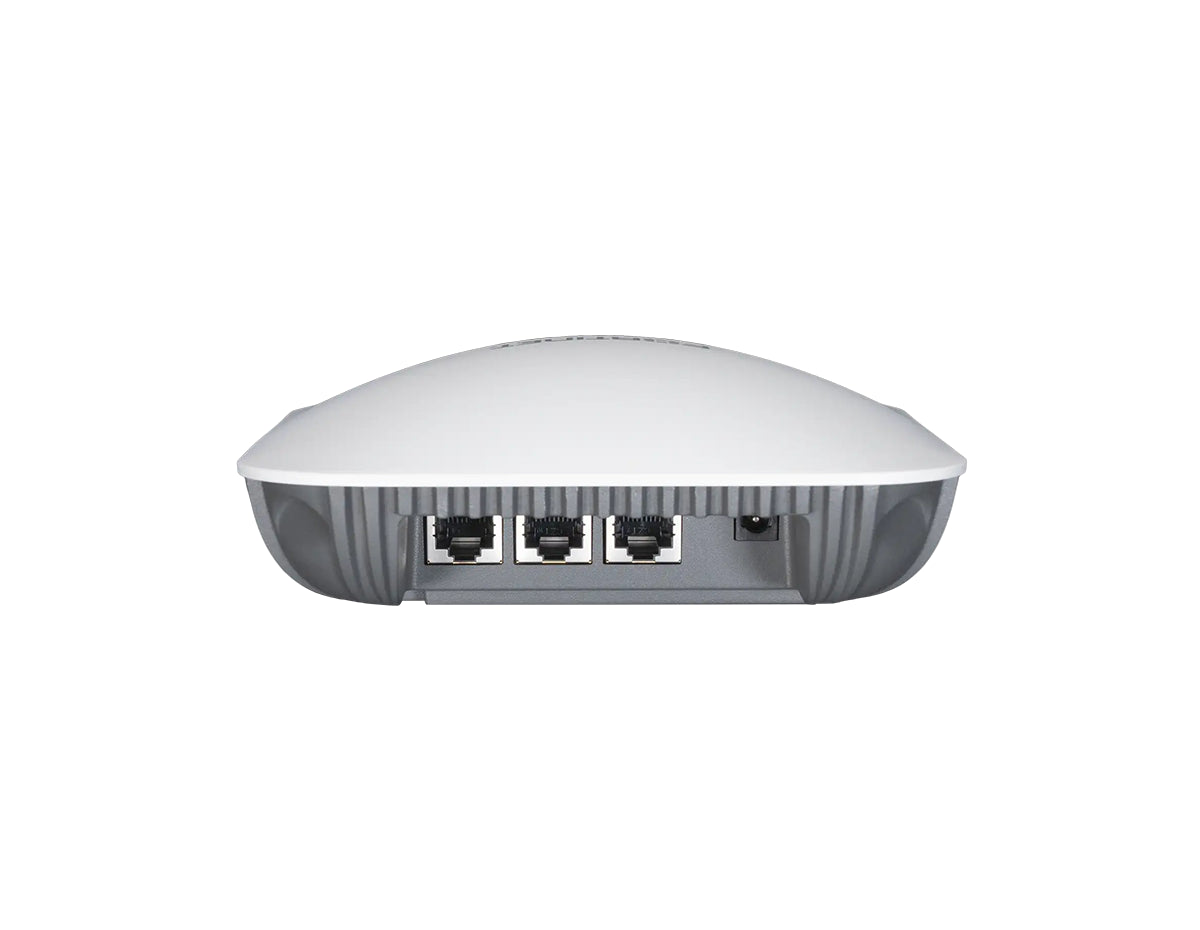

| Interfaces | 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 802.3at PoE default 1 port powered by 802.3at - full system functionality + USB support 1 port is connected to 802.3af - no USB support |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Power | Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined)* Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined)* Radio 3: NA |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | Yes |
