FORTINET FG-80F FIREWALL
| Model: | FG-80F |
| Detail: | Fortinet FG-80F Firewall The FortiGate 80F series offers a compact, fanless desktop solution designed for enterprise branch offices and mid-sized businesses, delivering a secure and scalable SD-WAN solution with |
| List Price: | |
| Price: | $998.00 |
| You Save: | $532.00 (35% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

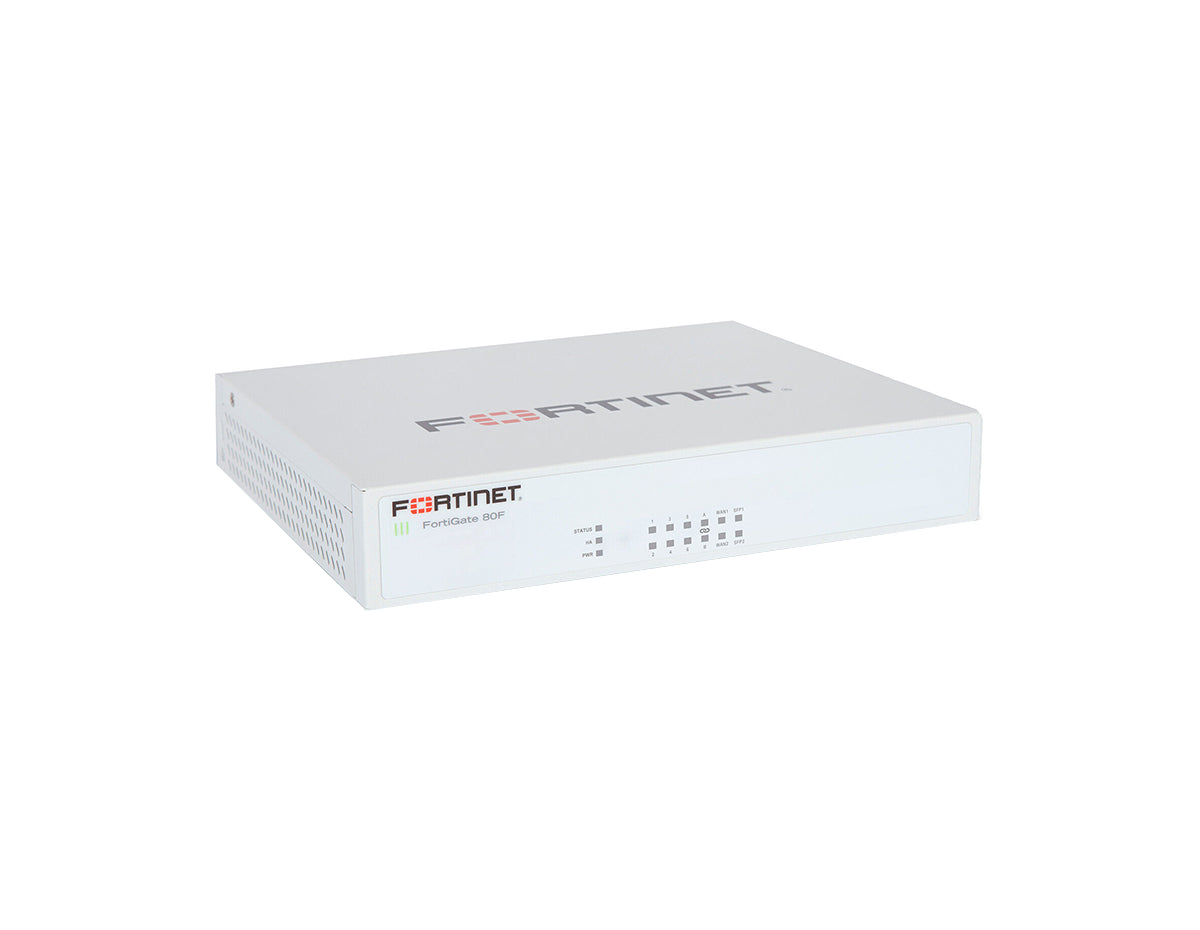

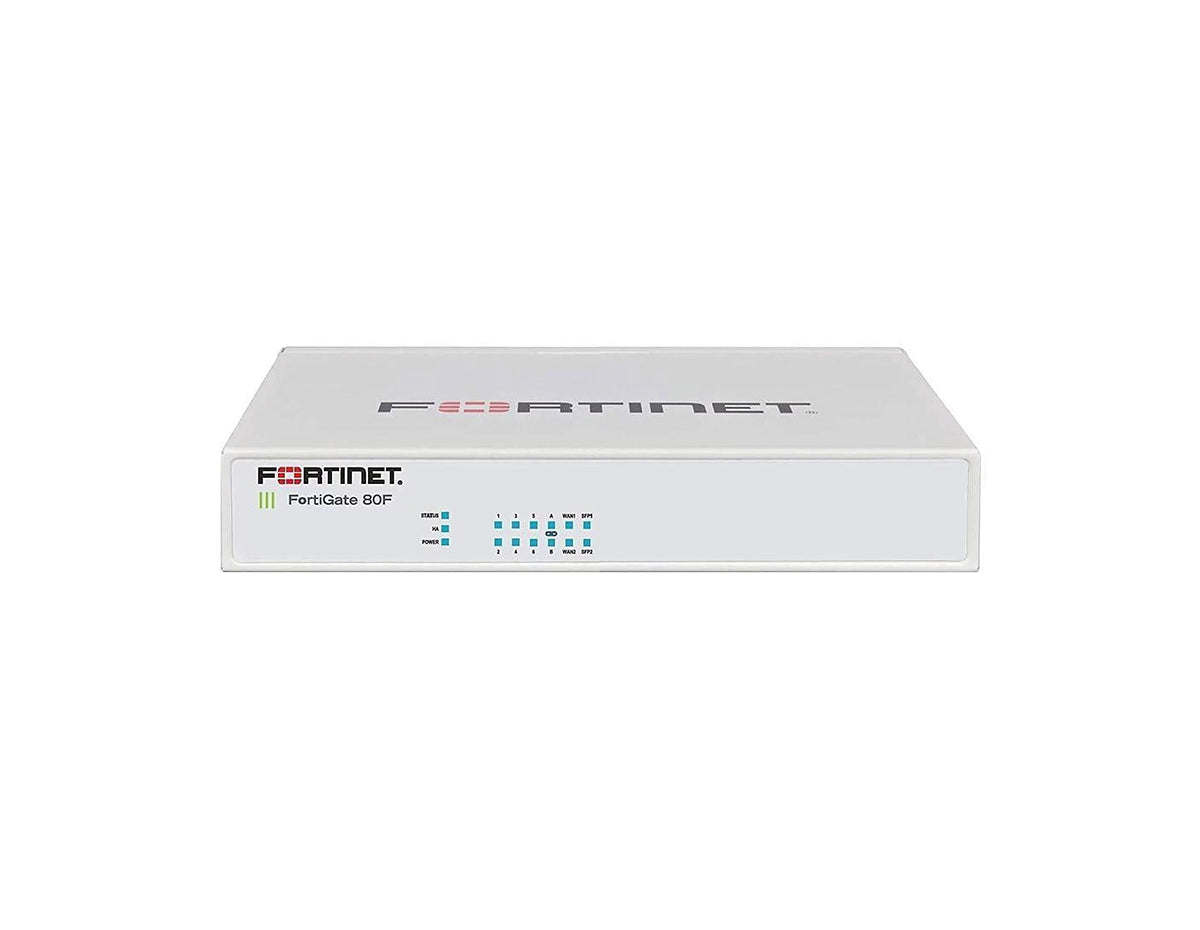

Fortinet FG-80F Firewall
The FortiGate 80F series offers a compact, fanless desktop solution designed for enterprise branch offices and mid-sized businesses, delivering a secure and scalable SD-WAN solution with a focus on application-centric functionality. It provides protection against cyber threats through system-on-a-chip acceleration and industry-leading secure SD-WAN capabilities, offering a straightforward, cost-effective, and easily deployable solution. Fortinet's Security-Driven Networking approach emphasizes the seamless integration of the network with the latest security technologies.
Quick Specs:
- Firewall Throughput: 10.5 Mpps
- ASIC SOC4
- Fanless
- NGFW
Please see the related tabs for the FG-80F datasheet and compatible accessories.
Accessories
| SP-FG60E-PDC-5 |
Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, 80E/81E and 80F/81F
|
| SP-FWF80F-PDC-5 |
Pack of 5 AC power adaptors for FWF-80/81F-2R, power cable SP-FG60CPCOR-XX sold separately
|
| SP-FG80E-POE-PDC |
AC power adaptor for FG-60E-POE, FG-80E-POE, FG-81E-POE, FG-80/81F-POE, FWF-81F-2R-POE power cable SP-FG60CPCOR-XX sold separately
|
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models.
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
Specifications
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 715 Mbps |
| Application Control Throughput | 1.8 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| CAPWAP Throughput | 9 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.65 x 8.5 x 7 |
| Form Factor | Desktop |
| Power Required |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100240V AC, 50/60 Hz
|
| Maximum Current |
115VAC/0.4A, 230VAC/0.2A
|
| Power Consumption (Average / Maximum) | 12.69 W / 15.51 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-80F |
| Description |

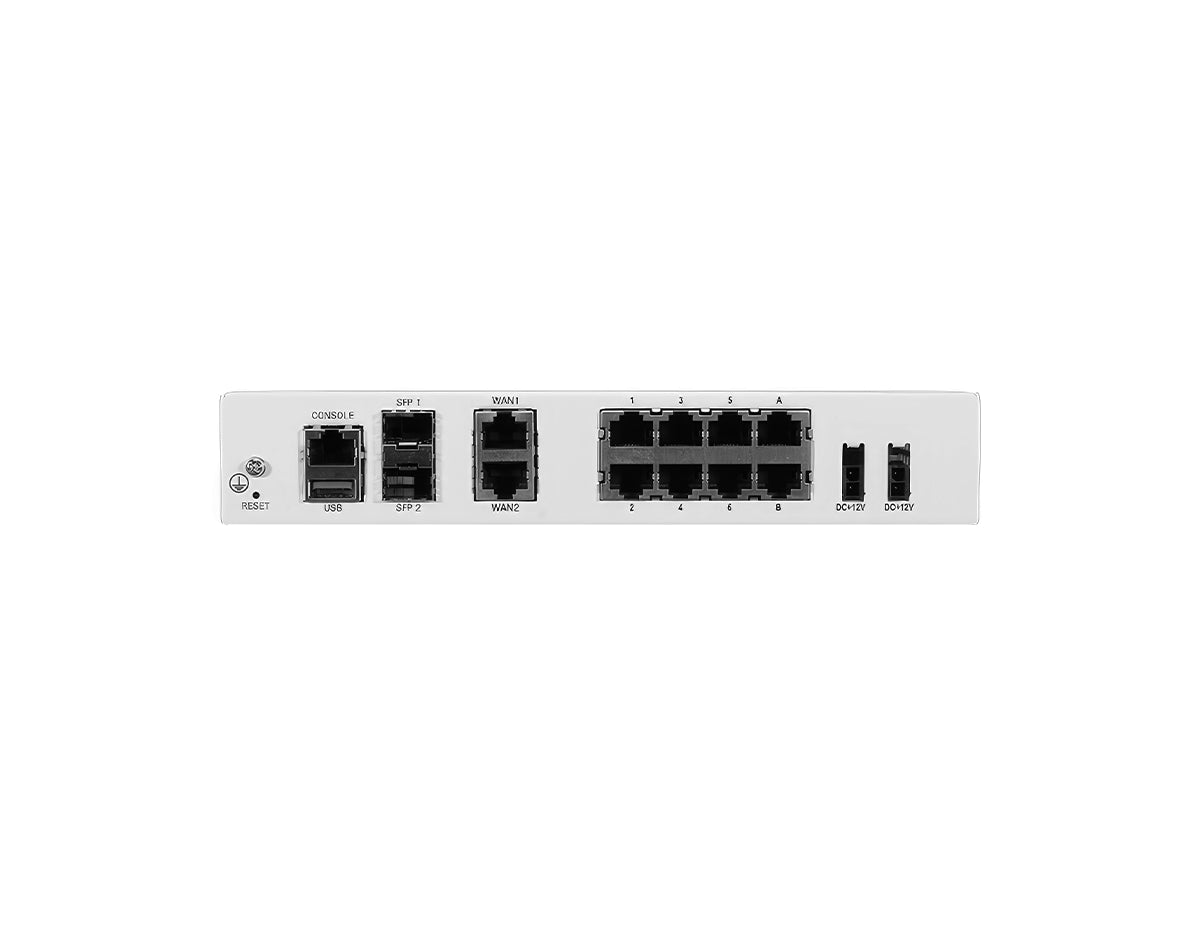

8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports
|
| Product Family | Early Level Firewalls |
| Product Type | Firewall |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
