AXIS P3719-PLE NETWORK CAMERA
| Part No: | 01500-001 |
| Detail: | 15 MP multidirectional camera with IR for 360 degree coverage, 15 MP, 360 degree multidirectional camera, with one IP address, 360 degree IR illumination, Remote zoom and focus, Flexible positioning of four varifocal camera heads, Axis Zipstream for reduced bandwidth and storage needs, |
| Price: |
$1,956.00
|
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

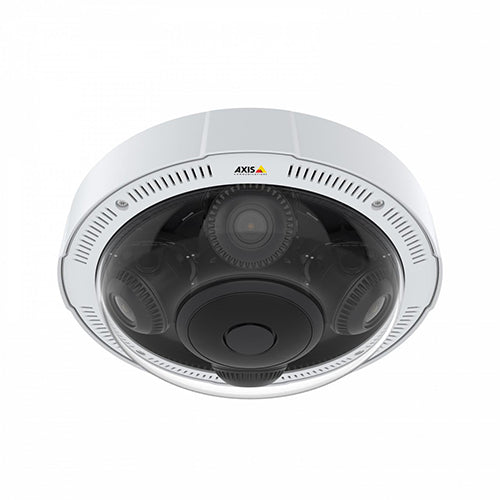

AXIS P3719-PLE Network Camera (01500-001)
The AXIS P3719-PLE is engineered to capture high-quality images with exceptional clarity and sharpness under varying lighting conditions, utilizing WDR and 360° IR illumination. The integration of four varifocal camera heads enables the camera to effectively monitor four distinct areas in multiple directions, offering comprehensive 360° overviews or a blend of overviews and detailed close-ups. The P3719-PLE accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Quick Specs:
- 15MP, 360 multidirectional camera, with one IP address
- Remote zoom and focus
- Flexible positioning of four varifocal camera heads
- Axis Zipstream for reduced bandwidth and storage needs
Please see the related tabs for the 01500-001 datasheet and compatible accessories.
| Feature | AXIS P3735-PLE | AXIS P3737-PLE | AXIS P3738-PLE |
|---|---|---|---|
| Max video resolution | 1920x1080 | 2592x1944 | 3840x2160 |
| Built-in IR | ✓ | ✓ | ✓ |
| Remote focus | ✓ | ✓ | ✓ |
| Remote zoom | ✓ | ✓ | ✓ |
| Local storage (memory card slot) | ✓ | ✓ | ✓ |
| Zipstream | ✓ | ✓ | ✓ |
| Power over Ethernet | ✓ | ✓ | ✓ |
| Day and Night functionality | ✓ | ✓ | ✓ |
This product has reached its end-of-life. The recommended replacement model is P3737-PLE (02634-001)
Accessories
| Optional accessories | • AXIS T94N01D Pendant Kit • AXIS T94N01L Recessed Mount • AXIS mounts and cabinets |
Specifications
| Specifications | AXIS P3719-PLE Network Camera |
| Camera | |
| Image sensor | 4 x 1/2.5” progressive scan RGB CMOS |
| Lens | Varifocal, 3–6 mm, F1.8–2.6 |
| 4 x 1440p capture mode: | |
| Horizontal field of view: 101°–49° | |
| Vertical field of view: 54°–29° | |
| Diagonal field of view: 116°–58° | |
| Motorized focus, motorized zoom | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.20 lux at 50 IRE F1.8 |
| B/W: 0.04 lux at 50 IRE F1.8, 0 lux with IR illumination on | |
| Shutter speed | 1/66500 s to 1/5 s with 50/60 Hz |
| Camera angle adjustment | Pan ±90° |
| Tilt +25 to +95° | |
| Rotation –5 to +95° | |
| Twist ±20 | |
| System on chip (SoC) | |
| Model | S5 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
| H.265 (MPEG-H Part 2) | |
| Resolution | x 2560x1440 (4 x QHD 1440p) to 80x60 |
| Frame rate | Up to 25/30 fps (50/60 Hz) |
| Video streaming | Multiple, individually configurable streams in H.264 and H.265 |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264 | |
| Image settings | Saturation, contrast, brightness, sharpness, WDR, white balance, |
| exposure control, rotation: 0°, 90°, 180°, 270° including Corridor | |
| Format, dynamic text and image overlay, polygon privacy mask, | |
| compression | |
| Audio | |
| Audio output/output | Two-way audio connectivity via optional AXIS T61 Audio and I/O |
| Interfaces with portcast technology | |
| A 30 W midspan or higher between AXIS T61 Audio and I/O | |
| Interfaces and AXIS P3719-PLE is required. | |
| Network | |
| IP address | One IP address for all channels |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS* , SSL/TLS*, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T | |
| Event triggers | Detectors, hardware, input signal, storage, system, time, |
| analytics, edge storage events | |
| MQTT subscribe | |
| Event conditions | Audio: audio clip playing |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, casing | |
| open, IP address removed, network lost, new IP address,storage | |
| failure, system ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Day/night vision mode, overlay text, record video, send images, |
| send notification, send SNMP trap, send video clip, status LED | |
| File upload: FTP, HTTP, HTTPS, network share, SFTP and email | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| MQTT publish | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter, remote focus, remote zoom |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles |
| Trigger conditions: line crossing, object in area, time in areaBETA | |
| Up to 10 scenarios | |
| Metadata visualized with trajectories and color-coded bounding | |
| boxes | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, active tampering alarm | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP66-, IP67-, NEMA 4X-rated, IK09 impact-resistant, aluminium |
| and plastic casing with polycarbonate hard-coated dome, | |
| sunshield (PC/ASA) | |
| Color: white NCS S 1002-B | |
| For repainting instructions, | |
| contact your Axis partner. | |
| Mounting | Mounting bracket with junction box holes (double gang box, |
| single gang box, 4” octagon junction box and 4” square junction box) | |
| ½” (M20) conduit side entry | |
| ¾” (M25) conduit adapter included | |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| IR illumination on: class 4, typical 16.3 W, max 25.5 W | |
| IR illumination off: class 3, typical 10.7 W, max 25.5 W | |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces | |
| with portcast technology. | |
| IR illumination | Four individually controllable IR with power-efficient, long-life |
| 850 nm IR LEDs | |
| Range of reach 15 m (50 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Dual SD cards | |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-30 °C to 50°C) (-22 °F to 122 °F) |
| Humidity 10–100% RH (condensing) | |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals | EMC |
| EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, | |
| EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, | |
| RCM AS/NZS CISPR 32 Class A | |
| Safety | |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC 62471 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/67, | |
| IEC/EN 62262 IK09, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 91.5 mm (3.6 in) |
| ø 255 mm (10.04 in) | |
| Weight | 2.0 kg (4.4 lb) |
| Included accessories | RJ45 mounting tool, screw bit TR20, Installation guide, Windows® |
| decoder 1-user license | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis’ Application Development Partners available | |
| on axis.com/vms | |
| Languages | English, Simplified Chinese, Traditional Chinese, French, German, |
| Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish | |
| Included accessories | Installation guide, Windows® decoder 1-user license, connector |
| guard, screw bit T20 | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
Properties
| Properties | AXIS P3719-PLE Network Camera |
| Description | The AXIS P3719-PLE Network Camera is a compact 15 MP camera with four varifocal lenses, offering Quad HD resolution for comprehensive surveillance. With a single IP address and network cable, it provides cost-effective multidirectional coverage. Featuring 360° IR illumination, WDR, and individual camera head positioning, it ensures excellent video quality in all lighting conditions. The camera is designed for easy installation with remote zoom and focus, a clear cover, and an integrated weathershield. Its discreet and compact design, along with Zipstream technology, further enhances its versatility. |
| Product Family | AXIS P3719-PLE Network Camera |
| Product Type | Camera |
