CISCO ISA-3000-2C2F-K9 INDUSTRIAL SECURITY APPLIANCE
| Model: | ISA-3000-2C2F-K9 |
| Detail: |
Switch , L3, managed, 2 x 10/100/1000 + 2 x Gigabit SFP, DIN rail mountable, DC power |
| List Price: | |
| Price: | $2,799.00 |
| You Save: | $2,544.55 (48% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

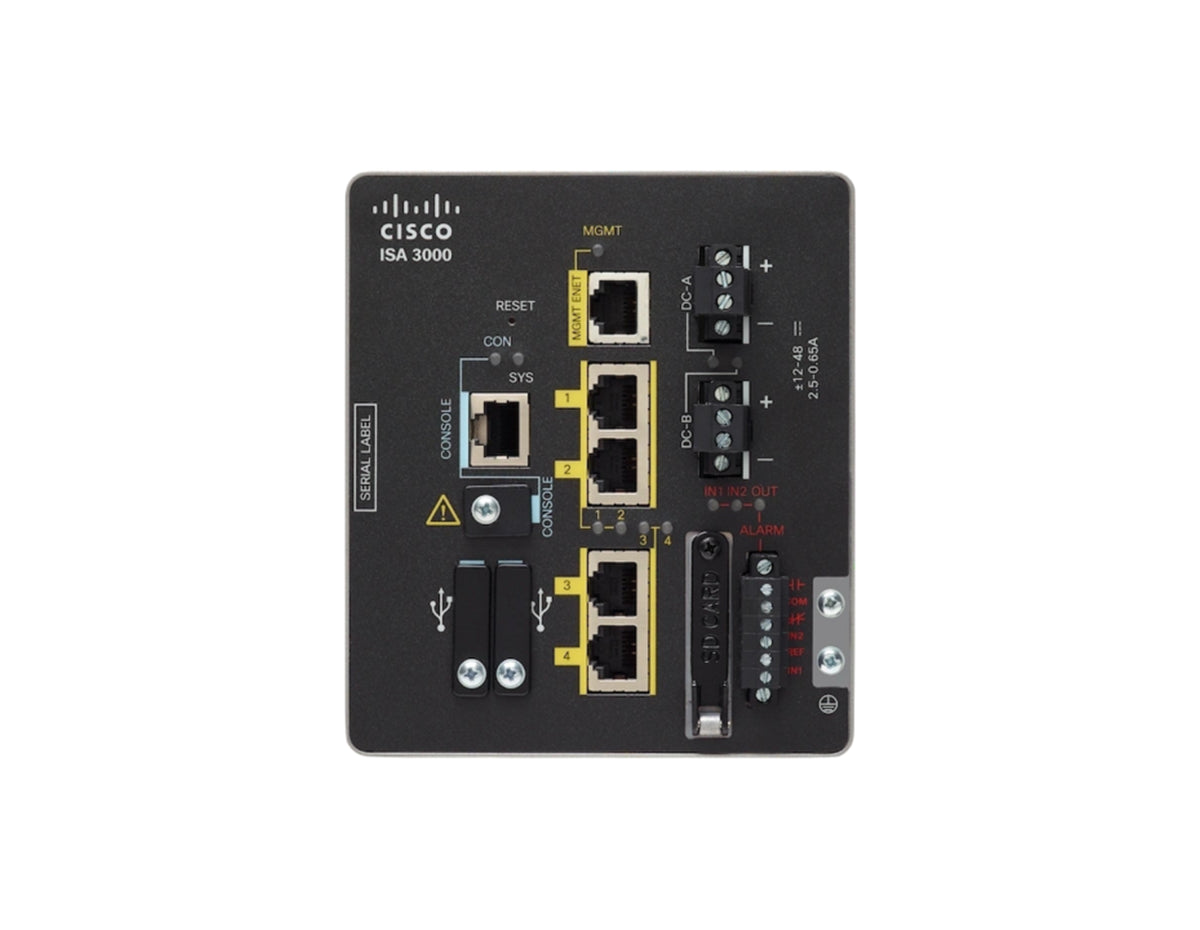

Cisco ISA-3000-2C2F-K9 Industrial Security Appliance
The Cisco Secure Firewall ISA3000 is an industrial firewall with OT-targeted protection. It is Ideal for segmenting industrial networks, protecting OT assets, and ensuring compliance with industrial standards and regulations. The ISA-3000-2C2F-K9 delivers 2 Copper 10/100/1000 and 2 SFP fiber ports.
Key Features:
- Cisco Firepower Management Center
- DMZ firewall
- Layer 3 routing
The tabs contain the Cisco ISA-3000-2C2F-K9 datasheet with all the specifics you need.
Accessories
| GLC-SX-MM-RGD= | 1000 BASE-SX Ruggedized |
| GLC-LX-SM-RGD= | 1000 BASE-LX/LH Ruggedized |
| GLC-FE-100FX-RGD= | 100 BASE-FX Ruggedized |
| GLC-FE-100LX-RGD= | 100 BASE-LX Ruggedized |
| PWR-IE50W-AC |
AC to DC 24V/2.1A DIN Rail power supply, input 100-240VAC/1.25A or 125-250VDC/1A, output 24VDC
|
| PWR-IE50W-AC-IEC |
AC to DC 24V/2.1A DIN Rail power supply, input 100-240VAC/1.25A 50-60Hz, output 24VDC/2.1A, IEC Plug
|
| Included Accessories | 1 GB SD card |
Specifications
| Specifications | ISA-3000-2C2F-K9 |
| Processor | 4-core Intel Atom |
| DRAM | 8 GB |
| Flash Memory | 16 MB |
| Built-in Devices | 64 GB mSATA |
| Throughput: NGIPS (1024B) | 500 Mbps |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) | 375 Mbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 350 Mbps |
| Maximum concurrent sessions, with AVC | 50 |
| Maximum new connections per second, with AVC | 2700 |
| IPsec VPN throughput (1024B TCP with Fastpath) |
50 Mbps |
| Maximum VPN peers | 25 |
| Application Visibility and Control (AVC) | Standard, supporting more than 4000 applications as well as geo locations, users, and websites |
| URL filtering | More than 80 categories More than 280 million URLs categorized |
| Defined interfaces | 200, 400 (with SecPlus license on ASA), 400 (FTD) |
| VLAN counts | 5, 100 (with SecPlus license on ASA), 100 (FTD) |
| IPv4 MACsec Access Control Entries (ACEs) | 1000 with default TCAM template |
| NAT |
Bidirectional, 128 unique subnet NAT entries, which can expand to tens of thousands of translated entries if designed properly
|
| Mean Time Between Failure (MTBF) | 376,58 |
| Clock synchronization | ● IEEE 1588 (hardware-enabled PTP) |
| Operating Temperature | -40C to +70C |
| IP | IP30 |
| Warranty | Five-year limited HW warranty |
| Safety Certifications | Information technology equipment: ● UL/CSA 60950-1 ● EN 60950-1 ● CB to IEC 60950-1 with all country deviations ● NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): ● UL 508 ● CSA C22.2, No 142 ● EN/IEC 61010-2-201 ● UL/CSA 61010-1 Hazardous locations:* ● ANSI/ISA 12.12.01 (Class I, Div 2 A-D ● CSA C22.2 No 213 (Class 1, Div 2 A-D) ● UL/CSA 60079-0, -15 ● IEC 60079-0, -15 (IECEx test report Class I, Zone 2, group II gases) ● EN 60079-0, -15 ATEX certification (Class I, Zone 2, group II gases) |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 22 Class A ICES 003 Class A CNS13438 Class A KN22 EN55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips and Interruptions IEC/AS/NZS 62368.1 |
Properties
| Properties | ISA-3000-2C2F-K9 |
| Description | The Cisco ISA-3000-2C2F-K9 is an industrial security appliance safeguarding critical infrastructure in harsh environments. It features 2 copper Gigabit Ethernet (GbE) ports and 2 copper Fast Ethernet (FE) ports and provides advanced security capabilities, including firewall and intrusion prevention. |
| Product Family | ISA3000 |
| Product Type | Firewall |
| Copper 10/100/1000 (all bypass enabled) | 2 |
| SFP Fiber Ports | 2 |
| PoE (RJ-45) Port | No |
| Interface Provided |
1 x console (mini-USB), 1 x console RJ-45, 1 x management RJ-45, 2 x 1000Base-T RJ-45, 2 x 1000Base-X SFP
|
| Ports | 2 x 10/100/1000 + 2 x Gigabit SFP |
| Voltage | DC 12/24/48 V |
| Maximum Range | 9.6 Vdc to 60 Vdc |
| Power Consumption | 24 Watts |
| Form Factor | DIN Rail Mountable |
| Dimensions (HxWxD) Inches | 5.1" x 4.4" x 6.3" |
| Features |
Flow control
Firewall protection IP-routing DHCP support NAT support BOOTP support ARP support DiffServ support IPv6 support Full duplex mode Surge protection Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support Access Control List (ACL) support Quality of Service (QoS) Fanless LLDP support DHCP relay Link Aggregation Control Protocol (LACP) Static routing 802.1x authentication Precision Time Protocol (PTP) MACsec support Shock resistant Vibration proof VLAN Trunking Protocol (VTP) Internet Control Message Protocol (ICMP) |
