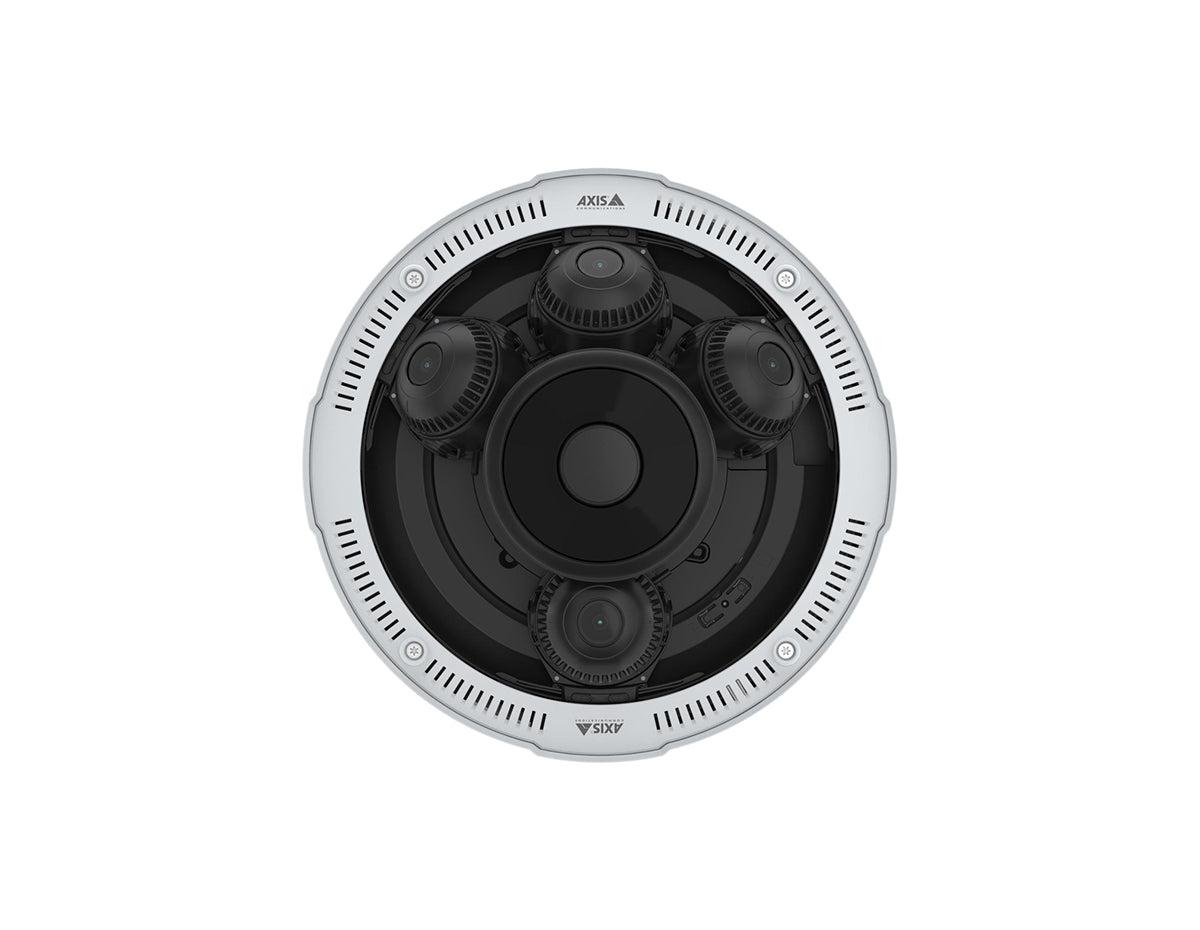

AXIS P3737-PLE PANORAMIC CAMERA
| Model: | 02634-001 |
| Detail: |
|
| List Price: | |
| Price: | $1,525.00 |
| You Save: | $174.00 (10% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360 IR illumination with individually controllable LEDs and a removable IR cut filter. So, you'll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there's both dark and light areas in the scene. Furthermore, it's possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Accessories
| Optional accessories | • AXIS TP3105-E Pendant Kit Black, AXIS TP3204-E Recessed • Mount, AXIS TP3832-E Dome Smoked, AXIS TP3833-E Dome • Casing Black, AXIS T94N01D Pendant Kit, AXIS TP3004–E Wall • Mount Black, AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards |
Specifications
| Specifications | AXIS P3737-PLE Panoramic Camera |
| Camera | |
| Image sensor | 4x 1/2.7” progressive scan RGB CMOS Pixel size 2.0 µm |
| Lens | Varifocal, 3.2–8.1 mm, F1.9-3.2 Horizontal field of view: 99°–37° Vertical field of view: 70°–28° Diagonal field of view: 134°–47° Minimum focus distance: 0.5 m (1.6 ft) Fixed iris, IR corrected, remote zoom and focus |
| Day and night | Automatic IR-cut filter |
| Minimum illumination | Color: 0.19 lux at 50 IRE, F1.9 B/W: 0 lux at 50 IRE, F1.9 0 lux with IR illumination on |
| Shutter speed | 5 MP and WDR on:1/28000 s to 1/5 s Quad HD and WDR on: 1/33500 s to 1/5 s WDR off: 1/50000 s to 1/5 s |
| Camera angle adjustment | Pan ±90° Tilt +25 to +95° Rotation -5° to +95° Twist ±20° |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 4096 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 4:3 4x 2592x1944 (4x 5 MP) to 4x 320x240 16:9 4x2560x1440 (4x Quad HD) to 4x 320x180 |
| Frame rate | 5 MP: Up to 20/20 fps (50/60 Hz) in all resolutions Quad HD: Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Signal-to-noise ratio | >55 dB |
| WDR | Forensic WDR: Up to 120 dB depending on the scene |
| Noise reduction | Spatial filter (2D noise reduction) Temporal filter (3D noise reduction) |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, text and image overlay, dynamic text and image overlay, privacy masks, polygon privacy mask |
| Image processing | Forensic WDR, Lightfinder, OptimizedIR |
| Audio | |
| Audio input/output | Audio features through portcast technology: two-way audio connectivity with AXIS T61 Mk ll |
| Audio streaming | Two-way (half duplex, full duplex) via network speaker pairing technology |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR *This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specifications at onvif.org |
| Video management systems | Compatible with AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners are available at axis.com/vms |
| Onscreen controls | Autofocus Video streaming indicator IR illumination Privacy masks Media clip |
| Edge-to-edge | Speaker pairing |
| Event conditions | Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, live stream active, casing open Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: manual trigger, virtual input MQTT: stateless Scheduled and recurring: schedule Video: average bitrate degradation, day-night mode, tampering |
| Event actions | Day-night mode Illumination: use lights, use lights while the rule is active MQTT: Publish Notification: HTTP, HTTPS, TCP, and email Overlay text Recordings: record, record while the rule is active SNMP traps: send, send while the rule is active Status LED: flash, flash while the rule is active Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network Share, and email |
| Built-in installation aids | Remote zoom and focus, pixel counter, barrel distortion correction |
| Analytics | |
| Multisensor analytics | 4 channels of analytics support |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Features: line crossing, object in area, crossline countingBETA, occupancy in areaBETA Up to 8 scenarios Metadata visualized with trajectories and color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates Confidence, position Attributes: Vehicle color, upper/lower clothing color, confidence, position Event data: Producer reference, scenarios, trigger conditions |
| Applications | Included AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm Supported Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Approvals | |
| Product markings | CSA, UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM |
| Supply chain | TAA compliant |
| EMC | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Railway: IEC 62236-4 |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group exempt, IS 13252, RCM AS/NZS 62368.1:2022 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7, 502.7, 505.7 506.6, 507.6 509.7, 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364 |
| Network | NIST SP500-267, IPv6 USGv6 |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest authentication, password protection Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network security | IEEE 802.1X (EAP-TLS)*, IEEE 802.1AR, HTTPS/HSTS*, TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering * This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources |
| General | |
| Casing | IP66-, IP67-, NEMA 4X- and IK09-rated Polycarbonate hard-coated dome Aluminum and plastic casing, polycarbonate (PC) dome Color: white NCS S 1002-B For repainting instructions, go to the product’s support page. For information about the impact on warranty, go to axis.com/warranty-implication-when-repainting. |
| Mounting | Mounting bracket with junction box holes (double-gang, single-gang, 4” square, and 4” octagon) ½” (M20) conduit side entry |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 IR illumination on: class 4, typical 13.25 W, max 23.30 W IR illumination off: class 3, typical 6.80 W, max 12.32 W |
| Connectors | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 15m (49.2 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating conditions | (-30°C to 50 °C) (-22 °F to 122 °F) Humidity 10–100% RH (condensing) Maxiumum temperature according to NEMA TS 2 (2.2.7): 74 °C(165 °F) |
| Storage conditions | (-40 °C to 65 °C ) (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | For the overall product dimensions, see the dimension drawing in this datasheet. Effective Projected Area (EPA): 0.022 m² (0.24 ft²) |
| Weight | 2 kg (4.4 lb) |
| Box content | Camera, installation guide, connector guard, cable gaskets |
| System tools | AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty | 5-year warranty |
| Sustainability | |
| Substance control | PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard JS709 RoHS in accordance with EU RoHS Directive 2011/65/EU/ and EN 63000:2018 REACH in accordance with (EC) No 1907/2006. For SCIP UUID, see echa.europa.eu |
| Materials | Renewable carbon-based plastic content: 17% (recycled: 9%, bio-based: 1%, carbon capture based: 7%) Screened for conflict minerals in accordance with OECD guidelines To read more about sustainability at Axis, go to axis.com/about-axis/sustainability |
| Environmental responsibility | axis.com/environmental-responsibility Axis Communications is a signatory of the UN Global Compact, read more at unglobalcompact.org |
Properties
| Properties | AXIS P3737-PLE Panoramic Camera |
| Description | The AXIS P3737-PLE Panoramic Camera offers four 5 MP channels, 360° IR illumination, flexible mounting, and advanced analytics support. |
| Product Family | AXIS Panoramic Camera |
| Product Type | Camera |
