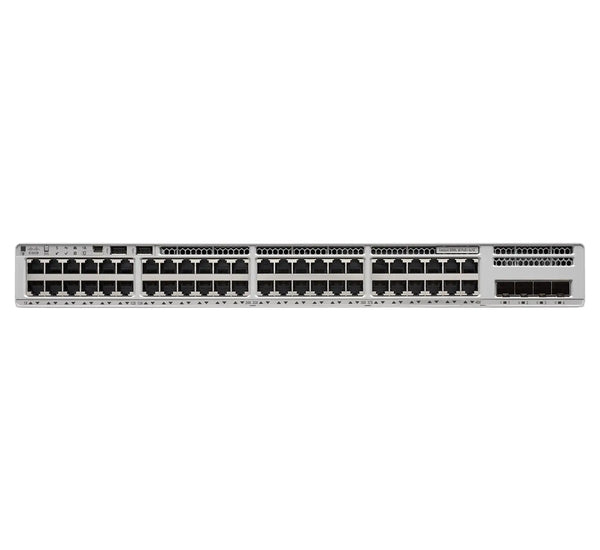

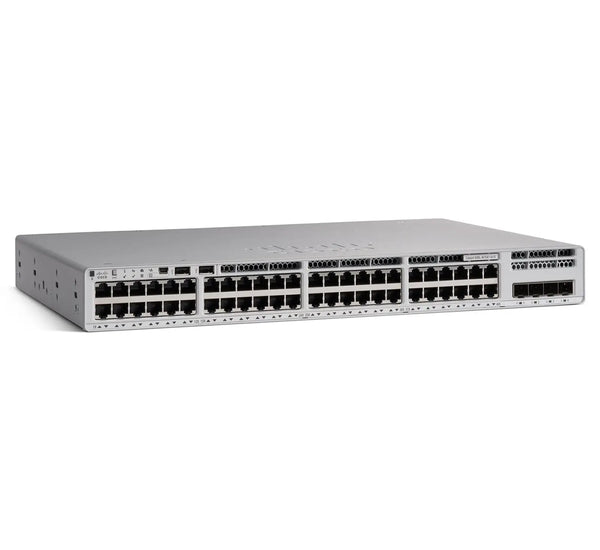

Cisco C9200L-48PL-4G-E Switch – 48-Port Partial PoE+, 1G Uplinks, Network Essentials

At a Glance

• Ports: 48 × 10/100/1000 PoE+ Ethernet ports (Partial PoE)
• Uplinks: 4 × 1G SFP fixed uplinks
• Stacking: StackWise-80 with 80 Gbps bandwidth
• PoE Budget: Up to 370W (with 600W PSU)

Product Overview

The Cisco C9200L-48PL-4G-E is a cost-effective Layer 3 access switch built for secure enterprise deployments. It features 48 PoE+ capable Ethernet ports and 4 fixed 1G SFP uplinks, making it ideal for moderate-density environments that don’t require full power delivery on every port.

This switch supports Cisco StackWise-80 for up to 8-switch stacking and runs on Cisco IOS XE for advanced automation, security, and programmability. Powered by the UADP 2.0 Mini ASIC and paired with the Network Essentials license, the C9200L-48PL-4G-E delivers robust Layer 3 services with efficient PoE allocation for small to mid-sized access layers.

Technical Specifications

Hardware

• Model: C9200L-48PL-4G
• Ports: 48 × 10/100/1000 PoE+ Ethernet ports (Partial PoE)
• Uplinks: 4 × 1G SFP fixed uplinks
• Stacking Support: StackWise-80
• Stacking Bandwidth: 80 Gbps
• Power Supply: 1 × 600W AC (PWR-C5-600WAC)
• PoE Budget: Up to 370W
• Fan Modules: Fixed
• Physical Dimensions: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
• Weight: 10.58 lbs (4.80 kg)

Performance

• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• DRAM: 2 GB
• Flash Memory: 4 GB
• VLAN Support: 4096 VLAN IDs
• MAC Address Table Size: 16,000 entries
• Jumbo Frame Support: Up to 9198 bytes

Software & Features

• Operating System: Cisco IOS XE
• License Tier: Network Essentials
• Routing Protocols: Static Routing, RIP, EIGRP Stub, OSPF (limited)
• Security Features: AES-128 MACsec, 802.1X, ACLs, Trustworthy Solutions

Certifications

• Safety: IEC 60950-1/62368-1, UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, AS/NZS 60950.1, AS/NZS 62368.1
• EMC: FCC Part 15 (CFR 47) Class A, EN 55032 Class A, CISPR 32 Class A, ICES-003 Class A, VCCI Class A, EN 55035, CISPR 35
• Environmental: Reduction of Hazardous Substances (RoHS) 5

Frequently Asked Questions

What does the “PL” in the model name mean?

“PL” stands for Partial PoE. All 48 ports are PoE+ capable, but the switch provides a shared power budget of 370W. Power is dynamically allocated across the ports as needed—ideal for environments where only some connected devices require power.

What uplinks are available on this model?

The switch includes 4 fixed 1G SFP uplinks for fiber or copper connectivity.

Can this switch be stacked with other models?

Yes. It supports StackWise-80 and can stack with other compatible C9200L models, up to 8 switches.

What power supply is included?

This model ships with a 600W AC power supply (PWR-C5-600WAC), delivering up to a 370W PoE budget.
