CISCO IE-4010-4S24P SWITCH
| Part No: | IE-4010-4S24P |
| Detail: |
Switch , managed, 24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink), DIN rail mountable |
| List Price: |
|
| Price: |
$5,241.18
|
| You Save: | $4,288.25 (45% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

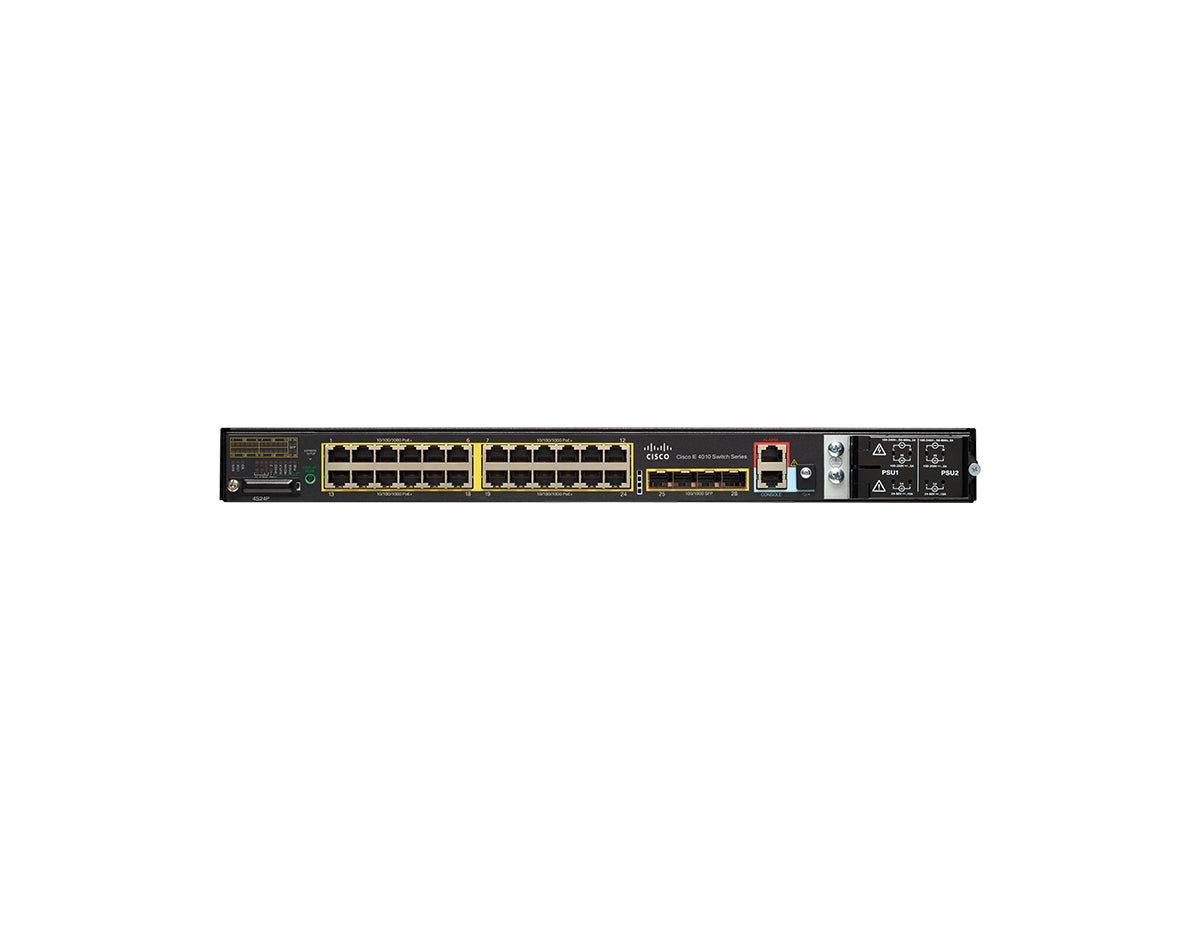

Cisco IE-4010-4S24P Industrial Ethernet Switch
The Cisco IE-4010-4S24P is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and demanding environments. This switch features 4 SFP ports and 24 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-4010-4S24P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 4 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 24 x Gigabit PoE+ Ports: Delivers power and high-speed data connectivity to PoE-enabled devices, reducing the need for additional power supplies.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview:
- Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with PoE+ support, advanced management, and high availability.
- Ports: 4 x SFP ports, 24 x Gigabit PoE+ ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-4010-4S24P datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features) |
| L-IE4000-RTU= | IE4010 Electronic software license upgrade from LAN base L2 to IP Services L3 features |
| LIC-MRP-Manager= | MRP ring manager license |
| LIC-MRP-Client= | MRP ring client license |
| SD-IE-1GB= | IE 1GB SD Memory Card - Spare |
| Cisco ONE„¢Licenses | |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engineer - Base |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual Includes IP Services |
| C1-FLOW-IE4K | Cisco ONE Netflow IE4000 |
| C1A1AIE40001K9 | Cisco ONE Advanced Perpetual - IE 4000 |
| C1F1AIE40001K9 | Cisco ONE Foundation Perpetual - IE 4000, BROWNFIELD |
| C1F1AIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual - IE 4000/5000 |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual - IE 4000 |
| Cisco IE 4010 Cisco DNA licenses | |
| IE4010-DNA-E-H | Cisco DNA Essentials license |
| IE4010-DNA-E-H-3Y | Cisco DNA Essentials 3-year term license option |
| IE4010-DNA-E-H-5Y | Cisco DNA Essentials 5-year term license option |
| IE4010-DNA-E-H-7Y | Cisco DNA Essentials 7-year term license option |
| IE4010-DNA-A-H | Cisco DNA Advantage license |
| IE4010-DNA-A-H-3Y | Cisco DNA Advantage 3-year term license option |
| IE4010-DNA-A-H-5Y | Cisco DNA Advantage 5-year term license option |
| IE4010-DNA-A-H-7Y | Cisco DNA Advantage 7-year term license option |
Specifications
| Specifications | IE-4010-4S24P |
| DRAM | 1 GB |
| Flash Memory | 128 MB |
| Hardware | |
| PoE power budget | Not applicable |
| Removable storage | 1-GB removable SD flash memory card (Included) Mini-USB connector |
| Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Console ports | RJ-45 connector |
| Power inputs | Dual DC power inputs |
| Available power budget for PoE/PoE+ with different power supply wattage | |
| 150W | 80 |
| 150W (dual) | 200 |
| 250W | 180 |
| 250W + 150W | 285 |
| 250W (dual) | 385 |
| Number of Queues | 4 egress |
| Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
| Unicast MAC addresses | 16,000 |
| Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
| No. of VLANs | 1,000 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 1000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
| Power Consumption | Maximum of 70W not including PoE consumption |
| Operating Temperature | Operating Temperature: -40C to +75C -40C to +70C (Vented Enclosure - 40 LFM Air Flow) -40C to +60C (Sealed Enclosure - 0 LFM Air Flow) -34C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing, 16 hours) Operating altitude: Up to 13,800ft EN 60068-2-1, EN 61163 |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 13,800 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 429,620 hours |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A EN 300 386 CNS 13438 Class A |
| Electromagnetic immunity | EN55024 CISPR 24 AS/NZS CISPR 24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips |
| Industry standards | EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Communication networks for power utility automation EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock PROFINET conformance B IP30 NEMA TS-2 (EMC, environmental, mechanical) |
| Safety standards and certifications |
Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 UL 61010-2 CSA C22.2, No 142 Hazardous locations: Class 1, Div2, gas groups IIC ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) (Cabinet enclosure required) |
| Humidity | Relative humidity of 5% to 95% noncondensing IEC 60068-2-3 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration) |
| Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas) |
Properties
| Properties | Cisco IE-4010-4S24P |
| Description | IE4010 with 24GE Copper PoE+ ports and 4GE SFP uplink ports |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 28 |
| SFP Uplinks | 4 FE/GE |
| SFP fiber ports (S) | - |
| Copper PoE/PoE+ Ports(P) | 24 FE/GE |
| Default software | LAN Base |
| Software Features | |
| LAN Base License (Default) | Features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Managament | Fast Boot, Express Setup, HTTP Web Config, SmartPort, MIB, SNMP, syslog, Storm ControlUnicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Energywise, PnP, Customized TCAM/SDM size configuration, DOM (digital optical management), Port-based DHCP |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Cisco TrustSec®security, FIPS 140-2, ACT2, Secure Boot, Full flexible Netflow |
| Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, Modular QoS CLI (MQC),PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 Routing | IPv4 Static Routing |
| Utility |
Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag) |
| Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2 Default Profile |
| Redundancy |
Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox) |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Dimensions (HxWxD) Inches | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 |
| Weight | 12.1 lb (5.46 kg) |
| Power Supply Weight | PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg) PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg) PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
