AXIS P3925-R RJ-45 NETWORK CAMERA
| Model: | 01920-001 |
| Detail: |
|
| List Price: | |
| Price: | $500.00 |
| You Save: | $49.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

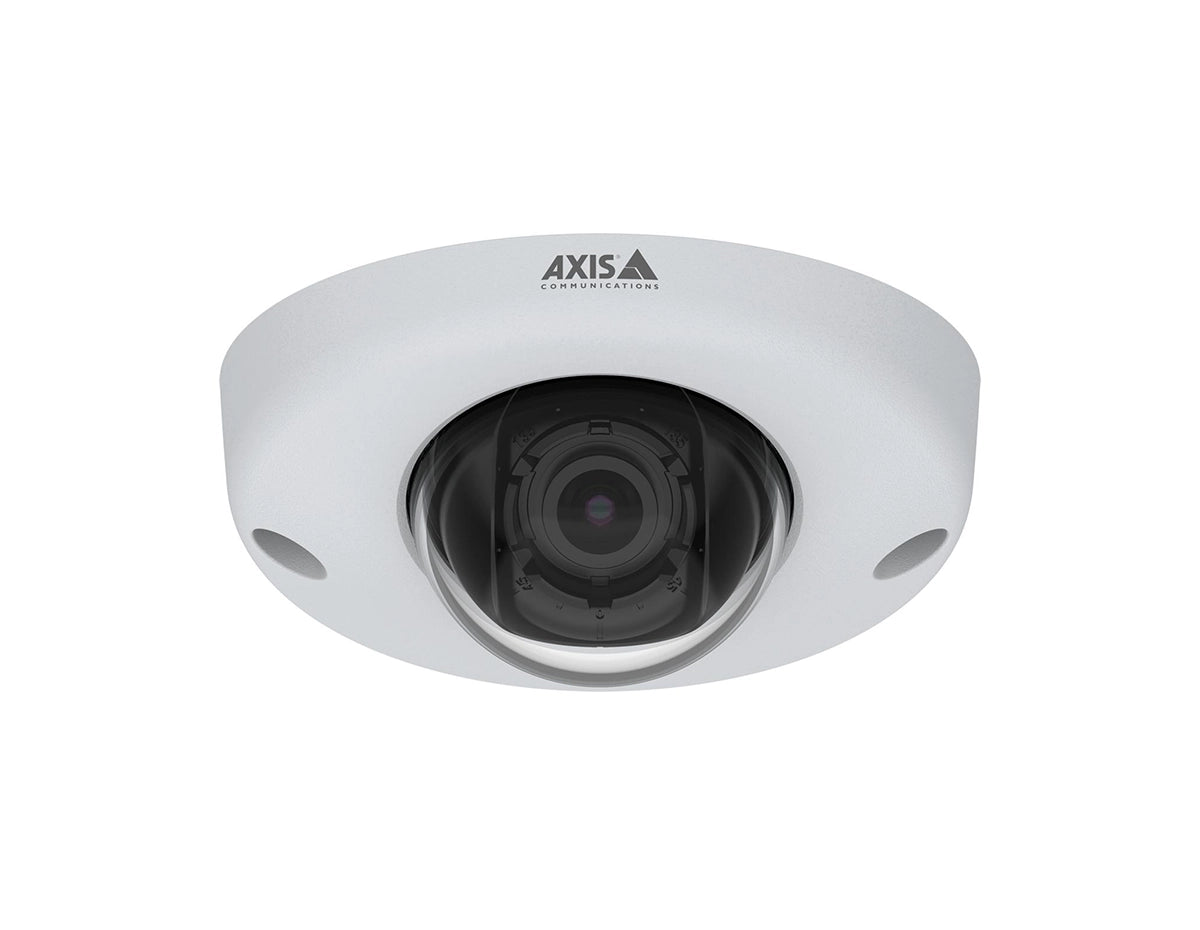

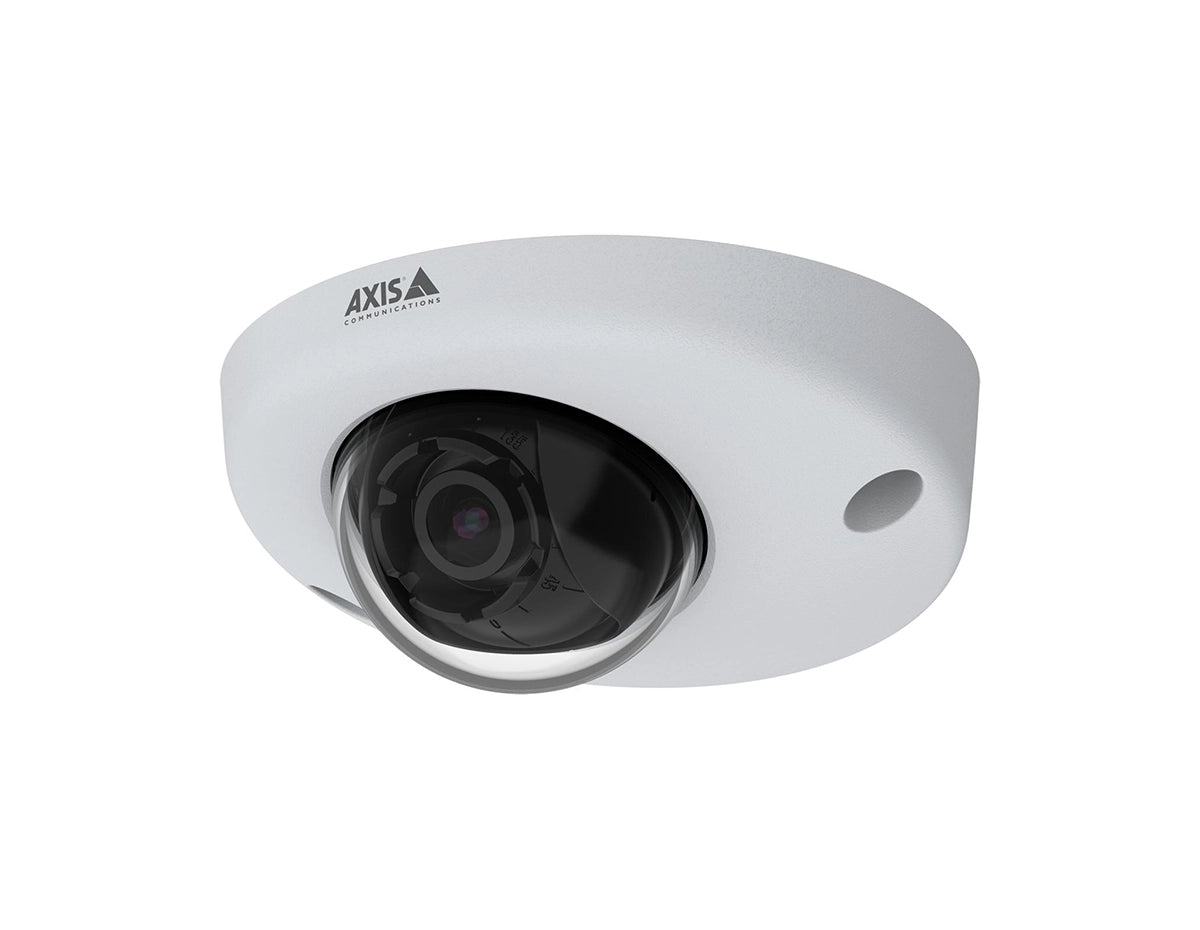

AXIS P3925-R RJ-45 Network Camera (01920-001)
The Axis P3925-R dome camera has been specifically engineered for onboard surveillance applications. Its durable IK10-rated metal casing enhances vandal resistance, making it a suitable choice for surveillance in public and private transportation settings. Electronic image stabilization technology ensures the capture of clear and stable images, mitigating the impact of motion and vibrations experienced during high-speed and long-distance travel. Furthermore, the P3295-R adheres to various transportation industry standards such as EN50155, EN45545, and NFPA 130.
Quick Specs:
- Vandal-resistant, metal casing
- Complies with EN50155, EN45545 and NFPA 130
- Enhanced security features
- Lightfinder and Forensic WDR
Please see the related tabs for the 01920-001 datasheet and compatible accessories.
Accessories
| Optional accessories | |
| Lenses | • Lens M12 2.1 mm F1.8 IR: horizontal field of view 145° • Lens M12 3.6 mm F1.8 IR: horizontal field of view 87° • Lens M12 6 mm, F1.9 IR: horizontal field of view 56° • Lens M12 8 mm F1.8 IR: horizontal field of view 40° |
| Other | • AXIS T94D01S Mount Bracket, • AXIS T94D02S Curved Mount Bracket, • Network coupler IP66, • Network cable coupler indoor |
Specifications
| Specifications | AXIS P3925-R RJ-45 Network Camera |
| Camera | |
| Image sensor | 1/2.9” Progressive scan RGB CMOS |
| Lens | 2.8 mm, F1.6 |
| Horizontal field of view: 110° | |
| Vertical field of view: 62° | |
| M12 mount, fixed iris | |
| See Optional accessories for exchangeable lenses | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.06 lux at 30 IRE F1.6 |
| B/W: 0.01 lux at 30 IRE F1.6 | |
| Color: 0.12 lux at 50 IRE F1.6 | |
| B/W: 0.02 lux at 50 IRE F1.6 | |
| Shutter speed | 1/33500 s to 2 s |
| Camera angle adjustment | Pan: ±30° |
| Tilt: 15-90° | |
| Rotation: ±175° | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1 GB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 1280x960 to 160x120 |
| 1920x1080 to 160x90 | |
| Wide Dynamic Range | Forensic WDR |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| 45 fps in 720p | |
| Capture mode 2MP 1920x1080 (16:9) @25/30 fps | |
| Capture mode 1MP 1280x720 (16:9) @45 fps | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264 and H.265 | |
| Video streaming indicator | |
| Multi-view streaming | Up to 8 individually cropped-out view areas |
| Image settings | Compression, brightness, sharpness, contrast, white balance, Forensic WDR, exposure control, exposure zones, fine-tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 20 individual polygonal privacy mask, mirroring of images, defogging, electronic image stabilization* |
| Scene profiles: forensic, vivid, traffic overview | |
| *: Use this function only when the camera is directed to capture scenes outside of the vehicle | |
| Pan/Tilt/Zoom | Digital PTZ, preset positions, guard tour, control queue |
| Network | |
| Security | Password protection, IP address filtering, HTTPS*1 encryption, IEEE 802.1x (EAP-TLS)*1 network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, firmware with Long Term Support (LTS) firmware*2 |
| *1: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| *2: In the LTS track for firmware upgrades, improvements are focused on cybersecurity and stability. New features are available in the firmware from the Active track | |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| AXIS Video Hosting System (AVHS) with One-Click Connection | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and | |
| ONVIF® Profile T | |
| Event conditions | Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, shock detected, storage | |
| failure, system ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Day-night mode |
| Defog | |
| Guard tours | |
| Upload images or video clips: FTP, HTTP, HTTPS, SFTP, email and | |
| network share | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Preset positions | |
| Record video: SD card and network share | |
| SNMP trap messages | |
| WDR mode | |
| MQTT publish | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm*1 , blocked view detection*2, shock detection Support for AXIS Camera Application Platform |
| *1: For detection of tampering attempts in static and non-crowded scenes. | |
| *2: For detection of tampering attempts in onboard environments. | |
| General | |
| Casing | IP66/67-, NEMA 250 4X- and IK10-rated aluminum casing, |
| polycarbonate clear dome | |
| Mounting | Inside vehicles and rolling stock |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| Typical 4.2 W, max 6.4 W | |
| Connectors | RJ45: male, 10BASE-T/100BASE-TX |
| All connectors support PoE | |
| Storage | Support for microSD/microSDHC/microSDXC card with UHS |
| Speed Class U1 | |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Support for recording to network-attached storage (NAS) | |
| Operating conditions | Normal: -40 °C to 55°C (-40 °F to 131°F) |
| Maximum (intermittent): 70 °C (158 °F) | |
| Arctic Temperature Control: start-up at -40 °C (-40 °F) | |
| Humidity: 10-100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals | EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), | |
| VCCI Class A, RCM AS/NZS CISPR 32 Class A, | |
| KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, | |
| IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498 | |
| Safety | |
| IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, | |
| UN ECE R118, NFPA 130, IS 13252 | |
| Environment | |
| IEC/EN 61373 Category 1 Class B, | |
| IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of | |
| NEMA 250 Type 4X (ingress of water and gasket test), | |
| IEC/EN 62262 IK10, | |
| IEC 60721-3-5 Class 5M3 (vibration and shock), | |
| 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, | |
| IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 49.4 mm (1.94 in), ø 110 mm (4.33 in) |
| Weight | RJ45: 400 g (0.88 lb) |
| Included accessories | Installation guide, Windows® decoder 1-user license, drill hole |
| template, lens tool, Resistorx® L-key | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis’ Application Development Partners | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese | |
Properties
| Properties | AXIS P3925-R RJ-45 Network Camera |
| Description | The AXIS P3925-R Network Camera is a high-performance dome camera designed for onboard surveillance, meeting strict industry standards like EN50155, EN45545, and NFPA 130. Equipped with Axis Lightfinder and Forensic WDR, it ensures excellent image quality in challenging lighting conditions. Housed in a vandal-resistant metal casing with enhanced security features, this camera is robust, providing reliable surveillance with electronic image stabilization. |
| Product Family | AXIS P3925-R Network Camera |
| Product Type | Camera |
