[shortdesc]

Switch
L3
managed
16 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 8 x 10/100/1000/SFP
rack-mountable

[/shortdesc]

[properties]

Properties	HPE FlexNetwork 5510-JH149A HI
Description	Switch, L3, managed, 16 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 8 x 10/100/1000/SFP, rack-mountable
Product Family	FlexNetwork 5510 Series
Product Type	Ethernet Switch
I/O ports and slots	(16) fixed Gigabit Ethernet SFP ports Ports 1 - 8 support MACSec
	(8) Combo GbE (SFP and RJ45) dual-personality 1000 Mbps ports
	(4) SFP+ 10GbE ports
	(1) port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
Additional ports and slots	1 dual-personality (RJ-45 or mini USB) serial console port 1 RJ-45 out-of-band management port 1 USB 2.0
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Electrical characteristics
Frequency	50/60 Hz
Voltage	100-240 VAC, rated (90-264 VAC, max) -48 to -60 VDC, rated (-36 to -72 VDC, max) (depending on power supply chosen)
Maximum heat dissipation	409 BTU/hr (431.49 kJ/hr)
Maximum power rating	120 W
Idle power	48 W
Fan tray	Airflow direction is Front (port side) to Back (power cord side)
Dimensions	17.32(w) x 14.17(d) x 1.72(h) (43.99 x 35.99 x 4.37 cm) (1U height)
Weight	16.53 lb (7.5 kg) shipping weight
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

[/properties]

[specifications]

Specifications	5510-JH149A
Memory and processor	2 GB SDRAM Packet buffer size: 4 MB 512 MB flash
Performance
1000 Mb Latency	< 5 µs
10 Gbps Latency	< 3 µs
Throughput	up to 214 Mpps
Routing/Switching capacity	288 Gbps
Routing table size	32768 entries (IPv4), 16384 entries (IPv6)
MAC address table size	32768 entries
Management	IMC - Intelligent Management Center Command-line interface Web browser SNMP manager
Operating temperature	32°F to 113°F (0°C to 45°C)
Operating relative humidity	10% to 90%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing
Acoustic	Low-speed fan: 50.5 dB, High-speed fan: 66.9 dB; ISO 7779
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/ NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
Emissions	EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Immunity	EN 55024 EN300 386
Standard and protocols
BGP	RFC 1657 Definitions of Managed Objects for BGPv4 RFC 1771 BGPv4 RFC 2385 BGP Session Protection via TCP MD5 RFC 2858 BGP-4 Multi-Protocol Extensions
Device management	RFC 1155 Structure and Mgmt. Information (SMIv1) RFC 1157 SNMPv1/v2c RFC 1305 NTPv3 RFC 2573 (SNMPv3 Applications) RFC 2578-2580 SMIv2 RFC 2819 (RMON groups Alarm, Event, History and Statistics only) RFC 3416 (SNMP Protocol Operations v2) RFC 3417 (SNMP Transport Mappings) HTML and telnet management Multiple Configuration Files SNMP v3 and RMON RFC support SSHv1/SSHv2 Secure Shell TACACS/TACACS+
General protocols	IEEE 802.1ad Q-in-Q IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP) IEEE 802.1AE MACsec IEEE 802.1AX-2008 Link Aggregation IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q (GVRP) IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1v VLAN classification by Protocol and Port IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ac (VLAN Tagging Extension) IEEE 802.3ad Link Aggregation (LAG) IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 855 Telnet Option Specification RFC 894 IP over Ethernet RFC 925 Multi-LAN Address Resolution RFC 950 Internet Standard Subnetting Procedure RFC 951 BOOTP RFC 959 File Transfer Protocol (FTP) RFC 1027 Proxy ARP RFC 1042 IP Datagrams RFC 1058 RIPv1 RFC 1071 Computing the Internet Checksum RFC 1166 IP Addresses RFC 1122 Requirements for Internet Hosts-Communication Layers RFC 1123 Requirements for Internet Hosts RFC 1141 Incremental updating of the Internet checksum RFC 1191 Path MTU discovery RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1533 DHCP Options and BOOTP Vendor Extensions RFC 1542 BOOTP Extensions RFC 1591 DNS (client only) RFC 1643 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 1723 RIP v2 RFC 1812 IPv4 Routing RFC 1866 Hypertext Markup Language-2.0 RFC 1887 An Architecture for IPv6 Unicast Address Allocation RFC 1901 Introduction to Community-based SNMPv2 RFC 1902-1907 SNMPv2 RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2338 VRRP RFC 2375 IPv6 Multicast Address Assignments RFC 2462 IPv6 Stateless Address Autoconfiguration RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers RFC 2475 Architecture for Differentiated Services RFC 2597 Assured Forwarding PHB Group RFC 2616 Hypertext Transfer Protocol-HTTP/1.1 RFC 2644 Directed Broadcast Control RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs) RFC 2711 IPv6 Router Alert Option RFC 2784 Generic Routing Encapsulation (GRE) RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 2868 RADIUS Attributes for Tunnel Protocol Support RFC 3046 DHCP Relay Agent Information Option RFC 3209 RSVP-TE Extensions to RSVP for LSP Tunnels RFC 3246 Expedited Forwarding PHB RFC 3410 Applicability Statements for SNMP RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3416 Protocol Operations for SNMP RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3484 Default Address Selection for Internet Protocol version 6 (IPv6) RFC 3493 Basic Socket Interface Extensions for IPv6 RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6 RFC 3576 Ext to RADIUS (CoA only) RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines RFC 3587 IPv6 Global Unicast Address Format RFC 3596 DNS Extensions to Support IP Version 6 RFC 3623 Graceful OSPF Restart RFC 3704 Unicast Reverse Path Forwarding (URPF) RFC 3768 Virtual Router Redundancy Protocol (VRRP) RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 RFC 4090 Fast Reroute Extensions to RSVP-TE for LSP Tunnels RFC 4113 Management Information Base for the User Datagram Protocol (UDP) RFC 4213 Basic IPv6 Transition Mechanisms RFC 4250 The Secure Shell (SSH) Protocol Assigned Numbers RFC 4251 The Secure Shell (SSH) Protocol Architecture RFC 4252 The Secure Shell (SSH) Authentication Protocol RFC 4253 The Secure Shell (SSH) Transport Layer Protocol RFC 4254 The Secure Shell (SSH) Connection Protocol RFC 4291 IP Version 6 Addressing Architecture RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches RFC 4575 A Session Initiation Protocol (SIP) Event Package for Conference State RFC 4594 Configuration Guidelines for DiffServ Service Classes RFC 4675 RADIUS VLAN & Priority RFC 4750 OSPF Version 2 Management Information Base RFC 4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 802.1r-GARP Proprietary Attribute Registration Protocol (GPRP)
IP multicast	RFC 1112 IGMPv1 RFC 2236 IGMPv2 RFC 2710 Multicast Listener Discovery (MLD) for IPv6 RFC 2858 Multiprotocol Extensions for BGP-4 RFC 3376 IGMPv3 RFC 3569 An Overview of Source-Specific Multicast (SSM) RFC 3618 Multicast Source Discovery Protocol (MSDP) RFC 3973 PIM Dense Mode RFC 4601 PIM Sparse Mode
IPv6	RFC 1981 IPv6 Path MTU Discovery RFC 2460 IPv6 Specification RFC 2461 IPv6 Neighbor Discovery RFC 2463 ICMPv6 RFC 2464 Transmission of IPv6 over Ethernet Networks RFC 2545 Use of BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing RFC 3162 RADIUS and IPv6 RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses RFC 3307 IPv6 Multicast Address Allocation RFC 3315 DHCPv6 (client and relay) RFC 3484 Default Address Selection for IPv6 RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6 RFC 4291 IP Version 6 Addressing Architecture RFC 4293 MIB for IP RFC 4443 ICMPv6 RFC 4861 IPv6 Neighbor Discovery RFC 4862 IPv6 Stateless Address Auto-configuration RFC 6724 Default Address Selection for Internet Protocol Version 6 (IPv6)
Security	RFC 1212 Concise MIB Definitions RFC 1213 MIB II RFC 1215 A Convention for Defining Traps for use with the SNMP RFC 1493 Bridge MIB RFC 1757 Remote Network Monitoring MIB RFC 2096 IP Forwarding Table MIB RFC 2233 Interface MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Notification MIB RFC 2573 SNMP-Target MIB RFC 2574 SNMP USM MIB RFC 2618 RADIUS Authentication Client MIB RFC 2620 RADIUS Accounting Client MIB RFC 2665 Ethernet-Like-MIB RFC 2668 802.3 MAU MIB RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON MIB RFC 2863 The Interfaces Group MIB RFC 2925 Ping MIB RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 3418 MIB for SNMPv3 RFC 3621 Power Ethernet MIB
MPLS	RFC 2961 RSVP Refresh Overhead Reduction Extensions RFC 3031 Multiprotocol Label Switching Architecture RFC 3032 MPLS Label Stack Encoding RFC 3036 LDP Specification RFC 4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling
Network management	IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 1215 Convention for Defining Traps for use with the SNMP RFC 2579 Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2818 HTTP over TLS RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 6398 IP Router Alert Considerations and Usage ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3
OSPF	RFC 1587 OSPF NSSA RFC 1850 OSPFv2 Management Information Base (MIB), traps RFC 2328 OSPFv2 RFC 2370 OSPF Opaque LSA Option
QoS/CoS	RFC 2474 DS Field in the IPv4 and IPv6 Headers RFC 3260 New Terminology and Clarifications for DiffServ
Security	IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 3260 New Terminology and Clarifications for DiffServ RFC 4716 SSH Public Key File Format Secure Sockets Layer (SSL) SSHv2 Secure Shell

[/specifications]

[accesories]

Transceivers
JD100A	HPE X115 100M SFP LC BX 10-U Transceiver
JD101A	HPE X115 100M SFP LC BX 10-D Transceiver
JD102B	HPE X110 100M SFP LC FX Transceiver
JD120B	HPE X110 100M SFP LC LX Transceiver
JD061A	HPE X125 1G SFP LC LH40 1310nm Transceiver
JD062A	HPE X120 1G SFP LC LH40 1550nm Transceiver
JD063B	HPE X125 1G SFP LC LH70 Transceiver
JD089B	HPE X120 1G SFP RJ45 1000BASE-T Transceiver
JD098B	HPE X120 1G SFP LC BX 10-U Transceiver
JD099B	HPE X120 1G SFP LC BX 10-D Transceiver
JD103A	HPE X120 1G SFP LC LH100 Transceiver
JD118B	HPE X120 1G SFP LC SX Transceiver
JD119B	HPE X120 1G SFP LC LX Transceiver
JD092B	HPE X130 10G SFP+ LC SR Transceiver
JD094B	HPE X130 10G SFP+ LC LR Transceiver
JH693A	HPE X240 10G SFP+ SFP+ 0.65m DAC Campus-Cable
JH694A	HPE X240 10G SFP+ SFP+ 1.2m DAC Campus-Cable
JH695A	HPE X240 10G SFP+ SFP+ 3m DAC Campus-Cable
JG081C	HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG234A	HPE X130 10G SFP+ LC ER 40km Transceiver
JG915A	HPE X130 10G SFP+ LC LH 80km Transceiver
JD093B	HPE X130 10G SFP+ LC LRM Transceiver
JL250A	HPE X130 10G SFP+ LC LH80 Tunable Transceiver
JH678A	HPE X140 40G QSFP+ LC BiDi 100m MM Campus-Transceiver
JH679A	HPE X140 40G QSFP+ MPO SR4 Campus-Transceiver
JH697A	HPE X240 40G QSFP+ QSFP+ 1m DAC Campus-Cable
JH698A	HPE X240 40G QSFP+ QSFP+ 3m DAC Campus-Cable
JH699A	HPE X240 40G QSFP+ QSFP+ 5m DAC Campus-Cable
JG329A	HPE X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JH700A	HPE X240 QSFP+ 4x10G SFP+ 3m DAC Campus-Cable
JG331A	HPE X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JH677A	HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Campus-Transceiver
JH681A	HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Campus-Transceiver
Cables
JL448A	Aruba X2C2 RJ45 to DB9 Console Cable
AJ833A	HPE 0.5 m Multimode OM3 LC/LC Optical Cable
AJ834A	HPE 1 m Multimode OM3 LC/LC Optical Cable
AJ835A	HPE 2 m Multimode OM3 LC/LC Optical Cable
AJ836A	HPE 5 m Multimode OM3 LC/LC Optical Cable
AJ837A	HPE 15 m Multimode OM3 LC/LC Optical Cable
AJ838A	HPE 30 m Multimode OM3 LC/LC Optical Cable
AJ839A	HPE 50 m Multimode OM3 LC/LC Optical Cable
QK732A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK733A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK734A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK735A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK736A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK737A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
Power Supplies
JD362B	HPE X361 150W 100-240VAC to 12VDC Power Supply
JD366B	HPE X361 150W 48-60VDC to 12VDC Power Supply

[/accesories]

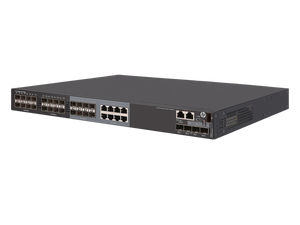

HPE 5510 24G SFP 4SFP+ HI 1-slot Switch (JH149A)

The HPE 5510 24G SFP 4SFP+ HI 1-slot Switch (JH149A) is a versatile networking solution designed for medium and large enterprise networks. It offers advanced Layer 3 capabilities, resiliency, and multiservice support for data centers, large campuses, and metro Ethernet networks. The HPE 5510 24G SFP 4SFP+ HI 1-slot Switch is a comprehensive solution with complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, offering investment protection for future network transitions.

Key Features:

- 288 Gbps Switching Capacity

- Multi-level QoS

- 32K MAC addresses

The tabs above contain the HPE JH149A datasheet with all the specifics you need.

HPE Aruba FlexNetwork 5510 HI Series Switches

HPE JH149A 5510 24G SFP 4SFP+ HI 1-slot Switch
