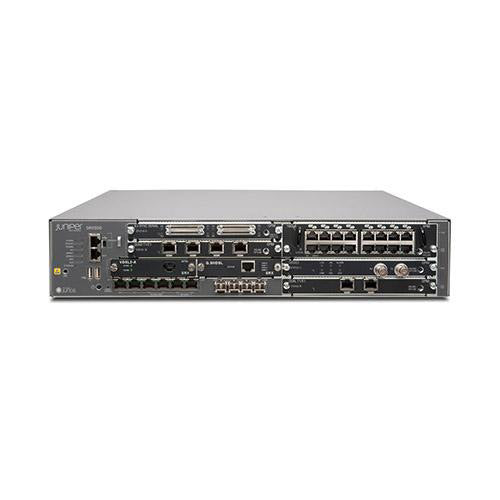

JUNIPER SRX550-M-SYS-JE-AC FIREWALL

Model: SRX550-M-SYS-JE-AC
Detail: SRX550M Services Gateway, Junos Software Enhanced, 10GE, 2 x MPIM, 6 x GPIM slot, 4G RAM, 8G Flash, AC power supply, Routing & Switching, Application Support, IPSec, NAT, MPLS
List Price: US$16,605.00
Price:
$11,624.00
You Save: $4,981.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

[shortdesc]
  • SRX550M Services Gateway
  • Junos Software Enhanced
  • 10GE
  • 2 x MPIM
  • 6 x GPIM slot
  • 4G RAM
  • 8G Flash
  • AC power supply
  • Routing & Switching
  • Application Support
  • IPSec
  • NAT
  • MPLS
[/shortdesc]
[properties]
Properties Juniper SRX550-M-SYS-JE-AC
Description SRX550M Service Gateway includes hardware (10GE, 2x MPIM slots, 6x GPIM slots, 4G RAM, 8G Flash, AC PSU, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security).
Product Family SRX550 Series
Product Type Security Firewall
Connectivity Specification
Fixed I/O 6 x 10/100/1000 BASE-T + 4 small form-factor pluggable transceivers (SFP transceivers)
I/O slots 2 x SRX Series Mini-PIM, 6 x Gigabit-Backplane Physical Interface Module (GPIM) or multiple GPIM and XPIM combinations
Services and Routing Engine slots No
Maximum number of PoE ports Up to 40 ports of 802.3af/at with maximum 247 W
USB 2
Includes Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security)
Rack-mountable Yes, 2 U
Dimensions (WxHxD) 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm)
Weight (device and PSU) 21.96 lb (9.96 kg) (no interface modules, 1 power supply)
Power
Power supply (AC) 100-240 VAC, single 645 W or dual 645 W
Redundant power supply (hot swappable) Yes (up to maximum capacity of single PSU)
Average heat dissipation 238 BTU/hr
Maximum heat dissipation 1449 BTU/hr
Maximum PoE power 247 W redundant, or 494 W non-redundant
Average power consumption 85 W
Input frequency 50-60 Hz
Maximum current consumption 7.5 A @ 100 VAC with single PSU with PoE, 10.5 A @ 100 VAC with dual PSU with PoE
Maximum inrush current 45 A for half-cycle
Acoustic noise level 51.8 Db
[/properties][specifications]
Specifications SRX550-M-SYS-JE-AC
System memory (DRAM) 4 GB
Memory slots 2 DIMM
Flash Memory 8 GB, CF internal
USB port for external storage Yes
Firewall performance (max) 5.5 Gbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 1.0 Gbps
New sessions/second (sustained, TCP, 3-way) 27,000
Firewall performance (large packets) 7 Gbps
Firewall performance (IMIX) 2 Gbps
Firewall + routing pps (64 Byte) 700 Kpps
Firewall performance (HTTP) 2 Gbps
IPsec VPN throughput (large packets) 1 Gbps
IPsec VPN tunnels 2000
Application firewall 2.0 Gbps
Intrusion prevention system (IPS) 800 Mbps
Antivirus 300 Mbps (Sophos antivirus)
Connections per second 27,000
Maximum concurrent sessions 375,000
Maximum security policies 8000
Maximum users supported Unrestricted
Route table size (RIB/FIB) (IPv4 or IPv6) 1.5 million/750,000
NAT rules 6144
MAC table size 15,000
Number of remote access/SSL VPN (concurrent) users 500
GRE tunnels 1500
Maximum number of security zones 96
Maximum number of virtual routers 128
Maximum number of VLANs 3967
AppID sessions 65,000
IPS sessions 64,000
URL filtering (URLF) sessions 64,000
Software Specifications
Routing Protocols IPv4, IPv6, ISO, Connectionless Network Service (CLNS)
Static routes
RIP v1/v2
OSPF/OSPF v3
BGP with route reflector
IS-IS
Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF)
Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), and Point-to-Point Protocol over Ethernet (PPPoE)
Virtual routers
Policy-based routing, source-based routing
Equal-cost multipath (ECMP)
QoS Features Support for 802.1p, DiffServ code point (DSCP), EXP
Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters
Marking, policing, and shaping
Classification and scheduling
Weighted random early detection (WRED)
Guaranteed and maximum bandwidth
Ingress traffic policing
Virtual channels
Hierarchical shaping and policing
Switching Features ASIC-based Layer 2 forwarding
MAC address learning
VLAN addressing and integrated routing and bridging (IRB) support
Link aggregation and LACP
Link Layer Discovery Protocol (LLDP) and Link Layer Discovery Protocol–Media Endpoint Discovery (LLDP-MED)
Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP)
Multiple VLAN Registration Protocol (MVRP)
802.1X authentication
Firewall Services Stateful and stateless firewall
Zone-based firewall
Screens and distributed denial of service (DDoS) protection
Protection from protocol and traffic anomaly
Integration with Pulse Unified Access Control (UAC)
Integration with Aruba Clear Pass Policy Manager
User role-based firewall
SSL Inspection (forward-proxy)
Network Address Translation (NAT) Source NAT with Port Address Translation (PAT)
Bidirectional 1:1 static NAT
Destination NAT with PAT
Persistent NAT
IPv6 address translation
VPN Features Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/IPv6/Dual Stack)
Juniper Secure Connect: Remote access/SSL VPN
Configuration payload: Yes
IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384
Authentication: Pre-shared key and public key infrastructure (PKI) (X.509)
IPsec (Internet Protocol Security): Authentication Header (AH)/Encapsulating Security Payload (ESP) protocol
IPsec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256
IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
Perfect forward secrecy, anti-reply
Internet Key Exchange: IKEv1, IKEv2
Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring
VPNs GRE, IP-in-IP, and MPLS
Network Services Dynamic Host Configuration Protocol (DHCP) client/server/relay
Domain Name System (DNS) proxy, dynamic DNS (DDNS)
Juniper real-time performance monitoring (RPM) and IP-monitoring
Juniper flow monitoring (J-Flow)
Bidirectional Forwarding Detection (BFD)
Two-Way Active Measurement Protocol (TWAMP)
IEEE 802.3ah Link Fault Management (LFM)
IEEE 802.1ag Connectivity Fault Management (CFM)
High Availability Features Virtual Router Redundancy Protocol (VRRP)
Stateful high availability
Dual box clustering
Active/passive
Active/active
Configuration synchronization
Firewall session synchronization
Device/link detection
In-Band Cluster Upgrade (ICU)
Dial on-demand backup interfaces
IP monitoring with route and interface failover
Management, Automation, Logging, and Reporting SSH, Telnet, SNMP
Smart image download
Juniper CLI and Web UI
Mist AI
Simplified management
WAN Assurance
Junos Space and Security Director
Python, PyEz, and Ansible modules
Junos OS event, commit, and OP script
Application and bandwidth usage reporting
Auto installation
Debug and troubleshooting tools
ZTP with Contrail Service Orchestration
Advanced Routing Services Packet mode
MPLS (RSVP, LDP)
Circuit cross-connect (CCC), translational cross-connect (TCC)
L2/L3 MPLS VPN, pseudowires
Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN)
MPLS traffic engineering and MPLS fast reroute
Application Security Services Application visibility and control
Application-based firewall
Application QoS
Enhanced SD-WAN Services Application-based advanced policy-based routing (APBR)
Application quality of experience (AppQoE)
Application-based link monitoring and switchover with AppQoE
