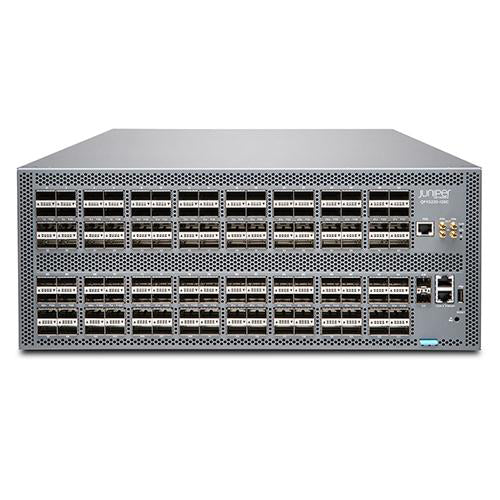

JUNIPER QFX5220-128C-D-AFO SWITCH

Accessories

Accessories
JPSU-1600W-DC-AFO	QFX5220-128C-AFO 2 U DC power supply unit
QFX5220-128C-FANAO	Airflow out (AFO) front-to-back airflow fans for QFX5220-128C
RKMT-4PST-4U	4-Post Rack Mount Kit for QFX5220-128C
QFX5220-14I-EMI-DR	QFX5220-128C 14 in. EMI door
Software Licenses SKUs
S-QFX5K-C3-A1-X (X=3,5)	Base L3 Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C
S-QFX5K-C3-A2-X (X=3,5)	Advanced Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C
S-QFX5K-C3-P1-X (X=3,5)	Premium Software Subscription (X Years; X=3,5) License for QFX5220-32CD/QFX5220-128C
Optics and Transceivers
QDD-400G-DAC-1M	QSFP56-DD 400GbE DAC 1 M
QDD-400G-DAC-2P5M	QSFP56-DD 400GbE DAC 2.5 M
QDD-4x100G-FR	QSFP-DD 4x100GBASE-FR breakout 1310 nm PAM4 transceiver module, 2 km reach
QDD-400G-DR4	QSFP-DD 400GBASE-DR4 / 4x100GBASE-DR 1310 nm PAM4 transceiver module, 500 m reach
QDD-400G-FR4	QSFP-DD 400GBASE-FR4 1310 nm PAM4 transceiver module, 2 km reach
QDD-400G-AOC-XM	400GbE QSFP56-DD active optical cable of XM (X=1,3,5,7,10,15,20,30)
JNP-100G-4x25G-1M	100GbE QSFP28 to 4x25GbE SFP28 passive direct attach copper breakout cable, length: 1 m
JNP-100G-4x25G-3M	100GbE QSFP28 to 4x25G SFP28 passive direct attach copper breakout cable, length: 3 m
JNP-QSFP-100G-BXSR*	100GbE SR-bidirectional QSFP transceiver, LC, 100 M, OM4 multimode fiber-optic (MMF)

Specifications

Specifications	QFX5220-128C-D-AFO
CPU	Intel Xeon D-1518
System throughput	Up to 25.6 Tbps (bidirectional)
Forwarding capacity	8 billion packets per second
Total packet buffer	64 MB
MAC addresses per system	8192
VLAN Ids	3952
Number of link aggregation groups (LAGs)	128
Number of ports per LAG	64
Firewall filters	Ingress: 768 Routed ACL (RACL), VLAN ACL (VACL), and Port ACL (PACL) rules Egress: 2558 RACL; 512 VACL and PACL rules
IPv4 unicast routes	380,000 prefixes; 380,000 host routes
IPv6 unicast routes	130,000 prefixes; 130,000 host routes
Address Resolution Protocol (ARP) entries	32,000
Generic routing encapsulation (GRE) tunnels	2000
MPLS labels	16,000
Jumbo frame	9,216 bytes
Traffic mirroring	- Mirroring destination ports per switch: 4 - Maximum number of mirroring sessions: 4 - Mirroring destination VLANs per switch: 4
Software Specifications
Layer 2 Features (*Reserved for future release)	STPIEEE 802.1D (802.1D-2004)* Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)* Bridge protocol data unit (BPDU) protect* Loop protect* Root protect* RSTP and VSTP running concurrently* VLANIEEE 802.1Q VLAN trunking Routed VLAN interface (RVI) Port-based VLAN MAC address filtering* Static MAC address assignment for interface MAC learning disable Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Layer 3 Features (*Reserved for future release)	Static routing OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP)* IPv6 Virtual routers Loop-free alternate (LFA) BGP (Advanced Services or Premium Services license) IS-IS (Advanced Services or Premium Services license) Dynamic Host Configuration Protocol (DHCP) v4/v6 relay VR-aware DHCP IPv4/IPv6 over GRE tunnels (interface-based with decap/encap only)
Multicast Features (*Reserved for future release)	Internet Group Management Protocol (IGMP) v1/v2 Multicast Listener Discovery (MLD) v1/v2 IGMP proxy, querier IGMP v1/v2/v3 snooping Intersubnet multicast using IRB interface MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM, PIM-Bidir* Multicast Source Discovery Protocol (MSDP)*
Link Aggregation	LAG load sharing algorithmbridged or routed (unicast or multicast) traffic: -IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port -L2 and non-IP: MAC SA, MAC DA, Ether type, VLAN ID, source port
Quality of Service (QoS)	L2 and L3 QoS: Classification, rewrite, queuing Rate limiting: -Ingress policing: 1 rate 2 color, 2 rate 3 color -Egress policing: Policer, policer mark down action -Egress shaping: Per queue, per port 10 hardware queues per port (8 unicast and 2 multicast) Strict priority queuing (LLQ), shaped-deficit weighted round-robin (SDWRR), weighted random early detection (WRED) 802.1p remarking Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN Congestion avoidance capabilities: WRED, ECN Trust IEEE 802.1p (ingress) Remarking of bridged packets Configurable shared buffer and buffer monitoring
Security and Filters (*Reserved for future release)	Secure interface login and password RADIUS TACACS+ Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters, loopback filters for control plane protection Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark SSH v1, v2 Static ARP support Storm control, port error disable, and autorecovery* Control plane denial-of-service (DoS) protection
Data Center Bridging (DCB) (*Reserved for future release)	Priority-based flow control (PFC)IEEE 802.1Qbb Data Center Bridging Exchange Protocol (DCBX)*
High Availability (*Reserved for future release)	Sub-second Bidirectional Forwarding Detection (BFD) Uplink failure detection (UFD)*
MPLS (Advanced Services License) (*Reserved for future release)	Static label-switched paths (LSPs) RSVP-based signaling of LSPs LDP-based signaling of LSPs LDP tunneling (LDP over RSVP) MPLS class of service (CoS)* MPLS access control list (ACL)/policers* MPLS LSR support IPv4 L3 VPN (RFC 2547, 4364) MPLS fast reroute (FRR)
Visibility and Analytics	Switched Port Analyzer (SPAN) Remote SPAN (RSPAN) Encapsulated Remote SPAN (ERSPAN) sFlow v5 Junos Telemetry Interface
Device Management and Operations (*Reserved for future release)	Contrail Networking* Role-based CLI management and access CLI via console, telnet, or SSH Extended ping and traceroute Junos OS Evolved configuration rescue and rollback Image rollback SNMP v1/v2/v3 Junos OS Evolved XML management protocol High frequency statistics collection Automation and orchestration Zero-touch provisioning (ZTP) Python Junos OS Evolved event, commit, and OP scripts
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 6000 feet (1828.8 meters)
Relative humidity operating	5% to 90% (noncondensing)
Relative humidity non-operating	0% to 95% (noncondensing)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
IEEE Standards	IEEE 802.1D IEEE 802.1w IEEE 802.1 IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.3ad IEEE 802.1AB IEEE 802.3x IEEE 802.1Qbb IEEE 802.1Qaz
T11 Standards	INCITS T11 FC-BB-5
Supported RFCs	RFC 768 UDP RFC 783 Trivial File Transfer Protocol (TFTP) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 Telnet client and server RFC 894 IP over Ethernet RFC 903 RARP RFC 906 TFTP Bootstrap RFC 951 1542 BootP RFC 1058 Routing Information Protocol RFC 1112 IGMP v1 RFC 1122 Host requirements RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 1256 IPv4 ICMP Router Discovery (IRDP) RFC 1492 TACACS+ RFC 1519 Classless Interdomain Routing (CIDR) RFC 1587 OSPF not-so-stubby area (NSSA) Option RFC 1591 Domain Name System (DNS) RFC 1745 BGP4/IDRP for IPOSPF Interaction RFC 1772 Application of the Border Gateway Protocol in the Internet RFC 1812 Requirements for IP Version 4 routers RFC 1997 BGP Communities Attribute RFC 2030 SNTP, Simple Network Time Protocol RFC 2068 HTTP server RFC 2131 BOOTP/DHCP relay agent and Dynamic Host RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2154 OSPF w/Digital Signatures (password, MD-5) RFC 2236 IGMP v2 RFC 2267 Network ingress filtering RFC 2328 OSPF v2 (edge mode) RFC 2338 VRRP RFC 2362 PIM-SM (edge mode) RFC 2370 OSPF Opaque link-state advertisement (LSA) Option RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option RFC 2439 BGP Route Flap Damping RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers RFC 2597 Assured Forwarding PHB (per-hop behavior) Group RFC 2598 An Expedited Forwarding PHB RFC 2697 A Single Rate Three Color Marker RFC 2698 A Two Rate Three Color Marker RFC 2796 BGP Route ReflectionAn Alternative to Full Mesh IBGP RFC 2918 Route Refresh Capability for BGP-4 RFC 3065 Autonomous System Confederations for BGP RFC 3376 IGMP v3 (source-specific multicast include mode only) RFC 3392 Capabilities Advertisement with BGP-4 RFC 3446, Anycast RP RFC 3569 Source-specific multicast (SSM) RFC 3618 MSDP RFC 3623 Graceful OSPF Restart RFC 4271 Border Gateway Protocol 4 (BGP-4) RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4486 Subcodes for BGP Cease Notification Message RFC 4724 Graceful Restart Mechanism for BGP RFC 4812 OSPF Restart Signaling RFC 4893 BGP Support for Four-octet AS Number Space RFC 5176 Dynamic Authorization Extensions to RADIUS RFC 5396 Textual Representation of Autonomous System (AS) Numbers RFC 5668 4-Octet AS Specific BGP Extended Community RFC 5880 Bidirectional Forwarding Detection (BFD) Configuration Protocol (DHCP) server
Supported MIBs	RFC 155 SMI RFC 1157 SNMPv1 RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs RFC 1850 OSPFv2 MIB RFC 1901 Introduction to Community-based SNMPv2 RFC 2011 SNMPv2 for Internet protocol using SMIv2 RFC 2012 SNMPv2 for transmission control protocol using SMIv2 RFC 2013 SNMPv2 for user datagram protocol using SMIv2 RFC 2233, The Interfaces Group MIB using SMIv2 RFC 2287 System Application Packages MIB RFC 2570 Introduction to Version 3 of the Internet standard Network Management Framework RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access) RFC 2572 Message Processing and Dispatching for the SNMP (read-only access) RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3 RFC 2578 SNMP Structure of Management Information MIB RFC 2579 SNMP Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2665 Ethernet-like interface MIB RFC 2787 VRRP MIB RFC 2790 Host Resources MIB RFC 2819 RMON MIB RFC 2863 Interface Group MIB RFC 2932 IPv4 Multicast MIB RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework RFC 3411 An architecture for describing SNMP Management Frameworks RFC 3412 Message Processing and Dispatching for the SNMP RFC 3413 Simple Network Management Protocol RFC 3414 User-based Security Model (USM) for SNMPv3 RFC 3415 View-based Access Control Model (VACM) for the SNMP RFC 3416 Version 2 of the Protocol Operations for the SNMP RFC 3417 Transport Mappings for the SNMP RFC 3418 Management Information Base (MIB) for the SNMP RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet Standard Network Management Framework RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model RFC 4188 Definitions of Managed Objects for Bridges RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol RFC 4363b Q-Bridge VLAN MIB
Safety	CAN/CSA-C22.2 No. 60950-1 Information Technology EquipmentSafety UL 60950-1 Information Technology EquipmentSafety EN 60950-1 Information Technology EquipmentSafety IEC 60950-1 Information Technology EquipmentSafety (All country deviations) EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification
Security	FIPS/CC* TAA*
EMC	47 CFR Part 15, (FCC) Class A ICES-003 Class A EN 55022/EN 55032, Class A CISPR 22/CISPR 32, Class A EN 55024 CISPR 24 EN 300 386 VCCI Class A AS/NZS CISPR 32, Class A KN32/KN35 BSMI CNS 13438, Class A EN 61000-3-2 EN 61000-3-3 ETSI ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment

Properties

Properties	Juniper QFX5220-128C-D-AFO
Description	QFX5220 (hardware with base software), 128 QSFP+/QSFP28 ports, redundant fans, 4 DC power supplies, front-to-back airflow
Product Family	QFX5220 Series
Product Type	Ethernet Switch
Dimensions (HxWxD) Inches	17.26 x 6.88 x 29 in. (43.8 x 17.47 x 73.66 cm)
Rack units	4 U
Weight	98 lb (44.44 kg) with 4 power supplies and 6 fan trays installed
Operating system	Junos OS Evolved
Recommended Software Version	Junos OS Evolved 19.3R1 and Later
Deployment Options for QFX5210-64C
Port Combinations	Deployment
64x100GbE	Spine/leaf
96x25GbE + 8x100GbE	25GbE access
Interface Options
Port density	128 ports of QSFP28 100GbE
SFP+/SFP28	2 SFP+ transceiver ports for in-band network management
Cooling	Ports-to-FRUs (AFO) cooling Redundant (5x2+1) + 1 hot-pluggable fan modules with variable speed to minimize power draw
Power	Redundant (1+1) hot-pluggable 1600 W DC power supplies -48 to -60 V DC power
Maximum Thermal Output
Maximum power draw	115-127 V: 2023 W; 220-240 V: 1990 W
Typical power draw	115-127 V: 1433 W; 220-240 V: 1394 W
