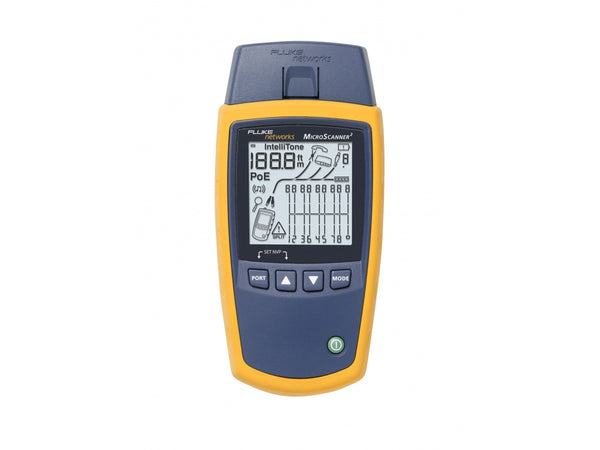

FLUKE-MS2-100 MicroScanner2 MS2-100 Cable Verifier

Find Cable Faults Faster with MicroScanner2 Accuracy

Fluke Networks’ MicroScanner2 MS2-100 speeds copper troubleshooting by showing wiremap, pair lengths, distance to fault, service presence, and far-end IDs on one screen. Built-in IntelliTone provides both digital and analog toning to locate cables precisely, while the unit verifies Ethernet port speeds up to 1 Gbps to confirm service availability. Rugged design and a soft case keep the tester ready for the toughest jobs.

Key Benefits & Features

• One-screen results: View wiremap, pair length, distance to fault, cable ID, and services simultaneously to cut test time.
• IntelliTone toning: Digital and analog tone modes help pinpoint active data cables and trace voice or coax runs in noisy environments.
• Gigabit service identification: Detects advertised 10/100/1000 Mbps Ethernet port speeds to validate links before handoff.
• Coax and voice support: Test RJ45, RJ11, and coax with the MicroScanner2 F-connector adapter for broader site coverage.
• Rugged, field-ready: Backlit LCD, rubber holster, and soft carry case improve visibility and durability on site.

Ideal Use Cases

• Network installers verifying twisted-pair terminations and service availability
• Desk moves, adds, and changes across campus or branch networks
• Field technicians tracing and labeling unknown copper drops
• Facilities teams maintaining voice, data, and coax distribution

Technical Specifications

• Cable types: Twisted pair UTP/FTP/STP; coax with adapter
• Length test: Range 460 m (1500 ft), resolution 0.3 m (1 ft), accuracy ±(1% + 0.6 m)
• Wiremap: Detects opens, shorts, splits, and up to seven far-end IDs
• Ethernet port detect: Advertised speeds of 10/100/1000 Mbps
• Tone generator: IntelliTone digital and compatible analog tones
• Display: Monochrome LCD with backlight
• Power: 2 × AA alkaline, about 20 hours typical use
• Dimensions/Weight: ~3 in × 6.4 in × 1.4 in; ~13 oz with batteries

Ready to troubleshoot like a pro

Equip your team with MicroScanner2 MS2-100 for faster, clearer copper diagnostics. Order today.

Model	Fluke Networks MicroScanner² / MicroScanner PoE
Product Type	Cable Verifier (Copper; PoE diagnostics on MicroScanner PoE)
Display	Monochrome LCD with backlight
Test Connectors	8-pin modular jack (RJ45) and 4-pin modular (RJ11); MicroScanner² also supports F-connector for coax
Power	2× AA (NEDA 15A, IEC LR6) alkaline; also supports 2× AA photo lithium, NiMH, NiCad
Battery Life	~20 hours (typical use)
Dimensions (W × H × D)	3 × 6.4 × 1.4 in (7.6 × 16.3 × 3.6 cm)
Weight	MicroScanner²: 13.5 oz (385 g); MicroScanner PoE: 10.6 oz (247 g)
Operating Temperature	32 °F to 113 °F (0 °C to 45 °C)
Storage Temperature	−4 °F to 140 °F (−20 °C to 60 °C)
Operating Relative Humidity	90% (50 °F to 95 °F / 10 °C to 35 °C); 75% (95 °F to 113 °F / 35 °C to 45 °C) non-condensing
Shock & Vibration	Random 2 g, 5 Hz–500 Hz (Class 2); 1 m drop test (with or without wiremap adapter)
Safety	IEC 61010-1, 3rd Edition
Altitude	Operation: 4,000 m; Storage: 12,000 m
EMC	IEC 61326-1

Cable Types Tested	Twisted pair: UTP, FTP, STP; Coax (MicroScanner² only): 75 Ω, 50 Ω, 93 Ω
Length Test	Range 460 m (1500 ft); Resolution 0.3 m (1 ft); Typical accuracy ±(1% + 0.6 m / 2 ft) whichever is greater; NVP uncertainty is an additional error; User-settable NVP (twisted pair & coax)
Wiremap	Detects opens, shorts, miswires, split pairs; shows proportional length to fault; identifies up to seven far-end adapter IDs
Ethernet Port Detection	MicroScanner²: Advertised speeds of 10/100/1000BASE-T; MicroScanner PoE: Advertised speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
PoE / Power over Ethernet	MicroScanner²: Detects 802.3af presence; MicroScanner PoE: Reports class & power for 802.3af/at/bt and shows voltage from passive PoE sources
Tone Generator	Supports digital IntelliTone™ and analog tones; SmartTone™ for positive cable identification; compatible with typical analog probes
Test Modes (displayed)	Length, distance-to-fault, wiremap, pair lengths, Ethernet port detection; MicroScanner PoE additionally indicates HIGH Ω on cable resistance & PoE details

Included	MicroScanner² or MicroScanner PoE main unit; Main wiremap adapter; AA alkaline batteries; Getting Started Guide; Soft carrying case (included in the box)
Optional – Remote Identifiers	MS2-IDK27 (Remote Identifier Kit #2–7); REMOTED-KIT (Remote ID kits for MicroScanner PoE)
Optional – Probes	MT-8200-63A IntelliTone™ Pro 200 Probe
Optional – Adapters	CIQ-RJA RJ45/11 Modular Adapter; CIQ-COAX Coax Adapter Kit (RCA, BNC)
Optional – Cases / Mounts	MICRO-DIT Soft Carry Duffel; MS2-MAG-KIT Magnetic Strap Attachment & Spare Holster
Optional – Kits	MS-POE-KIT; MS2-KIT; MS2-TTK; MS2-FTK (see kit contents in datasheet)
