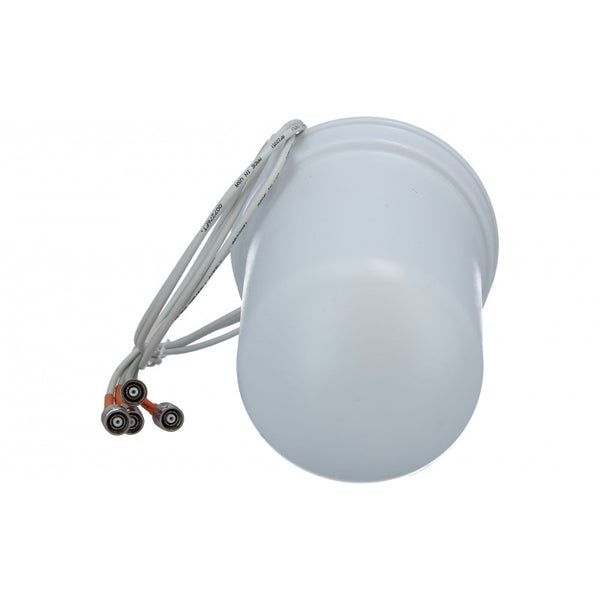

Cisco AIR-ANT-2544V4M-R Dual-Band Wall-Mount MIMO Antenna

The Cisco AIR-ANT2544V4M-R is a 4-element MIMO omnidirectional antenna engineered for high-performance wireless coverage across both 2.4 GHz and 5 GHz frequency bands. Designed to support dual-band access points such as Cisco 1600, 2600, and 3600 series, it delivers reliable signal propagation in demanding environments.

This antenna features four plenum-rated 36-inch cables with RP-TNC connectors and supports flexible mounting options including wall, ceiling, or mast configurations. With 4 dBi peak gain across both bands and a durable weather-resistant build, it’s well suited for both indoor and outdoor applications.

Key Features:

• Dual-Band Operation: Operates across 2400–2484 MHz and 5150–5850 MHz frequency ranges.
• Omnidirectional Coverage: 360° azimuth plane beamwidth with optimized elevation angles for even signal distribution.
• 4 dBi Gain: Peak gain of 4 dBi on both 2.4 GHz and 5 GHz bands.
• High Compatibility: Ideal for Cisco dual-band access points with RP-TNC connectors.
• Versatile Mounting: Supports wall, ceiling, and mast installations; includes mounting hardware.
• Durable Design: Indoor/outdoor ready with temperature tolerance from -30°C to 70°C.
• Flexible Positioning: Adjustable azimuth (±90°) and elevation (+15° to -35°) tilt for optimal alignment.

Technical Specifications:

• Antenna Type: 4-element MIMO omnidirectional
• Polarization: Linear, vertical
• Frequency Range: 2400–2484 MHz / 5150–5850 MHz
• Gain: 4 dBi (2.4 GHz and 5 GHz)
• VSWR: ≤ 2:1
• Impedance: 50 Ohms
• Elevation Beamwidth: 60° (2.4 GHz) / 33° (5 GHz)
• Azimuth Beamwidth: Omnidirectional
• Dimensions: 8.6 in (H) × 6.3 in (Dia) / 21.8 cm × 16 cm
• Weight: 1.48 lb (671.5 g)
• Cable: 36-inch plenum-rated with RP-TNC connectors
• Environmental Rating: Indoor/Outdoor
• Operating Temperature: -22°F to 158°F (-30°C to 70°C)
