ALLEN-BRADLEY 5069L306ER COMPACTLOGIX 5380 CONTROLLER
| Part No: | 5069-L306ER-A |
| Detail: | CompactLogix 5380 Controller, |
| Price: | $945.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

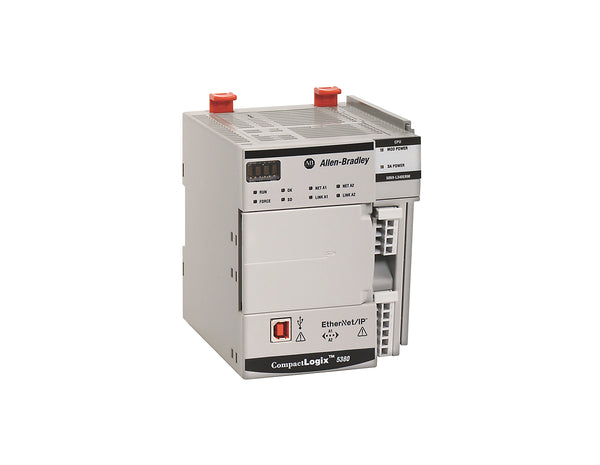

Allen-Bradley 5069-L306ER/A CompactLogix 5380 Controller
The Allen-Bradley 5069-L306ER/A is a 5380 CompactLogix controller. This Programmable Automation Controller (PAC) is equipped with compact and expandable hardware, making it suitable for a diverse range of industrial applications across various sectors. The 5069-L306ER is notable for its embedded 0.6 MB user memory, which does not rely on a battery for operation due to its energy storage solution. This feature allows the user's memory to retain its contents without the need for a battery. Furthermore, the 5069-L306ER comes with a 1784-SD2 Secure Digital (SD) Card boasting a memory size of 2GB.
Quick Specs:
- 6 MB memory
- EtherNet/IP, EtherNET/OCPP
- Max EtherNet/IP Nodes:16
- Support up to 31 local Compact 5000 I/O modules
Please see the related tabs for the 5069-L306ER/A datasheet and compatible accessories.
Specifications
| Specifications | 5069-L306ER |
| User memory | 0.6 MB |
| Optional nonvolatile memory | • 1784-SD1 (1 GB) • 1784-SD2 (2 GB), ships with controller • 1784-SDHC8 (8 GB) • 1784-SDHC32 (32 GB) • 9509-CMSDCD4 (4 GB) CodeMeter CmCard SD |
| Local I/O modules, max | 8 |
| Number of power cycles | 80000 |
| I/O Capacity (Class 0/1) | • 128,000 without CIP Security • 40,000 with integrity • 20,000 with integrity and confidentiality |
| Message Rate Capacity HMI/MSG (Class 3) | • 2000 without CIP Security • 1500 with integrity • 900 with integrity and confidentiality |
| EtherNet/IP modes supported | Dual-IP mode (Available with the Studio 5000 Logix Designer® application, version 29.00.00 or later) Linear/DLR mode |
| EtherNet/IP network topologies supported | DLR Star Linear |
| EtherNet/IP nodes supported, max | 16 |
| Socket interfaces supported, max | 32 |
| Integrated motion | - |
| Number of axes supported | 256 |
| Programming languages | Ladder Diagram (LD) Structured Text (ST) Function Block Diagram (FBD) Sequential Function Chart (SFC) |
| Local Compact 5000 Standard I/O Modules Supported, Max | 8 |
| Any Combination of Standard and Safety I/O Modules | - |
| Ethernet Nodes Supported | 16 |
| Emissions | IEC 61000-6-4 |
Properties
| Properties | 5069-L306ER |
| Description | The Allen-Bradley 5069L306ER CompactLogix 5380 Controller is a part of the Logix 5000® family that offers EtherNet/IP™ connectivity for diverse applications. It has 0.6 MB memory and can support up to 16 Ethernet/IP nodes, making it ideal for small to large automation needs. |
| Product Family | CompactLogix 5380 Controller |
| Product Type | Controller |
| Controller tasks | Continuous: 32 tasks Periodic : 1000 programs/task Event: All event triggers |
| Built-in communication ports | 1 x USB port 2 x Ethernet ports |
| USB port communication | USB 2.0, Type B, Full speed (12 Mbps) |
| Ethernet performance | 10 Mbps/100 Mbps/1 Gbps Full-duplex only |
| MOD Power voltage range | 18 - 32V DC |
| MOD Power current, max | 450 mA |
| SA Power voltage ranges | 0 - 32V DC |
| SA Power current, max | 10 mA (DC power) 25 mA (AC power) |
| Dimensions | 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.) |
| Mounting Options | DIN rail mount (horizontal mount only) |
| Operating Temperature | 0 °C - 60 °C (32 °F - 140 °F) |
