DELL 210-AQIF

Accessories

Specifications

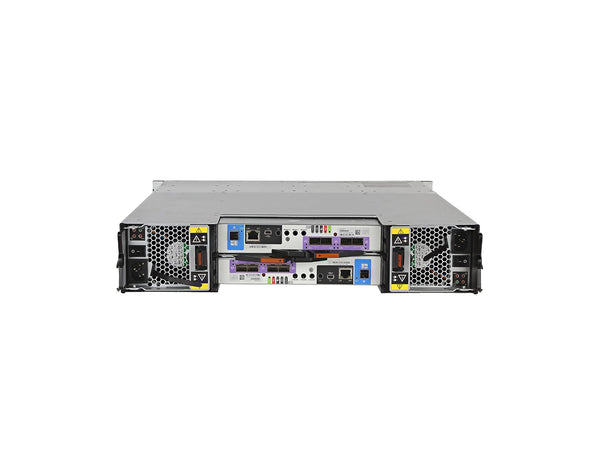

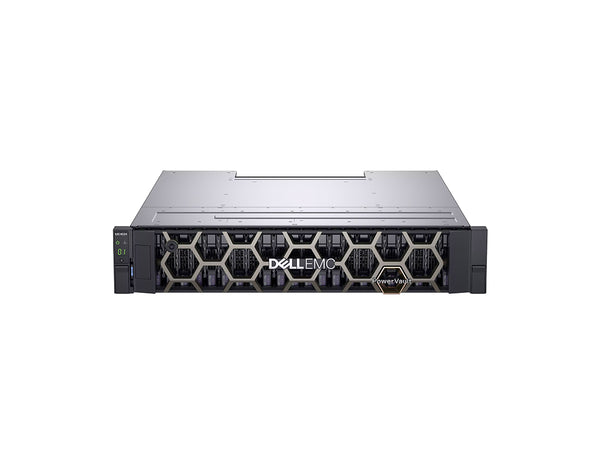

Specifications	Dell 210-AQIF (PowerVault ME4024 Storage Array)
Chassis Overview
Chassis format	All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
Rack size	2U
Controllers	2 hot-swappable per chassis (dual active) Single/dual controller support for 2U
Processors	Intel 2-core, 2.2GHz
System memory	8GB per controller
Expansion Capacity
Min/Max drive count	2/276
Max raw capacity	3PB (with ME484 expansion)
NAS Support	Supported with NX Series Windows NAS appliance
Storage media	SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system: • NLSAS (7.2K 3.5”): 4TB, 8TB, 10TB, 12TB, 12TB SED • NLSAS (7.2K 2.5”): 2TB, 2TB SED • SAS (10K 2.5”): 1.2TB, 1.8TB, 2.4TB, 2.4TB SED • SAS (15K 2.5”): 900GB, 900GB SED • SSD: 480GB, 960GB, 1.92TB, 1.92TB SED • SDD and HDD: FIPS-certified SEDs
Network and Expansion I/O
Host interface	FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI)
Max 16Gb FC ports	8 per array (support auto-negotiate to 8Gb)
Max 10Gb iSCSI ports	8 SFP+ or BaseT ports per array (BaseT only support auto-negotiate to 1Gb)
Max 12Gb SAS ports	8 12Gb SAS ports
Max multi-protocol ports	4 ports 16Gb FC SFP+ 4 ports 10Gb iSCSI SFP+
Max management ports	2 per array (1Gb BASE-T)
Disk expansion protocol	12Gb SAS
Disk interface expansion ports	2 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array
Functional
Array configurations	All-flash, hybrid or all HDD arrays
Storage format	Native SAN or DAS
Data Optimization
Auto-tiering	Up to 3 primary (media-based) tiers (2 level tiering supported)
RAID support	RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array
Adapt	Distributed erasure coding that reduces rebuild times when drive failures occur
Thin provisioning	Active by default on all volumes, operates at full performance across all features
Snapshots	1024 maximum snapshots per array
Data Mobility and Migration
Replication	Replicates with other ME4 Series Arrays Asynchronous block via FC or iSCSI Target/source relationships may be one-to-many or many-to-one
Volume copy	Copy complete standalone volumes
Data Protection, Disaster Recovery, Security
Business continuity	VMware Site Recovery Manager
Data-at-rest encryption	Self-encrypting drives (SEDs) in SSD or HDD formats Full Disk Encryption (FCE) based on AES-256 Drives certified to FIPS 140-2 Level 2
Key manager	Internal controller key management
Management
Management	ME Storage Manager (MESM) HTML5 GUI, CLI
VMware vCenter	Support VMware vCenter plugin to manage the ME4 arrays through vCenter.
Scripting	CLI Microsoft PowerShell API
Host OS support	Windows 2016 and 2012 R2 RHEL 6.9 and 7.4 SLES 12.3 VMware 6.7, 6.5 and 6.0
Virtualization integration	VMware vSphere (ESXi) vCenter; SRM Microsoft Hyper-V
Physical
Rack size	2u
Height	8.79 cm (3.46 inches)
Width	48.30 cm (19.01 inches)
Depth	60.29 cm (23.74 inches)
Weight at max configuration	30.00 kg (66.00 lbs)
Weight empty	4.80 kg (10.56 lbs) without drives
Power
Power/wattage	580W
Heat dissipation	1980 BTU
Voltage	100-240 VAC
Frequency	50/60 Hz
Amperage	7.6-3.0A (x2)
Environmental Operating Conditions
Operating temperature	41 - 95°F (5 - 35°C)
Non-operating temperature	-40 - 149°F (-40 - 65°C)
Operating humidity ranges (non-condensing)	10% to 80% with 29°C (84.2°F) maximum dew point
Non-operating humidity (noncondensing)	5% to 95% with 33°C (91°F) maximum dew point

Properties

Properties	Dell 210-AQIF (PowerVault ME4024 Storage Array)
Description	ME4 Series supports backward compatibility with auto-negotiation for iSCSI and FC connections. PowerVault ME4 arrays scale up to 336 drives using ME412, ME424 and ME484 expansion enclosures.
Product Family	Dell PowerVault ME4 Series
Product Type	Storage Array
