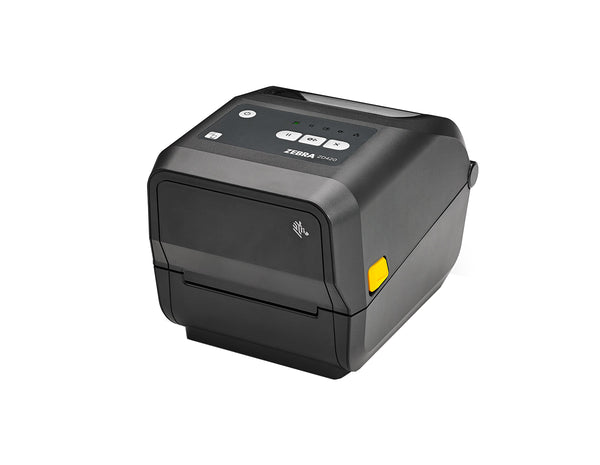

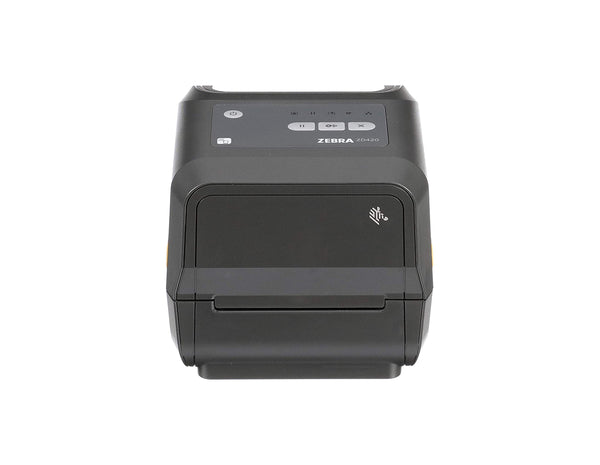

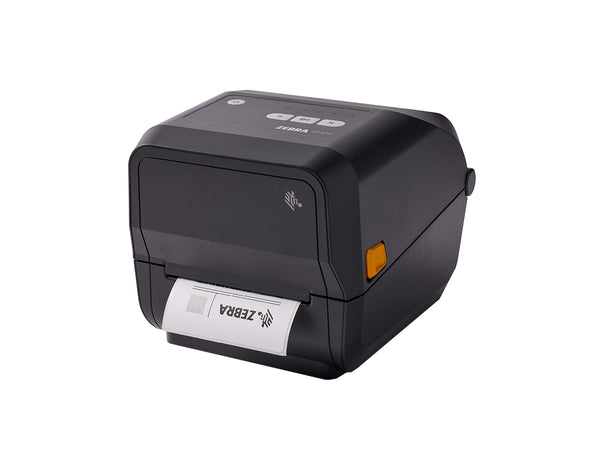

ZEBRA ZD42042-T01000EZ PRINTER (ZD420T)

Accessories

Options and Accessories
Media Handling	Dispenser/Peeler: label peel and present with label present sensor (field installable) Cutter (field installable)
Communications	Field installable RS -232 auto-sensing Serial, DB-9; Ethernet 10/100 internal; factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1
Healthcare Model	Healthcare model with IE C 60601-1 compliant power supply and healthcare wipeable plastics
Carrying Case	Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application
Keyboard Display Unit	Zebra Keyboard Display Unit (ZKDU) unit for standalone printing solutions

Specifications

Specifications	ZD420T
Memory	512 MB Flash; 256 MB SDRAM
Maximum Print Width	4.09 in./104 mm for 203 dpi and 300 dpi
Maximum Print Speed	6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Label Length	Maximum: 39.0 in./991 mm
Media Width	4.65 in./118 mm
Media Roll Size	5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Media Thickness	0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max.
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios	2:1 and 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128, IS BT-128, UPC-A, UPC-E, EAN -8, EAN -13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI , Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Firmware	ZPL II; EPL 2; XML; ZBI
Operating Temperature	40º to 105ºF (4.4º to 41ºC)
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	10% to 90% non-condensing R.H.
Storage Humidity	5% to 95% non-condensing R.H.
Regulatory	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Properties

Properties	Zebra ZD420T ZD42042-T01000EZ
Description	Label printer, Thermal transfer, Roll (4.65 in), 203 dpi, Up to 359.1 inch/min, USB, 2.0, USB host
Product Family	ZD Series
Product Type	Label Printer
Standard Features	Thermal Transfer print method ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host Bluetooth low energy OpenACCESS for easy media loading Dual-wall frame construction ENER GY STAR qualified Real Time Clock ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner Two-year standard warranty
Communications	USB 2.0, USB Host
Printing	Thermal Transfer print method
Resolution	203 dpi/8 dots per mm Optional 300 dpi/12 dots per mm Resolution can be factory installed or changed on site via accessory kits. Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi.
Dimensions (W x H x D)	8.0 x 7.0 x 10.0 in. (202 mm x 177 mm x 254 mm)
Weight	5.0 lbs./2.3 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
