Model: | ZD42042-D01000EZ |
Detail: |
|
List Price: | |
Price: | $389.00 |
You Save: | $228.00 (37% OFF) |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

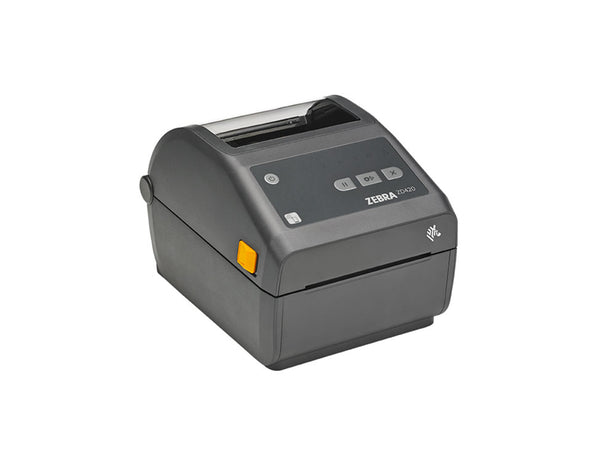

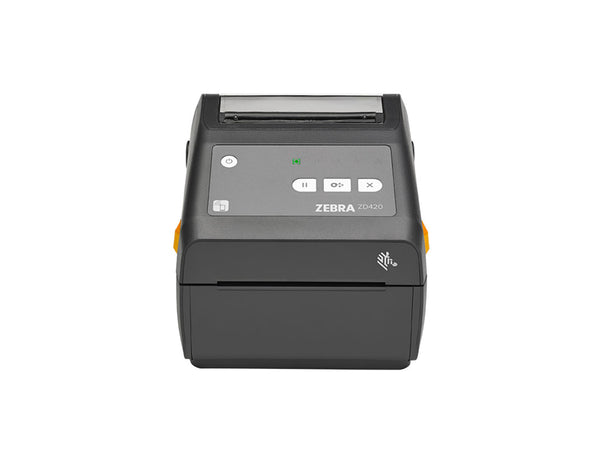

The ZD42042-D01000EZ is a direct thermal printer of the ZD420 Desktop Printer Series. You can create high-quality labels, receipts, tags, and wristbands with it faster. It has Bluetooth and NFC communication options and USB connectivity. You can also add new features when needed, such as Ethernet support, making the ZD42042-D01000EZ future-proof.
You can see the ZD42042-D01000EZ datasheet and detailed specifications from the related tabs.
Options and Accessories | |
Media Handling | Dispenser/Peeler: label peel and present with label present sensor (field installable) Cutter (field installable) |
Communications | Field installable RS -232 auto-sensing Serial, DB-9; Ethernet 10/100 internal; factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1 |
Healthcare Model | Healthcare model with IE C 60601-1 compliant power supply and healthcare wipeable plastics |
Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) unit for standalone printing solutions |
Specifications | ZD420D |
Memory | 512 MB Flash; 256 MB SDRAM |
Maximum Print Width | 4.09 in./104 mm for 203 dpi and 300 dpi |
Maximum Print Speed | 6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi) |
Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
Label Length | Maximum: 39.0 in./991 mm |
Media Width | 4.65 in./118 mm |
Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. |
Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
Barcode Symbologies | |
Barcode Ratios | 2:1 and 3:1 |
Linear Barcodes | Code 11, Code 39, Code 93, Code 128, IS BT-128, UPC-A, UPC-E, EAN -8, EAN -13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI , Codabar and Planet Code |
2-Dimensional | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
Firmware | ZPL II; EPL 2; XML; ZBI |
Operating Temperature | 40º to 105ºF (4.4º to 41ºC) |
Storage Temperature | -40º to 140ºF (-40º to 60ºC) |
Operating Humidity | 10% to 90% non-condensing R.H. |
Storage Humidity | 5% to 95% non-condensing R.H. |
Regulatory | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
Properties | Zebra ZD420D ZD42042-D01000EZ |
Description | Label printer, Direct Thermal, Roll (4.65 in), 203 dpi, Up to 359.1 inch/min, USB, 2.0, USB host |
Product Family | ZD Series |
Product Type | Label Printer |
Standard Features | Direct Thermal print method ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host Bluetooth low energy OpenACCESS for easy media loading Dual-wall frame construction ENER GY STAR qualified Real Time Clock ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner Two-year standard warranty |
Communications | USB 2.0, USB Host |
Printing | Direct Thermal print method |
Resolution | 203 dpi/8 dots per mm Optional 300 dpi/12 dots per mm Resolution can be factory installed or changed on site via accessory kits. Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi. |
Dimensions (W x H x D) | 8.0 x 7.0 x 10.0 in. (202 mm x 177 mm x 254 mm) |
Weight | 5.0 lbs./2.3 kg |
Power | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
