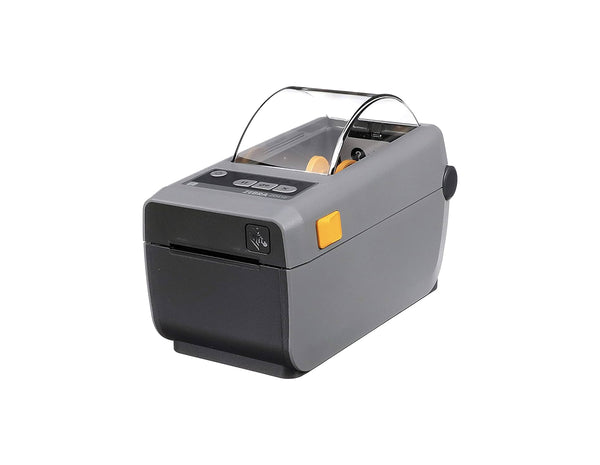

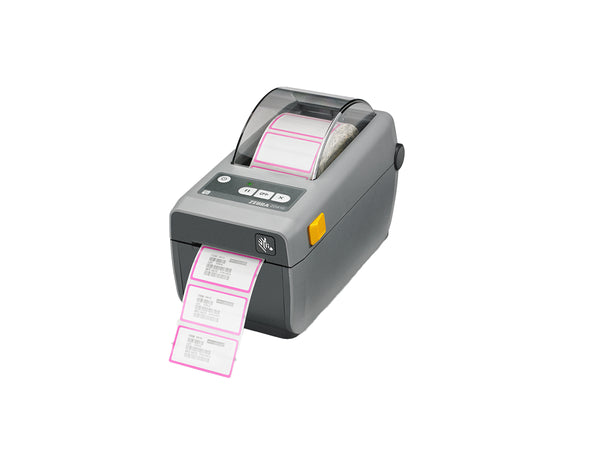

ZEBRA ZD41022-D01E00EZ PRINTER (ZD410D)

Accessories

Options and Accessories
Media Handling	Field installable dispenser label peel and present with label present sensor; field installable cutter
Communications	Field installable RS-232 auto-sensing Serial, DB-9; Factory installed or field installable Ethernet 10/100 internal; factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1; Bluetooth Low Energy included as standard on network connected models
Battery	Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Healthcare Model	Healthcare model with IEC 60601-1 compliant power supply and healthcare wipeable plastics
Real Time Clock	Real time clock included as standard on network connected models
Keyboard Display Unit	ZKDU keyboard display units for stand-alone printing solutions
Mounting Plate	Optional accessory to secure ZD Series printers to countertops or shelves

Specifications

Specifications	ZD410
Memory	512 MB Flash; 256 MB SDRAM
Maximum Print Width	2.2 in./56 mm for 203 dpi and 300 dpi
Maximum Print Length	39.0(991 mm)
Maximum Print Speed	6 in./152 mm per second (203 dpi) 4 in./102 mm per second (300 dpi)
Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Maximum Label Length	39.0 in./991 mm
Maximum Label and Media Width	2.36 in./60 mm
Media Roll Size	5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7mm) and 1.0 in. (25.4mm) standard, 1.5 in. (38.1mm), 2.0 in., (50.8mm) and 3.0 in. (76.2mm) using optional adapters
Media Thickness	0.003 in. (0.08 mm) min. - 0.0075 (.1905 mm)
Media Types	Roll-fed or fan-fold, die cut or continuous direct thermal labels with or without black mark, tag stock, continuous receipt paper, and wristbands
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios	2:1 and 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	Document Design Quickly design a customized print solution using your business data and Zebras intuitive, plug-and-print design tools Printer Integration Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems Printer Management Manage your print operations locally and globally with Zebras suite of device management tools Developer Tools Provides you with the tools you need to create your own apps, including documentation, source code, programming languages, templates and more Zebra Setup Utility Single printer configuration utility ZebraDesigner Windows Driver: Microsoft certified for Windows Vista®, Windows 7, Windows 8, Windows 8.1, Windows 10 (downloadable from www.zebra.com)
Firmware	EPL1/EPL2 Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers Web View Connect and control Zebra barcode printers via the printers Web interface using a common Web browser (ZPL mode)
Operating Temperature	40º to 105ºF (4.4º to 41ºC)
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	10% to 90% non-condensing R.H.
Storage Humidity	5% to 95% non-condensing R.H.
Regulatory	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Environment	RoHS Directive 2011/65/EU; Amendment 2015/863 REACH SVHC 1907/2006

Properties

Properties	Zebra ZD410 ZD41022-D01000EZ
Description	ZD410 Printer, Standard model, 203 dpi with Ethernet Connectivity, 2-inch printer
Product Family	ZD Series
Product Type	Label Printer
Standard Features	Direct Thermal print method ZPL and EPL programming languages 5 status icon, 3 button user interface USB 2.0, USB Host OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR qualified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner Two-year standard warranty
Communication and Interface Capabilities	Auto-sensing Serial RS232: Software selectable baud rate (default 9600) parity (default none) data length (default 8) stop bit (default 1) Flow control hardware and software Connector: DB-9 Type: 9 pin D Sub connector female (standard) Includes +5 VDC- 160 mA power output capability WIreless factory installed option Wi-FI 802.11ac Bluetooth 4.1 USB: Version 2.0 full speed, bi-directional Supported in Win98 and Win98SE, Win Me and Windows 2000 platforms Connector Type B Female Internal 10/100 Ethernet factory or field installable option
Printing	Direct thermal printing
Resolution	203 dpi/8 dots per mm Optional 300 dpi/12 dots per mm
Dimensions (W x H x D)	4.5 x 6.0 x 8.6 in. (115 mm x 151 mm x 220 mm)
Weight	2.2 lbs./1.0 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAh battery
