ZEBRA ZD41022-D01000EZ PRINTER (ZD410D)

Model: ZD41022-D01000EZ
Detail:
  • Label printer, Direct thermal, Roll (2.35 in), 203 dpi, Up to 359.1 inch/min, USB 2.0, USB host
List Price: US$489.36
Price:
$240.00
You Save: $249.36 (51% OFF)
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

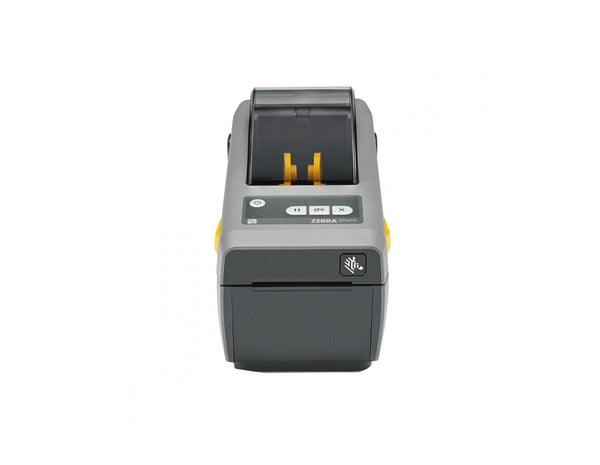

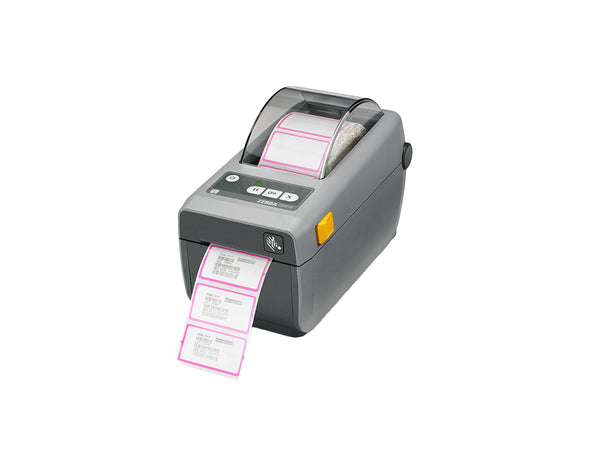

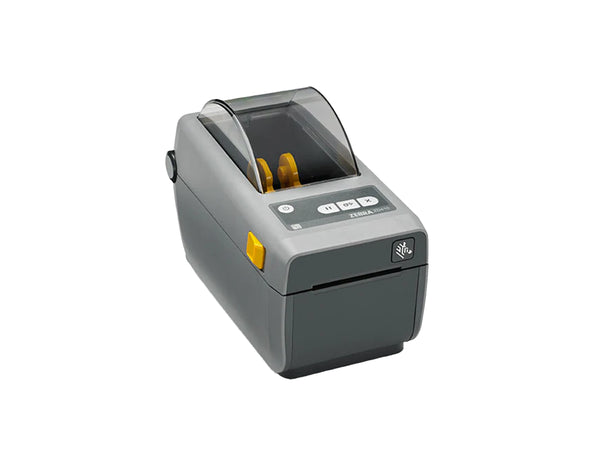

Zebra ZD41022-D01000EZ Printer

The ZD41022-D01000EZ is a direct thermal printer from the ZD410 desktop printer family. The Zebra ZD41022-D01000EZ is a small printer that can fit easily on a desktop or shelf, even in small workspaces. It comes in two print resolutions, 203 dpi or 300 dpi, and is best suited for printing labels with a short shelf life of less than a year. This ultra-compact “fits anywhere” printer is designed for the smallest workspaces.

Quick Specs:

  • 6 ips print speed
  • 203 dpi print resolution
  • Direct Thermal print method
  • ZPL and EPL programming language

Please see the related tabs for the ZD41022-D01000EZ datasheet and compatible accessories.

Accessories

Options and Accessories
Media Handling Field installable dispenser label peel and present with label present sensor; field installable cutter
Communications Field installable RS-232 auto-sensing Serial, DB-9; Factory installed or field installable Ethernet 10/100 internal; factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1; Bluetooth Low Energy included as standard on network connected models
Battery Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Healthcare Model Healthcare model with IEC 60601-1 compliant power supply and healthcare wipeable plastics
Real Time Clock Real time clock included as standard on network connected models
Keyboard Display Unit ZKDU keyboard display units for stand-alone printing solutions
Mounting Plate Optional accessory to secure ZD Series printers to countertops or shelves

Specifications

Specifications ZD410
Memory 512 MB Flash; 256 MB SDRAM
Maximum Print Width 2.2 in./56 mm for 203 dpi and 300 dpi
Maximum Print Length 39.0(991 mm)
Maximum Print Speed 6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor;
multi-position transmissive/ gap sensor
Maximum Label Length 39.0 in./991 mm
Maximum Label and Media Width 2.36 in./60 mm
Media Roll Size 5.00 in./127 mm outer diameter
Core inner diameter: 0.5 in. (12.7mm) and 1.0
in. (25.4mm) standard, 1.5 in. (38.1mm), 2.0 in.,
(50.8mm) and 3.0 in. (76.2mm) using optional
adapters
Media Thickness 0.003 in. (0.08 mm) min. - 0.0075 (.1905 mm)
Media Types Roll-fed or fan-fold, die cut or continuous direct
thermal labels with or without black mark, tag
stock, continuous receipt paper, and wristbands
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios 2:1 and 3:1
Linear Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128,
UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or
5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars,
MSI, Codabar and Planet Code
2-Dimensional Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software Document Design Quickly design a customized print solution using your business data and Zebras intuitive, plug-and-print design tools
Printer Integration Zebra offers apps and products
designed to help you integrate Zebra devices into your existing systems
Printer Management Manage your print operations locally and globally with Zebras suite of device management tools
Developer Tools Provides you with the tools you
need to create your own apps, including documentation, source code, programming languages, templates and more
Zebra Setup Utility Single printer configuration utility
ZebraDesigner Windows Driver: Microsoft certified for Windows Vista®, Windows 7, Windows 8, Windows 8.1, Windows 10 (downloadable from www.zebra.com)
Firmware EPL1/EPL2 Eltron Programming Language simplifies
label formatting and enables format compatibility with legacy applications
ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers
Web View Connect and control Zebra barcode
printers via the printers Web interface using a common Web browser (ZPL mode)
Operating Temperature 40º to 105ºF (4.4º to 41ºC)
Storage Temperature -40º to 140ºF (-40º to 60ºC)
Operating Humidity 10% to 90% non-condensing R.H.
Storage Humidity 5% to 95% non-condensing R.H.
Regulatory IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Environment RoHS Directive 2011/65/EU; Amendment 2015/863
REACH SVHC 1907/2006

Properties

Properties Zebra ZD410 ZD41022-D01000EZ
Description Label printer, Direct thermal, Roll (2.35 in), 203 dpi, Up to 359.1 inch/min, USB 2.0, USB host
Product Family ZD Series
Product Type Label Printer
Standard Features Direct Thermal print method
ZPL and EPL programming languages
5 status icon, 3 button user interface
USB 2.0, USB Host
OpenACCESS for easy media loading
Dual-wall frame construction
ENERGY STAR qualified
ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner
Two-year standard warranty
Communication and Interface Capabilities Auto-sensing Serial RS232:
Software selectable
baud rate (default 9600)
parity (default none)
data length (default 8)
stop bit (default 1)
Flow control hardware and software
Connector: DB-9 Type: 9 pin D Sub connector female (standard)
Includes +5 VDC- 160 mA power output capability
WIreless factory installed option
Wi-FI 802.11ac
Bluetooth 4.1
USB:
Version 2.0 full speed, bi-directional
Supported in Win98 and Win98SE, Win Me and Windows 2000 platforms
Connector Type B Female
Printing Direct thermal printing
Resolution 203 dpi/8 dots per mm
Dimensions (W x H x D) 4.5 x 6.0 x 8.6 in. (115 mm x 151 mm x 220 mm)
Weight 2.2 lbs./1.0 kg
Power Auto-detectable (PFC Compliant) 100-240VAC,
50-60Hz; ENERGY STAR qualified; optional 2750
mAh battery
