Model: | ZD23042-D01C00EZ |
Detail: |
|
Price: | $299.00 |
Condition: | Brand New Sealed |
Availability: | Out of Stock |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

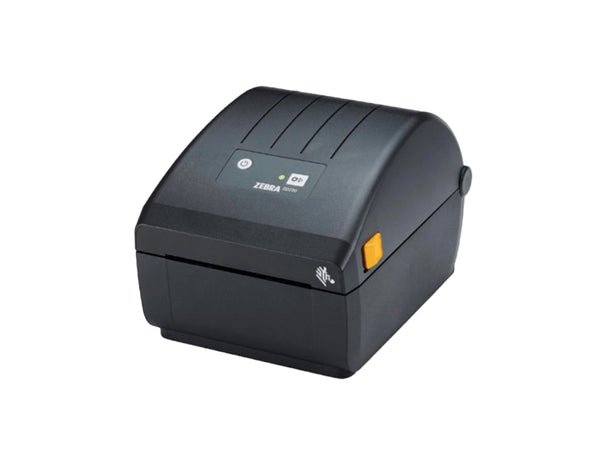

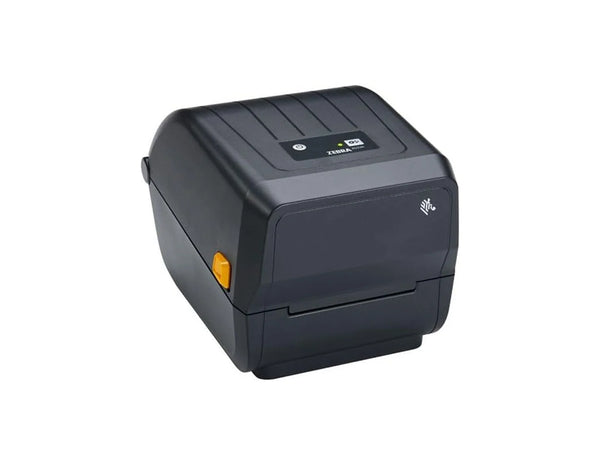

The ZD23042-D01C00EZ represents a direct thermal printer from the ZD230 desktop printer series. The Zebra GK420d direct thermal printer provides excellent value as a fundamental desktop printer, with a rapid 5 inches per second print speed suitable for low to medium-volume printing needs. Its compact and stylish design makes it the smallest 4-inch desktop printer available, catering to a range of applications and industries.
Please see the related tabs for the ZD23042-D01C00EZ datasheet and compatible accessories.
Options and Accessories | |
Media Handling | Factory installed peeler or cutter |
Communications | Factory-installed USB and Ethernet Factory-installed USB and Bluetooth 4.1 Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1 |
Specifications | ZD230 |
Memory | 128 MB Flash; 128 MB SDRAM |
Maximum Print Width | 4.09 in./104 mm for 203 dpi |
Maximum Print Length | 203 dpi: 157/3988 mm 300 dpi: 73/1854 mm |
Programmable Print Speed | 6 in./152 mm per second or 4 in./102 mm per second |
Media Sensors | Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor |
Media Width | 1.00 in. / 25.4 mm to 4.4 in. / 112 mm |
Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
Ribbon Outside Diameter | 2.6 in./ 66 mm (300 m); 1.34 in./ 34 mm (74 m) |
Maximum Ribbon Length | 984 ft. (300 m) |
Ribbon Ratio | 1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m) |
Ribbon Width | 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm |
Ribbon Core I.D. | 300 Meter ribbon 1 in./ 25.4 mm 74 Meter ribbon 0.5 in./ 12.7 mm |
Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing 50 MB user available non-volatile memory, 8 MB user available SDRAM |
Barcode Symbologies | |
Barcode Ratios | 2:1 and 3:1 |
Linear Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
2-Dimensional | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
Software | ZebraDesigner Essentials Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data Zebra Setup Utilities Enhances out-of-the-box experience by enabling quick and easy printer configuration Emulations On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands |
Firmware | ZPL II; EPL 2; XML |
Operating Temperature | 40° to 105° F/4.4° to 41° C |
Storage Temperature | -40º to 140ºF (-40º to 60ºC) |
Operating Humidity | 20% to 85% non-condensing |
Storage Humidity | 5% to 85% non-condensing |
Regulatory | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
Properties | Zebra ZD230 ZD23042-D01C00EZ |
Description | Direct Thermal Only Printer, Zebra ZD230 Desktop Printer, Standard EZPL, 203 DPI |
Product Family | ZD200 Series |
Product Type | Label Printer |
Standard Features | Direct Thermal print method ZPL and EPL programming languages Single LED status indicator Single button for feed/pause USB and Ethernet connectivity OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR qualified ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner Two-year standard warranty |
Connectivity | USB and Ethernet |
Printing | Direct thermal printing method |
Resolution | 203 dpi/8 dots per mm |
Dimensions (W x H x D) | 6.9 x 5.9 x 8.6 in. (176 mm x 151 mm x 220 mm) |
Weight | 2.5 lbs./1.1 kg |
Power | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
