ZEBRA GX43-102410-000 LABEL PRINTER (GX430T)

Model: GX43-102410-000
Detail:
  • Label printer, Desktop, Thermal Transfer, USB Ethernet USB-B, 203dpi, Max Media Width 4.0-4.9 inch,
Price:
$450.00
Condition: Brand New Sealed
Availability: Out of Stock
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

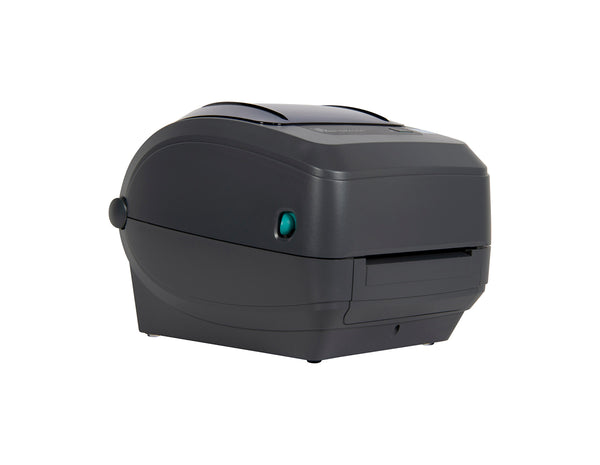

Zebra GX43-102410-000 Label Printer (GX430t)

The GX43-102410-000 is a thermal transfer printer from the GX420 desktop printers. The high resolution of this printer gives you extra clear labels and barcodes. It is ideal for transportation and logistics, healthcare, retail, and light manufacturing. It has an LCD display screen.

Note that you can upgrade to ZD621 Series models from the legacy GX420 Series.

Quick Specs:

  • 4 ips print speed
  • 300 dpi print resolution
  • Serial port
  • Ethernet connectivity

Please check the related tabs for the GX43-102410-000 datasheet and detailed specifications.

Accessories

Accessories
Dispenser Label peel and present with label present sensor
Adjustable media sensor
Cutter for various media types
64 MB Flash memory with real-time clock (for total of 68 MB)
Font Packs Asian and other international font kits
KDU Plus and ZKDU Keyboard display units for stand- alone printing solutions

Specifications

Specifications GX430T
Memory Standard: 4 MB Flash; 8 MB SDRAM
Optional: 64 MB (68 MB total) Flash with real- time clock
Maximum Print Width 4.09/104 mm
Maximum Print Length 39/990 mm
Maximum Print Speed 4"/102 mm per second
Media Sensors Standard: Fixed transmissive and reflective sensors
Optional: Multi-position transmissive and full- width reflective sensor
Label and Liner Length Maximum non-continuous: 39"/990 mm
Minimum using tear off mode: .25" (6.3 mm)
Minimum with label present sensor used: 0.5"/12.7 mm
Minimum with cutter: 1.0"/25.4 mm
Maximum Label and Liner Width 0.75/19 mm - 4.25/108 mm
Maximum Media Roll Size Maximum outside diameter: 5"/127 mm
Core inner diameter: 0.5"/12.7 mm, 1.0"/25 mm, 1.375"/35 mm, 1.5"/37.1 mm, 3"/76 mm
Media Thickness 0.003"/0.08 mm to 0.0075"/0.019 mm
Media Types Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands
Ribbon Characteristics
Outside diameter 1.36"/35 mm
Standard length 244'/74 m
Ratio 1:1 media to roll to ribbon
Width 1.33/33.8 mm to 4.3/109.2 mm
Core inner diameter 0.5/12.7 mm
Fonts and Character Sets 16 resident expandable ZPL II bitmap fonts
One resident scaleable ZPL font
Five resident expandable EPL2 fonts
Native open type font support
Unicode compliant for multi-language, ondemand thermal printing
Graphic Features Supports user-defined fonts and graphics- including custom logos
ZPL II drawing commands for boxes and lines Barcode Symbologies
Barcode Symbologies
Barcode Ratios 2:1 (non-rotated) and 3:1
Linear Barcodes Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL). ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS)
2-Dimensional Codablock (ZPL), Code 49 (ZPL). Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (for EPL and ZPL except where noted)
Software ZebraDesigner Pro
ZebraDesigner
ZebraNet Bridge Enterprise
ZebraNet Utilities v7.0
ZebraDesigner Driver
ZBI-Developer
Zebra Universal Driver
POS Driver
Firmware EPL2
EPL2T
XML
ZPL II®
Web View
Alert
ZBI
Operating Temperature 40º to 105ºF (4.4º to 41ºC)
Storage Temperature -40º to 140ºF (-40º to 60ºC)
Operating Humidity 10% to 90% non-condensing R.H.
Storage Humidity 5% to 95% non-condensing R.H.
Emissions FCC Part 15, Subpart B, VCCI, C-Tick
Emissions and Susceptibility (CE): EN55022 Class-B, EN61000-3-2, EN61000-3-0 and EN55024, CCC, Wi-Fi®-certified

Properties

Properties Zebra GX430T GX43-102410-000
Description Label printer, Desktop, Thermal Transfer, USB Ethernet USB-B, 203dpi, Max Media Width 4.0-4.9 inch
Product Family GX400 Series
Product Type Label Printer
Standard Features Print methods: Thermal transfer
ZPL programming language EPL programming language
Dual-wall frame construction
Tool-less printhead and platen replacement
OpenACCESS for easy media loading
Quick and easy ribbon loading
Simplified calibration of media
ENERGY STAR® qualified
Connectivity USB v1.1, Serial, Parallel (Standard)
Ethernet or 802.11b/g or Bluetooth 2.0 (Optional, replaces parallel port)
Printing Thermal transfer printing
Resolution 300 dpi/12 dots per mm
Dimensions (W x H x D) 7.6 x 7.5 x 10.0 in. (193 mm x 191 mm x 254 mm)
Weight 4.6 lbs/2.1 kg
Power Auto-detectable (PFC Compliant) 100-240VAV,
50-60Hz
