Description

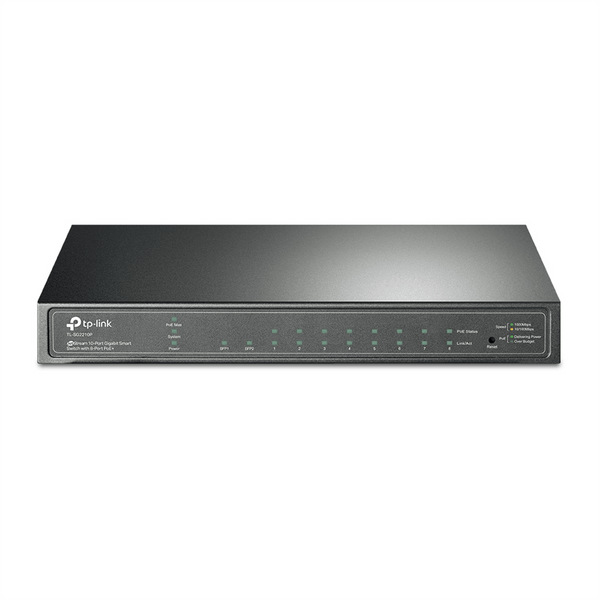

TP-Link TL-SG2210P JetStream Gigabit Smart Switch 8xGE PoE+

The TP-Link TL-SG2210P is a managed 10-port Gigabit smart switch engineered to support high-performance networks in compact setups. It features 8 PoE+ RJ45 ports and 2 SFP uplink slots, delivering a total PoE power budget of 61W—enough to power wireless access points, IP phones, and surveillance cameras. Integrated with the Omada Software Defined Networking (SDN) platform, this switch offers centralized cloud-based management, zero-touch provisioning, and intelligent monitoring through the Omada app or controller. Its fanless design ensures silent operation, while advanced Layer 2 and Layer 3 features like VLANs, ACLs, and static routing enhance security and traffic efficiency for growing networks.

Key Features:

• 8 PoE+ Ports: Compliant with IEEE 802.3af/at standards, delivering up to 30W per port with a total PoE budget of 61W.
• High-Speed Connectivity: 8 Gigabit RJ45 ports + 2 SFP slots for uplink or fiber backbone applications.
• Omada SDN Integration: Centralized cloud management with remote monitoring and Zero-Touch Provisioning via Omada controllers.
• Layer 2+/L3 Lite Features: Supports Static Routing, DHCP Server/Relay, VLAN, QoS, and IGMP Snooping.
• Security Suite: Includes IP-MAC-Port Binding, 802.1X authentication, DoS Defense, DHCP Snooping, and Access Control Lists.
• Fanless Design: Silent and reliable operation in noise-sensitive environments.
• Flexible Deployment: Compact metal housing supports desktop or wall mounting.

Technical Specifications:

• Ports: 8× 10/100/1000 Mbps PoE+ RJ45, 2× 100/1000 Mbps SFP slots
• PoE Standard: IEEE 802.3af/at
• PoE Budget: 61W total
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9 KB
• Power Supply: External 53.5VDC/1.31A adapter
• Max Power Consumption: 77.8W (with full PoE load)
• Dimensions: 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in)
• Cooling: Fanless
• Mounting: Desktop or wall-mountable
• Operating Temperature: 0–40°C (32–104°F)
• Certifications: CE, FCC, RoHS
