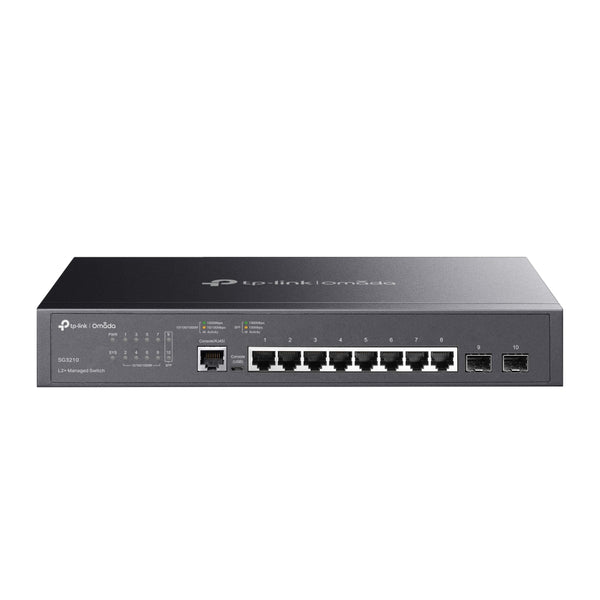

TP-Link Omada SG3210 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

High-Efficiency Switching with Omada Cloud Control

The TP-Link Omada SG3210 delivers reliable gigabit connectivity with advanced Layer 2+ features. Designed for modern business networks, it combines cloud-managed scalability with robust security and silent operation, making it ideal for office and SMB deployments.

Key Benefits & Features

• Versatile Connectivity: 8× Gigabit RJ45 ports plus 2× Gigabit SFP slots ensure flexible uplinks and smooth data transfer.
• Advanced L2+ Routing: Supports 48 static IPv4/IPv6 routes for efficient internal traffic management and optimized performance.
• Enterprise Security: Includes ACL, 802.1X (port/MAC), IP-MAC-Port binding, and DoS defense to safeguard network integrity.
• Silent Fanless Design: Fanless architecture ensures noise-free operation, perfect for office environments.
• Omada SDN Integration: Centralized cloud-based management with zero-touch provisioning simplifies deployment and monitoring.

Ideal Use Cases

• SMB offices needing reliable Layer 2+ switching with security and QoS
• Branch networks requiring cloud-managed centralized control
• Quiet workspaces that benefit from fanless, silent hardware
• Businesses deploying VLAN segmentation for voice, video, and data

Technical Specifications

• Ports: 8× 10/100/1000 Mbps RJ45, 2× 100/1000 Mbps SFP
• Console Ports: 1× RJ45, 1× Micro-USB
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.89 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9 KB
• Power Supply: 100–240 V AC, 50/60 Hz
• Max Power Consumption: 6.84 W
• Dimensions: 294 × 180 × 44 mm
• Mounting: Rack-mountable or desktop

Upgrade Your Network Today

Enhance business performance with the TP-Link SG3210 Omada Managed Switch. Order now and build a secure, high-speed, and scalable network.

Model	TP-Link SG3210
Product Type	Omada L2+ Managed Switch
Ports	8× Gigabit RJ45 ports, 2× Gigabit SFP slots
Console Ports	1× RJ45, 1× Micro-USB
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.89 Mpps
MAC Address Table	8K entries
Packet Buffer Memory	4.1 MB
Jumbo Frame	9 KB
Fan Quantity	Fanless (silent operation)
Power Supply	100–240 V AC, 50/60 Hz
Max. Power Consumption	6.84 W (220 V/50 Hz)
Max. Heat Dissipation	23.33 BTU/h (220 V/50 Hz)
Mounting	Rack mountable / Desktop
Physical Security	Lock supported
Dimensions (W × D × H)	294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
Weight	2.2 lb
Operating Temperature	0–45 °C (32–113 °F)
Storage Temperature	−40–70 °C (−40–158 °F)
Operating Humidity	10–90% RH non-condensing
Storage Humidity	5–90% RH non-condensing

QoS Features	8 priority queues; 802.1p CoS/DSCP; Queue scheduling (SP, WRR, SP+WRR); Bandwidth control (port/flow rate limiting); QoS remark
L2 & L2+ Features	32 IPv4/IPv6 interfaces; 48 static routes; ARP (128 static, 316 entries; Proxy & Gratuitous); DHCP server/relay; Link aggregation; STP; Loopback detection; 802.3x flow control; Port mirroring
L2 Multicast	512 IGMP groups; IGMP/MLD snooping; IGMP authentication; Multicast VLAN Registration (MVR); Multicast filtering (256 profiles, 16 entries each)
ISP Features	L2PT, DLDP, PPPoE ID insertion, ERPS, 802.3ah OAM, DDM (standalone mode only)
VLAN	Up to 4K VLAN groups; 802.1Q VLAN; MAC VLAN (12 entries); Protocol VLAN (16 templates); Private VLAN; GVRP; QinQ (port-based & selective); Voice VLAN
Access Control	Time-based ACL; MAC/IP/IPv6/Combined ACL; Packet content ACL; Mirroring, redirect, rate limit, QoS remark; ACL applied per port/VLAN
Security	IP-MAC-Port Binding (512); DHCP snooping; ARP inspection; IPv4/IPv6 Source Guard; DoS defense; DHCP filter; Port security (64 MAC per port); Storm control; 802.1X (port/MAC, VLAN, guest VLAN, RADIUS); AAA/TACACS+; HTTPS/SSL, SSH CLI
IPv6 Features	Dual stack IPv4/IPv6; Static IPv6 routing; MLD snooping; IPv6 ACL; ND; ICMPv6; TCPv6/UDPv6; DHCPv6 client; IPv6 SNMP, SSH, SSL, TFTP
Management	Omada app with Controller; Cloud/Hardware/Software Controller; Zero-Touch Provisioning; Web GUI; CLI; SNMP v1/v2c/v3; RMON; LLDP/LLDP-MED; DHCP AutoInstall; Dual image/config; CPU monitoring; Cable diagnostics; EEE; System log
Certifications	CE, FCC, RoHS

Included

SG3210 Switch; Power cord; Quick Installation Guide; Rackmount kit; Rubber feet
