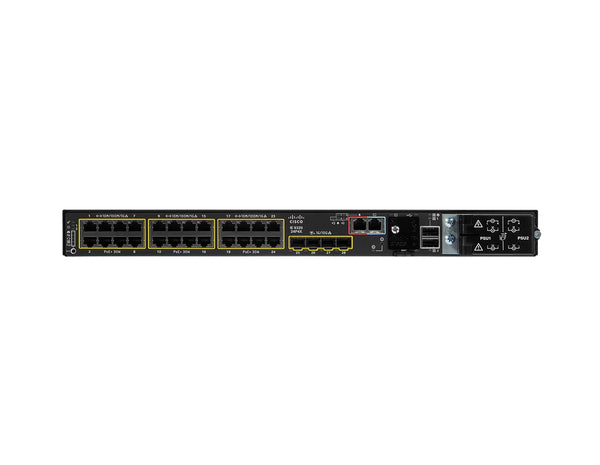

Cisco Catalyst IE-9320-24P4X-E Rugged Ethernet Switch 24-Port PoE+

Name: Cisco Catalyst IE-9320-24P4X-E Rugged Ethernet Switch 24-Port PoE+
Brand: Cisco
SKU: IE-9320-24P4X-E-NEW
Price: 7663.36 USD
Availability: InStock

Part Number: IE-9320-24P4X-E

Technical Details

24x 1G PoE+ ports, 4x 10G SFP+ uplinks, Layer 2/3 managed, 128 Gbps switching, -40°C to 75°C rugged

$17,821.77

$7,663.36

57% OFF

You Save: $10,158.41

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Rugged Performance for Demanding Industrial Networks

The Cisco Catalyst IE-9320-24P4X-E is a high-density rugged Ethernet switch purpose-built for critical industrial and extended enterprise deployments. With 24 PoE+ ports and four 10G SFP+ uplinks, it delivers secure, resilient connectivity in environments ranging from manufacturing and energy to transportation and smart cities. Designed to operate between -40°C and 75°C, it ensures reliability even in the harshest conditions.

Key Benefits & Features

High-density connectivity: 24 Gigabit PoE+ ports and 4x 10G SFP+ uplinks support high-bandwidth devices and traffic aggregation.
Industrial-grade resilience: Fanless, shock and vibration hardened design with redundant power options for nonstop operation.
Advanced security: Cisco Trust Anchor, MACsec-128 (Adv: 256) and Cisco Cyber Vision support for real-time asset visibility.
Optimized PoE support: Up to 720W PoE budget with perpetual and fast PoE for uninterrupted power to critical endpoints.
Flexible management: Managed via Cisco IOS XE, Catalyst Center, and a simplified WebUI for streamlined deployment.

Ideal Use Cases

Smart city and transportation infrastructure requiring ruggedized PoE switches
Energy and utility substations with strict reliability and compliance needs
Industrial automation, mining, and manufacturing environments
Outdoor surveillance with PoE-powered UHD IP cameras
Secure OT/IT network convergence with advanced segmentation

Technical Specifications

Ports: 24x 10/100/1000 PoE+ RJ-45, 4x 1/10G SFP+ uplinks
Switching Capacity: 128 Gbps; Forwarding bandwidth: 64 Gbps; Forwarding rate: 95.23 Mpps
PoE Budget: Up to 720W with dual 400W supplies
Memory: 4 GB DRAM, 8 GB flash
MTBF: 489,710 hours
Operating Temp: -40°C to 75°C (-40°F to 167°F)
Redundancy: Dual AC/DC PSU support (1+1)
Form Factor: 1RU rack-mountable, fanless design
Software: Cisco IOS XE with Network Essentials

Deploy Industrial-Grade Switching Today

Upgrade your industrial network with the Cisco IE-9320-24P4X-E for resilient, high-performance connectivity. Order now to secure your infrastructure.

Properties

Model	Cisco Catalyst IE-9320-24P4X-E
Product Type	Managed Industrial Ethernet Switch
Ports	24 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit SFP+ uplink
Switching Bandwidth	128 Gbps (full duplex)
Forwarding Rate	95.23 Mpps
MAC Address Table Size	24,000 entries
PoE Capability	IEEE 802.3af/at/bt, Perpetual and Fast PoE support
PoE Power Budget	Up to 720 W with dual 400 W PSUs
Memory	4 GB DRAM; 8 GB Flash
Removable Storage	USB 2.0, SD card slot
Redundant Power Supply	Supported (1+1)
Operating Temperature	-40 °C to 75 °C (-40 °F to 167 °F)
MTBF	489,710 hours
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in (43.7 × 444.5 × 355.6 mm) with 150 W PSUs; 15.18 in depth with 250 W PSU; 15.57 in with 400 W PSU
Weight	9.7 lb (4.4 kg)
Form Factor	Rack-mountable, 1 RU
Compliance	EN 50121-4, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201

Specifications

Switching Type	Gigabit Ethernet with 10G uplinks
Software Image	Cisco IOS XE; Network Essentials (default), Network Advantage (optional)
Layer Support	Layer 2 and Layer 3
Routing Protocols	Static, OSPF/OSPFv3, RIP, Policy-Based Routing; Network Advantage adds BGP, EIGRP, IS-IS, HSRP
Security Features	802.1X, MACsec-128 (Adv: MACsec-256), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, AAA, RADIUS, TACACS+, TrustSec
Quality of Service	802.1p, DSCP, priority queuing, policing, shaping, AutoQoS
High Availability	REP, EtherChannel, StackWise support (up to 4 members)
Industrial Protocols	PROFINET, EtherNet/IP (CIP), PTP (IEEE 1588v2)
Management	WebUI, CLI, SNMPv1/v2/v3, NETCONF, RESTCONF, Cisco Catalyst Center
Certifications	EN 55032 Class A, FCC Part 15 Class A, UL 121201, IEC 61850-3, IEEE 1613
Ingress Protection	IP30 (EN 60529)
Relative Humidity	5% – 95% non-condensing

Accessories

Included	Documentation
Optional – Power Supplies	PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W), PWR-RGD-LOW-DC-H (150W DC)
Optional – Memory	SD-IE-16GB= (16 GB SD card)
Optional – Cables	CAB-STK-0.5M= (0.5 m Stack cable); CAB-STK-1M= (1 m Stack cable)
Optional – Mounting Kits	RM-RGD-19IN= (19” rack-mount kit); RM-RGD-23IN= (23” NEBS rack-mount kit); RM-RGD-ETSI= (ETSI rack-mount kit)
