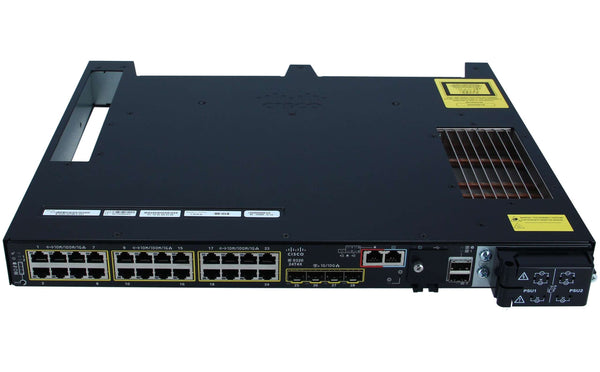

Cisco IE-9320-24P4S-E Catalyst Industrial Switch 24xGE PoE+ 4xSFP

The Cisco Catalyst IE-9320-24P4S-E is a powerful 1RU rack-mount industrial Ethernet switch designed for high-density Gigabit connectivity in rugged, mission-critical applications. With 24 Gigabit PoE+ ports and 4 Gigabit SFP uplinks, this switch supports IEEE 802.3af/at PoE with a power budget of up to 370W (with dual power supplies). Engineered for extreme environments, it operates reliably in temperatures ranging from -40°C to 75°C and is hardened against shock, vibration, and electrical noise.

The IE-9320-24P4S-E runs on Cisco IOS XE with built-in security and trust features, such as Secure Boot and the Trust Anchor module. It supports Layer 2 switching, static routing, advanced QoS, and multiple industrial automation protocols including PROFINET and EtherNet/IP. Integrated into Cisco’s Catalyst Center and WebUI, this switch offers Zero-Touch Provisioning, full visibility with Flexible NetFlow, and centralized management capabilities.

Key Features:

• Industrial-Grade Design: Fanless, convection-cooled switch designed for -40°C to 75°C operating range.
• 24 x Gigabit PoE+ Ports: Supports IEEE 802.3af/at standards with fast and perpetual PoE functionality.
• 4 x SFP Uplinks: Provides reliable fiber uplinks for extended distance connectivity.
• PoE Power Budget: Up to 370W with dual 400W power supplies, ideal for IP cameras, access points, and industrial devices.
• Security & Trust: Includes Secure Boot, MACsec, 802.1X authentication, and advanced ACLs.
• Cloud & Local Management: Manage through Cisco Catalyst Center or modern WebUI interface.
• Advanced Networking: Static routing, VLANs, REP, MRP, IGMP snooping, DHCP snooping, QoS, and more.
• Resiliency Options: Dual AC/DC power inputs, REP ring support, and industrial redundancy protocols.

Technical Specifications:

• Ports: 24 × 10/100/1000 Mbps PoE+ RJ45, 4 × 1G SFP
• Switching Capacity: 56 Gbps
• Forwarding Rate: 28 Gbps (line-rate)
• PoE Standards: IEEE 802.3af, 802.3at
• Max PoE Budget: Up to 370W (with dual 400W PSUs)
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Power Input: Dual AC/DC options (PWR-RGD-AC-DC or PWR-RGD-400)
• Memory: 4 GB DRAM, 8 GB Flash
• Dimensions: 1.72 x 17.5 x 15.57 in
• Weight: 9.7 lb (4.4 kg)
• Mounting: 19" Rack-mountable
• Compliance: EN 61000, IEC 61850-3, IEEE 1588v2, UL/CSA 61010-2-201
• Software License: Network Essentials
