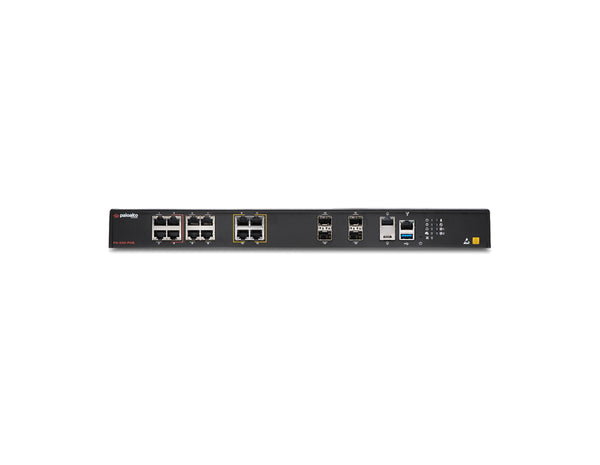

Palo Alto Networks PA-545-PoE Next-Generation Firewall 5 Gbps

Enterprise-Grade Security Meets Edge Simplicity

The Palo Alto Networks PA-545-PoE delivers advanced next-generation firewall performance with integrated Power over Ethernet (PoE) for branch offices and midsize enterprises. Built on the powerful Strata™ platform and driven by Precision AI®, it combines real-time threat prevention, streamlined Zero Touch Provisioning (ZTP), and energy-efficient operation in a single 1RU appliance.

Key Benefits & Features

AI-Driven Threat Prevention

Powered by Precision AI®, the PA-545-PoE analyzes and blocks zero-day malware, ransomware, and phishing attempts with inline signatureless attack prevention, stopping file-based attacks and never-before-seen threats. With 3 Gbps threat prevention throughput, it safeguards users, applications, and data across hybrid environments.

High-Performance, PoE-Enabled Connectivity

Delivering up to 5 Gbps firewall throughput and a total PoE budget of 181 W across four ports (max 90 W each), the PA-545-PoE consolidates security and power for IP phones, cameras, and access points—ideal for distributed sites.

Zero Touch Provisioning & Unified Management

Deployment is effortless with Zero Touch Provisioning (ZTP) and centralized visibility through Strata Cloud Manager. Manage firewalls, SD-WAN, and SASE environments under one unified, AI-powered console.

Quantum-Ready Encryption & SSL/TLS Inspection

Future-proof your network with post-quantum cryptography (PQC) support for SSL/TLS and VPNs, while maintaining visibility into encrypted traffic without performance compromise.

Energy-Efficient and Silent Operation

Designed for office and retail deployments, the PA-545-PoE features passive cooling and efficient 336 W max power draw (including PoE), ensuring low noise and operational reliability.

Ideal Use Cases

• Enterprise branch and retail edge sites needing unified NGFW + PoE connectivity
• Mid-market organizations deploying secure SD-WAN with integrated policy control
• IoT-rich environments powering PoE endpoints under a single security platform
• IT teams pursuing zero-touch, AI-assisted management at the edge

Technical Specifications

• Firewall Throughput (AppMix): 5.0 Gbps
• Threat Prevention Throughput: 3.0 Gbps
• IPsec VPN Throughput: 3.0 Gbps
• Max Concurrent Sessions: 298,000
• New Sessions per Second: 55,000
• Virtual Systems (Base/Max): 1 / 2
• Interfaces: 8 × 1 G RJ45, 4 × 1 G / 2.5 G PoE, 4 × 1 G SFP
• PoE Budget: 181 W (90 W max per port)
• Storage: 120 GB SSD with TPM security
• Cooling: Passive (fanless)
• Dimensions: 1.75″ H × 12.6″ D × 16.1″ W / 13.5 lbs
• Power: 336 W max (6 A @ 54 VDC)
• Certifications: FCC Class A, CE Class A, VCCI Class A
• Operating Temperature: 32°F – 104°F (0°C – 40°C)

Secure. Scalable. Ready for the Future.

Protect your distributed edge with the PA-545-PoE NGFW, the perfect balance of performance, AI-driven defense, and integrated PoE flexibility.

Model	PA-545-POE
Product Type	Next-Generation Firewall (NGFW)
Firewall Throughput (Appmix)	5.0 Gbps
Threat Prevention Throughput (Appmix)	3.0 Gbps
IPsec VPN Throughput	3.0 Gbps
Max Concurrent Sessions	298K
New Sessions per Second	55K
Virtual Systems (Base / Max)	1 / 2
Interfaces (Data)	1G RJ45 (8); 1G/2.5G RJ45 PoE (4); 1G SFP (4)
Management I/O	10/100/1000 Mgmt (1); USB (1); RJ45 Console (1); USB-C Console (1)
Storage Capacity	120 GB
PoE	Total budget 181 W; PoE ports 4; up to 90 W per port
Max Power Consumption	336 W (with 181 W PoE output)
Max Heat (BTU/hr)	1145 (with 181 W PoE output)
Input Voltage / Frequency	100–240 VAC, 50–60 Hz
Max Current Consumption	6 A @ 54 VDC
Dimensions (H × D × W)	1.75″ H × 12.6″ D × 16.1″ W (43.9 mm H × 314 mm D × 409 mm W)
Weight (Standalone / As Shipped)	13.5 lb / 19.8 lb
Operating Temperature	0–40 °C (32–104 °F)
Non-operating Temperature	−20–70 °C (−4–158 °F)
Cooling	Passive
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A

Interface Modes	L2, L3, TAP, Virtual Wire (transparent)
Routing	OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server; PPPoE and DHCP clients
Multicast	PIM-SM, PIM-SSM, IGMPv2/v3
Advanced SD-WAN	Path quality measurement, bandwidth monitoring, manual key/IKEv1/IKEv2, post-quantum PPK, multi-VR/LR, Prisma Access Hub, ADEM
IPv6	Dual-stack and IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server
IPsec / SSL VPN	Key exchange: Manual, IKEv1, IKEv2; Encryption: 3DES, AES-128/192/256; Auth: MD5, SHA-1/256/384/512; GlobalProtect gateway and portals*
TLS/Decryption (Overview)	Inspection of SSL/TLS including TLS 1.3; classic key exchanges (RSA, ECDHE, DHE) and post-quantum ML-KEM/HQC supported
Management & Operations	Strata Cloud Manager with AI-assisted operations and best-practice recommendations

Compatible Power Adapters	PAN-PWR-350W-54V-AC-A (spare power adapter)
Rack Mount Options	PAN-1RU-4POST-RACK-12 (1RU 4-post rack for one PA-545-POE and two power adapters)
