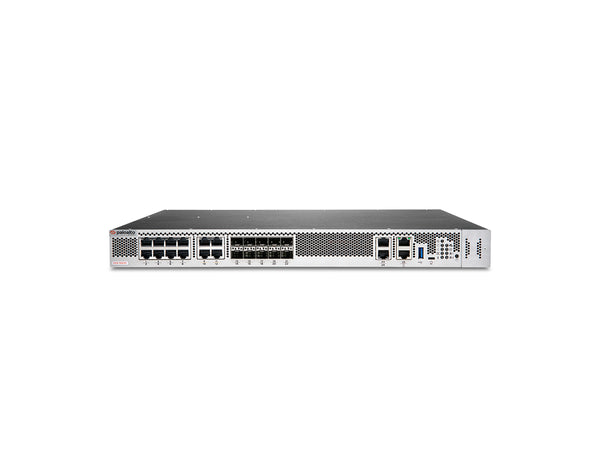

Palo Alto ION 9200 Secure SD-WAN Edge Appliance

High-Performance SD-WAN for Enterprise Demands

The Palo Alto Networks ION 9200 is designed for enterprises, large campuses, and data centers that require robust throughput, reliable uptime, and scalable performance. It offers multi-gigabit capacity, versatile port options, and enterprise-grade redundancy, ensuring dependable, high-speed connectivity for critical operations.

Key Benefits & Features

• Flexible Multi-Speed Connectivity: 22 Ethernet ports including 11 x 1G RJ-45, 10 x 10G/1G SFP+, and 4 x Multi-Gigabit PoE++ ports delivering up to 90W per port (150W total).
• Enterprise-Grade Performance: 64GB memory with 480GB internal and 480GB field-replaceable NVMe SSD for high-demand SD-WAN functions.
• Advanced PoE++ Capability: Ports 9–12 power devices like access points, cameras, and VoIP systems directly.
• Operational Efficiency: Forced-air cooling with four fans and compliance with IEC 62368-1, FCC & CE Class A, TEC, and KCC standards.

Ideal Use Cases

• Large enterprises managing multiple WAN uplinks and network segmentation
• Campus networks requiring PoE++ for connected devices
• Data centers needing high-port-density SD-WAN with redundant power

Technical Specifications

• Ports: 11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x 1G/2.5G/5G PoE++
• PoE Budget: 150W total, 90W max per port
• Storage: 480GB internal NVMe SSD + 480GB field-replaceable NVMe SSD
• Memory: 64GB
• Power Supply: Dual 450W AC (hot-swappable)
• Cooling: Forced air, 4 fans, front-to-rear airflow
• Dimensions: 14.15” x 17.15” x 1.70”
• Weight: 15.5 lbs
• Mounting: Four-post rack mount

Drive Your Network Forward Today

Upgrade your network edge with the Palo Alto Networks ION 9200 for speed, resilience, and intelligent routing. Order now to optimize your enterprise SD-WAN performance.

Brand	Palo Alto Networks
Model	ION 9200
Product Type	Prisma SD-WAN Data Center Appliance
Form Factor	1U Rack-mount
Rack Mount Dimensions (H x D x W)	1.70" x 17.15" x 14.15"
Weight	15.5 lbs (7.03 kg)
Cooling	Front-to-rear airflow, 4 x fans

Console Ports	1 x RJ-45 UART, 1 x Micro USB Type-B
WAN/LAN Ports	11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x MGig 1G/2.5G/5G PoE++
USB Ports	1 x Type-A
Bypass Ports	Ports 1–8 (4 pairs) – 1G RJ-45
PoE Ports	Ports 9–12, MGig ports, 150W total system, max 90W per port
SFP+ Ports	Ports 13–22, 10G/1G
Flash Storage	480GB Internal + 480GB External (field-replaceable NVMe SSD)
Memory	64GB
Power Supply	2 x 450W AC (100–240V, 50–60Hz), hot-swappable, redundant
Certifications	IEC 62368-1, cTUVus, FCC & CE Class A, TEC, KCC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	5%–90% non-condensing
Storage Humidity	5%–95% non-condensing
Mounting Options	Four-post rack mount

Rack Mount Kit	Included in the box
Mounting Brackets (Adjustable, Left & Right)	Included in the box
Rear Support Brackets	Included in the box
Power Cords	2 x AC power cords (region-specific)
Shielded Ethernet Cable	1 x RJ-45 CAT6
Rack-Mount Screws	13 x #6-32 x 5/16”, 9 x #10-32 x 3/4”, 9 x #12-24 x 1/2”
Nut Cages	8 x #10-32
Documentation	End User License Agreement
