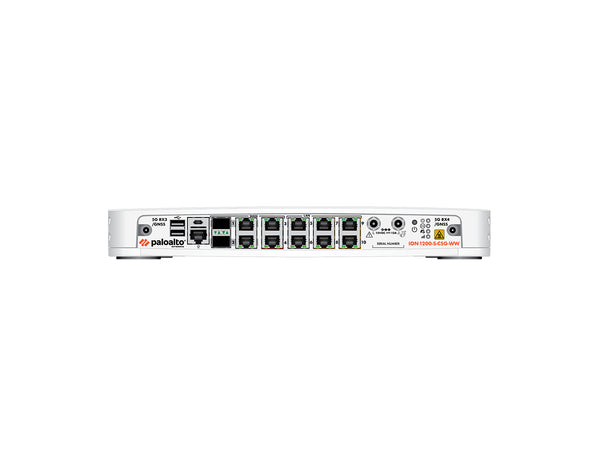

Palo Alto ION 1200-S-C5G-WW SD-WAN Appliance

High-Performance SD-WAN for Agile Branch Connectivity

The ION 1200-S-C5G-WW is purpose-built for modern, high-velocity branch deployments where agility, 5G broadband, and LAN-side switching are critical. This compact appliance integrates mobile WAN, application-aware routing, and PoE++ into one fanless unit — eliminating the need for separate modems and switch hardware.

Key Benefits & Features

• Integrated 5G WAN with Dual SIM: Global 5G NR (n1–n79) support with failover for resilient, cable-free connectivity.
• Layer 2 PoE++ Switching: 6 RJ-45 LAN ports, 4 PoE-enabled with 90W total budget; one port supports up to 60W.
• Compact & Fanless Design: 1RU form factor suitable for desktop or rack-mount installations in noise-sensitive areas.
• Zero-Touch SD-WAN: Deploy faster with cloud-native Prisma SD-WAN and SLA-based path steering.
• Versatile Mounting & Power: Includes 150W AC adapter and 4 detachable antennas for wireless signal optimization.

Ideal Use Cases

• Retail or franchise networks needing fast, drop-in WAN connectivity
• Kiosks and ATMs using cellular as a primary or backup WAN
• Remote branches requiring integrated switching and PoE for IP endpoints
• Global enterprises seeking SD-WAN across diverse geographies

Technical Specifications

• WAN/LAN Ports: 2 × RJ-45/SFP combo, 2 × RJ-45 (bypass pair), 6 × RJ-45 Layer 2 (4 with PoE)
• PoE Budget: 90W total; up to 60W PoE++ (IEEE 802.3bt)
• Cellular Support: 5G NR Sub-6GHz (n1–n79), dual SIM
• Memory & Storage: 8GB RAM, 128GB eMMC
• Power: 150W AC Adapter (12VDC output)
• Temperature: 32–140°F (PoE disabled), 32–104°F (PoE enabled)
• Mounting: Desktop or rack-mount (1RU)
• Form Factor: Fanless; 13" x 9" x 1.73", 7.85 lbs
• Certifications: FCC, CE, FIPS, RoHS, cTUVus, IEC 62368-1

Ready to Transform Your Branch Connectivity?

Empower your edge with the ION 1200-S-C5G-WW. Rapid deployment, cellular resilience, and integrated PoE switching — all in one device. Order now and modernize your WAN today.
