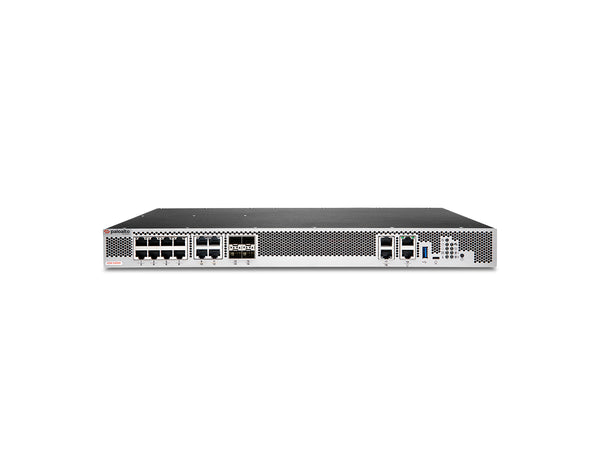

Palo Alto ION 5200 Secure SD-WAN Edge Appliance

High-Performance SD-WAN for Large Branches and Data Centers

The Palo Alto Networks ION 5200 is a next-generation Secure SD-WAN edge appliance engineered for enterprise-scale connectivity and application performance. Designed for rapid SASE deployment, it delivers optimized WAN traffic, secure cloud access, and simplified branch operations — all without the need for additional hardware.

Key Benefits & Features

• Multi-Gigabit PoE++: Four multi-gigabit 1G/2.5G RJ-45 PoE++ ports with up to 90W per port (150W total) for powering IP phones, cameras, APs, and gateways.
• High-Capacity SFP+ Uplinks: Four 10G/1G SFP+ ports ensure high-speed fiber connectivity for low-latency performance and scalable growth.
• Enterprise-Grade Performance: 32GB RAM and 240GB NVMe SSD enable up to 4Gbps encrypted throughput in data center mode.
• Resilient Power & Cooling: Dual hot-swappable 450W AC power supplies and front-to-rear cooling for uninterrupted operation.

Ideal Use Cases

• Large branch offices needing high-speed WAN & LAN with PoE support
• Data centers handling multi-gigabit traffic and advanced routing
• Multi-cloud deployments requiring optimized SaaS and IaaS access

Technical Specifications

• Form Factor: 1U rack-mountable
• Processor & Memory: 32GB RAM
• Storage: 240GB NVMe SSD
• Ethernet Ports: 11x 1G RJ-45, 4x 10G SFP+, 4x 1G/2.5G PoE++ RJ-45
• Bypass Ports: 4x RJ-45 (2 pairs)
• PoE Budget: 150W total, 90W max per port
• Throughput: Up to 4Gbps encrypted (data center) / 2Gbps encrypted (branch)
• Power Supply: Dual hot-swappable 450W AC
• Cooling: 4x front-to-rear fans
• Dimensions: 1.7”H x 17.1”W x 14.15”D
• Weight: 15.5 lbs

Upgrade Your Network Now

Empower your enterprise with secure, high-speed SD-WAN using the Palo Alto Networks ION 5200. Contact us today to place your order and accelerate your branch or data center transformation.
