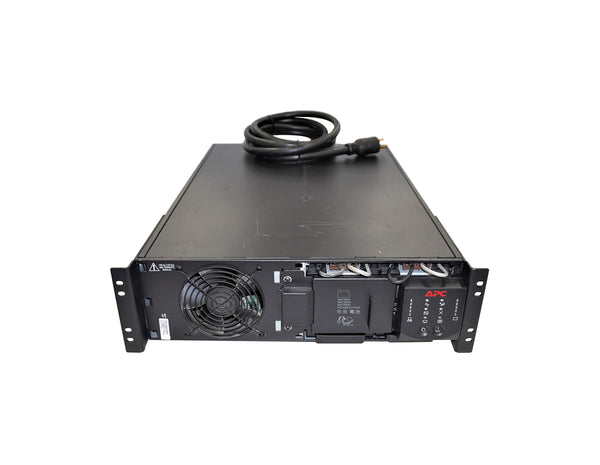

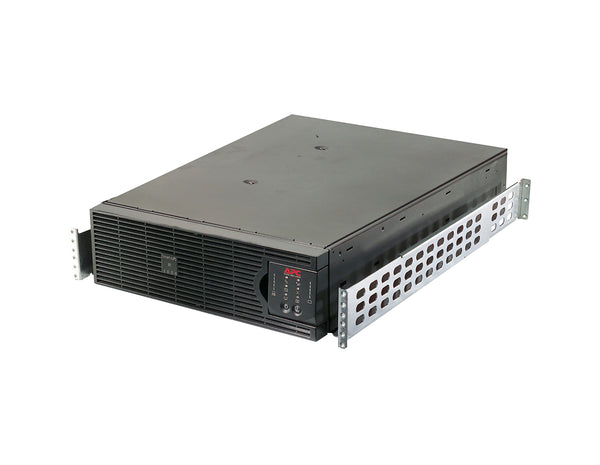

APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS

Overview

The APC Smart-UPS RT SURTD5000RMXLP3U delivers 5000VA / 4000W of true online double-conversion power in a compact 3U rack form. Featuring split-phase input with 208/240V conversion to 120V, it supports mixed equipment loads. With scalable runtime, internal bypass, and a pre-installed Network Management Card 2, it ensures maximum uptime and advanced power management for critical IT and network environments.

Key Features & Benefits

• Double-Conversion Online: Maintains pure sine wave output, filtering out power disturbances.
• Flexible Power Output: 208/240V input with split-phase conversion to 120V for diverse load compatibility.

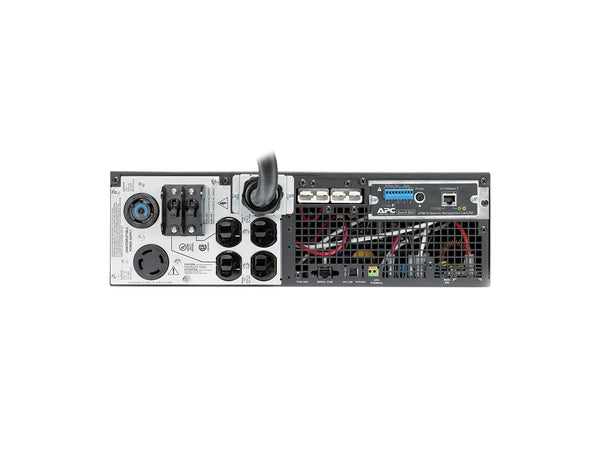

• Comprehensive Outlets: 4x NEMA 5-20R, 1x L6-30R, and 1x L14-30R for multiple device types.
• Scalable Runtime: Extendable with external battery modules for longer backup support.
• Embedded NMC 2: Provides environmental monitoring and remote network management.

Technical Deep Dive

The SURTD5000RMXLP3U employs double-conversion topology, converting AC to DC and back to AC, ensuring a clean and stable sine wave output. This isolates connected devices from surges, sags, and harmonics, providing continuous protection for sensitive loads.

Its split-phase design allows it to accept 208/240V input and provide both 208V and 120V outputs, enabling it to power diverse equipment within the same deployment. The UPS includes a 10 ft NEMA L14-30P input cable and multiple output receptacles, giving installation teams flexibility in connecting various IT and network hardware.

The pre-installed Network Management Card 2 supports secure remote monitoring and environmental data integration. Internal automatic/manual bypass ensures uptime during service or anomalies, while intelligent alarms help operators respond to issues promptly.

Ideal Applications

• Enterprise server racks and storage arrays
• Mixed-voltage network hardware deployments
• Healthcare and laboratory IT systems
• Industrial environments requiring split-phase power distribution

Frequently Asked Questions (FAQs)

Q1: How is the SURTD5000RMXLP3U installed?
A: It is a 3U rackmount UPS with support rails and removable feet. Input uses NEMA L14-30P, outputs include 4x 5-20R, 1x L6-30R, and 1x L14-30R.

Q2: What performance and runtime can I expect?
A: The UPS provides 5000VA / 4000W capacity. Runtime varies by load and can be extended with external battery modules.

Q3: How can the UPS be managed?
A: It includes a pre-installed Network Management Card 2 for remote management, environmental monitoring, and SNMP integration.

Brand	APC by Schneider Electric
Model	SURTD5000RMXLP3U
Product Type	Smart-UPS RT, Double Conversion
Form Factor	Rackmount 3U
Dimensions (H x W x D)	5.1" x 17.008" x 26.0" (130 x 432 x 660 mm)
Weight	128.0005 lb (58.06 kg)
Color	Black
Number of Rack Units	3U
Cable Length	10 ft (3.05 m)
Cooling	Not specified

Capacity	5000 VA / 4000 W
Input Voltage	208 V (other: 240 V) • Adjustable: 85–136 V / 156–236 V
Input Connection Type	NEMA L14-30P
Input Frequency	50/60 Hz ±5 Hz auto-sensing
Output Voltage	120 V, 208 V (other: 240 V)
Output Connections	4 × NEMA 5-20R, 1 × NEMA L6-30R, 1 × NEMA L14-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • 2 Battery Modules Included • Voltage: Not specified • Recharge: 2.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 382 W rated
Extendable Runtime	Yes
Surge Energy Rating	365 J
Acoustic Noise	55 dBA
Thermal Dissipation	1589 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	RS-232, EPO, Audible alarms, Pre-installed Network Management Card 2 with environmental monitoring
Certifications	CSA
Warranty	2 years repair or replace

Rack Mounting Support Rails	Included in the box
Removable Support Feet	Included in the box
RS-232 Cable	Included in the box
User Manual	Included in the box
CD with Software	Included in the box
Warranty Card	Not specified
