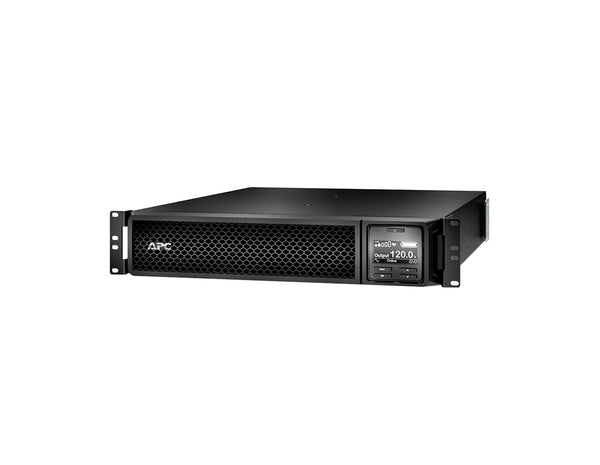

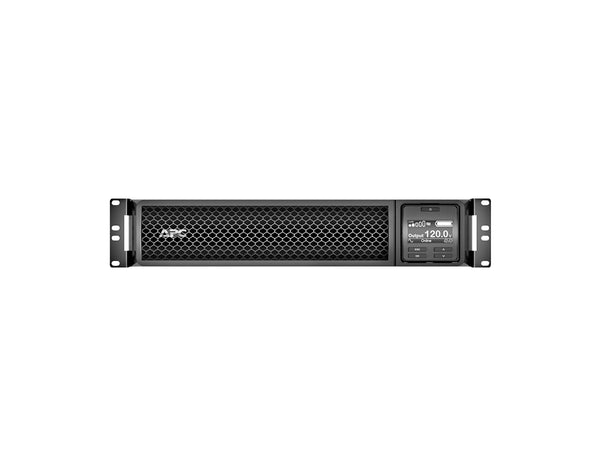

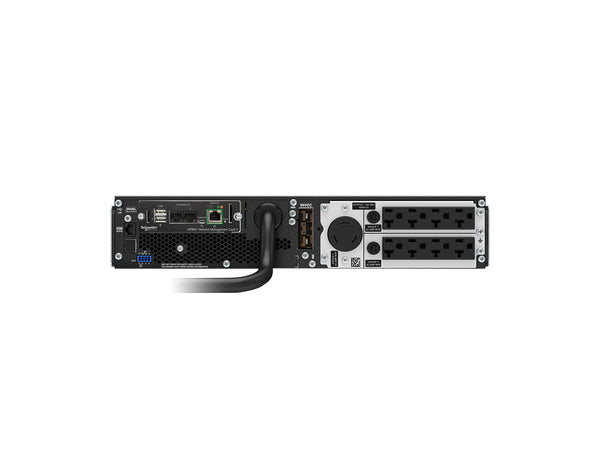

APC SRT3000RMXLA-NC - Smart-UPS On-Line 3kVA 2U Rackmount

Overview

The APC SRT3000RMXLA-NC is a high-density, double-conversion online UPS engineered for enterprise-grade reliability. Offering 3kVA/2700W of clean sine wave power, it protects servers, networking gear, and storage systems against outages and fluctuations. With scalable runtime, a 2U rackmount design, and a pre-installed Network Management Card, it ensures efficient power continuity with advanced remote monitoring.

Key Features & Benefits

• 3kVA / 2700W Capacity: Supports critical loads with continuous online protection.
• Double-Conversion Design: Ensures pure sine wave power independent of input fluctuations.
• 2U Rackmount Form Factor: Compact, high-density installation for enterprise racks.
• Versatile Outlet Set: 8× NEMA 5-20R + 1× NEMA L5-30R for mixed IT hardware.
• Status/Control Interface: Front-panel status and controls for quick system visibility.
• Pre-installed Network Card: NMC 3 with environmental monitoring provides remote management.

Technical Deep Dive

True Online Topology: The SRT3000RMXLA-NC uses double-conversion architecture, converting incoming AC to DC and back to AC, ensuring stable sine wave output regardless of input anomalies.

Power Quality & Performance: With less than 2% total harmonic distortion and a crest factor of 3:1, the UPS supports modern PFC power supplies while maintaining power integrity. Internal bypass (automatic and manual) enhances availability during maintenance or overload scenarios.

Runtime & Recharge: Equipped with a 96V lead-acid battery, it offers scalable runtime via external modules and recharges in approximately three hours.

Ideal Applications

• Enterprise data center servers and storage
• Core networking and telecom systems
• Healthcare and critical infrastructure environments
• Financial systems and branch office deployments

Frequently Asked Questions (FAQs)

Q1: How is the SRT3000RMXLA-NC installed?
A: It is a 2U rackmount UPS shipped with support rails and a front status/control interface for simplified deployment.

Q2: What performance should I expect?
A: Rated at 3000VA/2700W with sine wave output. Runtime depends on connected load and external battery options.

Q3: How can the unit be managed?
A: It includes a pre-installed Network Management Card 3 with environmental monitoring, plus EPO and USB for local and remote control.

Brand	APC by Schneider Electric
Model	SRT3000RMXLA-NC
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.0" x 25.0" (85 x 432 x 635 mm)
Weight	69 lb (31.3 kg)
Color	Black
Number of Rack Units	2U
Cable Length	8 ft (2.4 m)
Cooling	Not specified

Capacity	3000 VA / 2700 W
Input Voltage	120 V
Input Connection Type	NEMA L5-30P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V
Output Connections	8 × NEMA 5-20R, 1 × NEMA L5-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 96 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 151 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	805 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring
Certifications	ENERGY STAR V2.0 (USA)
Warranty	3 years repair or replace (UPS), 2 years (battery)

Warranty Card	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide
Network Management Card	Pre-installed in the unit
