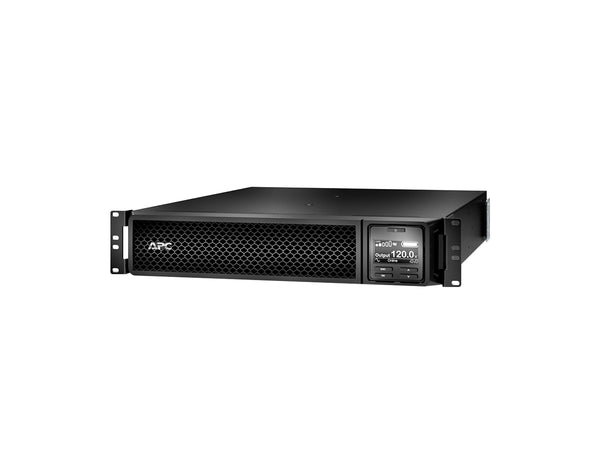

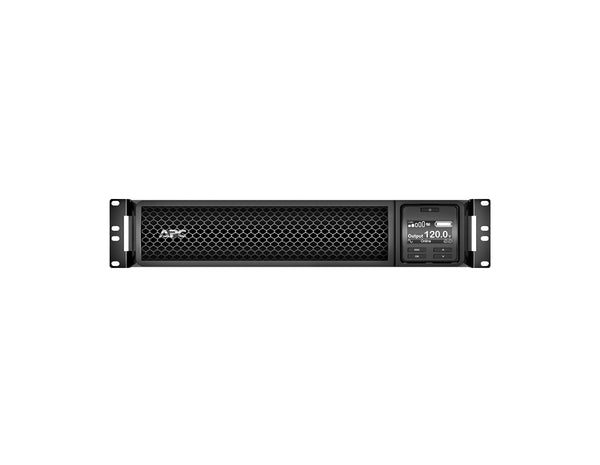

APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount

Overview

The APC SRT2200RMXLA-NC is a high-density Smart-UPS On-Line delivering 2200 VA / 1800 W of clean sine wave power in a compact 2U rackmount format. With true double-conversion topology, built-in bypass, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards servers, storage, and network hardware in demanding 120 V installations.

Key Features & Benefits

• Double-Conversion Online – Regenerates AC power to isolate loads from input anomalies for maximum uptime.
• 2200VA / 1800W Capacity – Supports critical IT and network devices with stable sine wave output.
• 2U Rackmount, 120 V – Space-efficient protection for standard North American racks.

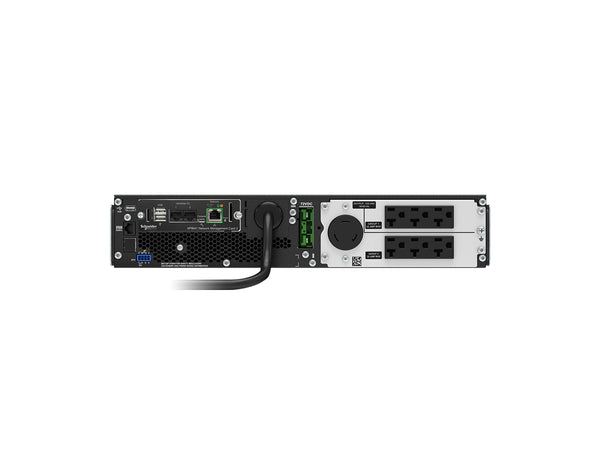

• Outlet Mix – 6× NEMA 5-20R plus 1× NEMA L5-20R for diverse equipment connections.
• Integrated Management – Pre-installed Network Management Card 3 enables secure remote monitoring with environmental data.
• Extendable Runtime – Supports up to 10 external battery packs for longer backup windows.

Technical Deep Dive

• Online Topology & Bypass: Incoming AC is converted to DC and back to AC, delivering a consistent sine wave independent of utility quality. A built-in bypass (automatic/manual) maintains power to loads during service or faults.
• Power Quality: Less than 2% harmonic distortion and a 3:1 crest factor support modern PFC power supplies without derating. Output is 50/60 Hz (±3 Hz) synchronized to mains.
• Battery System & Recharge: 72 V lead-acid battery, user-replaceable (APCRBC141), with typical 3-hour recharge; runtime is scalable via external battery cabinets.
• Environmental & Efficiency: ENERGY STAR® UPS V2.0, 55 dBA acoustic rating, and 535 BTU/h heat dissipation for predictable deployment in shared racks.

Ideal Applications

• Rack-mounted servers and storage arrays
• Core switches, routers, and security appliances
• Branch offices and network closets requiring 120 V
• Healthcare, retail, and financial IT where continuous power is critical

Frequently Asked Questions (FAQs)

Q1: How is the SRT2200RMXLA-NC installed?
A: It’s a 2U rackmount unit shipped with rack mounting hardware, brackets, and support rails for straightforward integration.

Q2: What performance can I expect?
A: The UPS is rated 2200 VA / 1800 W with sine wave output. Actual runtime depends on load and any external battery packs; consult APC runtime charts for detailed values.

Q3: How is it managed?
A: A pre-installed Network Management Card 3 provides remote Web/SNMP access and environmental monitoring; USB and EPO are also supported.

Brand	APC by Schneider Electric
Model	SRT2200RMXLA-NC
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.0" x 23.0" (85 x 432 x 584 mm)
Weight	55.1 lb (25 kg)
Color	Black
Number of Rack Units	2U
Cable Length	6 ft (1.8 m)
Cooling	Not specified

Capacity	2200 VA / 1800 W
Input Voltage	120 V
Input Connection Type	NEMA 5-20P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V
Output Connections	6 × NEMA 5-20R, 1 × NEMA L5-20R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	Not specified
Bypass Type	Built-in Bypass
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 72 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	535 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring
Certifications	ENERGY STAR V2.0 (USA)
Warranty	3 years repair or replace (UPS), 2 years (battery)

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
Network Management Card	Pre-installed in the unit
